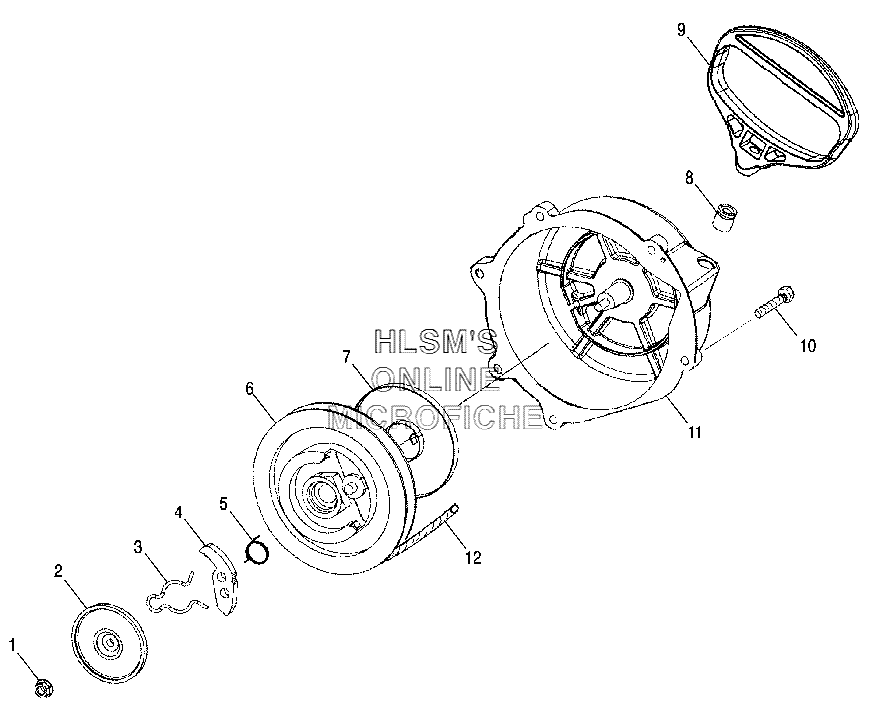

STARTER - RECOIL ASSEMBLY для Polaris 600 Edge Touring (S06NT6ES) - 2006 года выпуска
-
№АртикулНазвание
-
13040163 NUT, FLANGENUT, FLANGE
-
23040164 PLATE, FRICTIONPLATE, FRICTION
-
33040167 SPRING, FRICTIONSPRING, FRICTION
-
45246108 RATCHET-PAWL ELEC REVRATCHET-PAWL ELEC REV
-
53040166 SPRING, RETURNSPRING, RETURN
-
63040168 REELREEL
-
73040170 SPRING, SPIRALSPRING, SPIRAL
-
83040171 GUIDE-ROPEGUIDE-ROPE
-
95431499-070 HANDLE-RECOIL (BLACK)HANDLE-RECOIL (BLACK)
-
107516827 SCREWSCREW
-
115630645 RECOIL ASSY., ELECTRIC REVRECOIL ASSY., ELECTRIC REV
-
123040169 ROPE, STARTERROPE, STARTER
-
-1202298 RECOIL ELECTRIC REV ASSY (INCL. 1-7,11,12)RECOIL ELECTRIC REV ASSY (INCL. 1-7,11,12)
