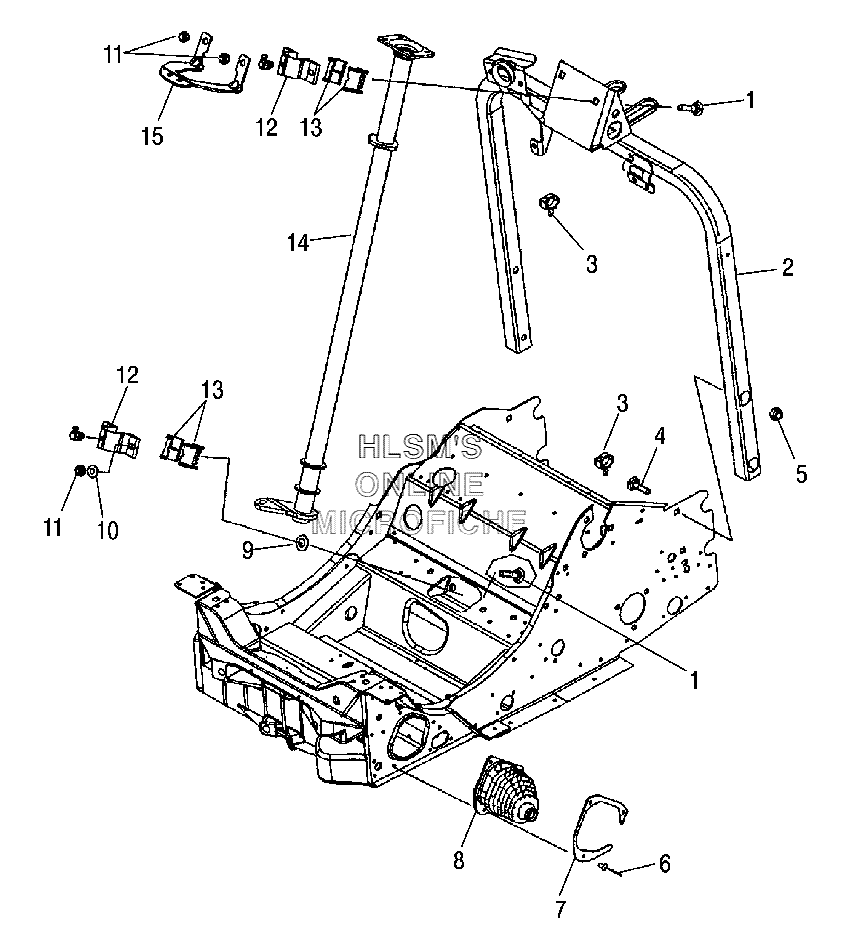

STEERING ASSEMBLY для Polaris 600 Edge Touring (S06NT6ES) - 2006 года выпуска
-
№АртикулНазвание
-
17517579 BOLT-CARRIERBOLT-CARRIER
-
21013804-067 WELD-HOOP, STEERING (BLACK)WELD-HOOP, STEERING (BLACK)
-
34020139 CLIP, ROSEBUDCLIP, ROSEBUD
-
47512377 BOLT, CARRIAGEBOLT, CARRIAGE
-
57542343 NUT, FLANGENUT, FLANGE
-
67621433 RIVETRIVET
-
75244470 PLATE, TIE ROD BOOTPLATE, TIE ROD BOOT
-
85433532 BOOT, TIE ROD (LEFT)BOOT, TIE ROD (LEFT)
-
85433533 BOOT, TIE ROD (RIGHT)BOOT, TIE ROD (RIGHT)
-
97547030 PALNUTPALNUT
-
107558402 WASHER, FLATWASHER, FLAT
-
117542324 NUT, NYLOKNUT, NYLOK
-
125133648 BRACKET-STEERING POSTBRACKET-STEERING POST
-
127080510 FITTING, ZERK, 90 DEGREEFITTING, ZERK, 90 DEGREE
-
135432785 BUSHINGBUSHING
-
141820965-067 WELD-POST, STEERING (BLACK)WELD-POST, STEERING (BLACK)
-
155245354 BRACKET-CONSOLE, FRONT NECK (STD)BRACKET-CONSOLE, FRONT NECK (STD)
