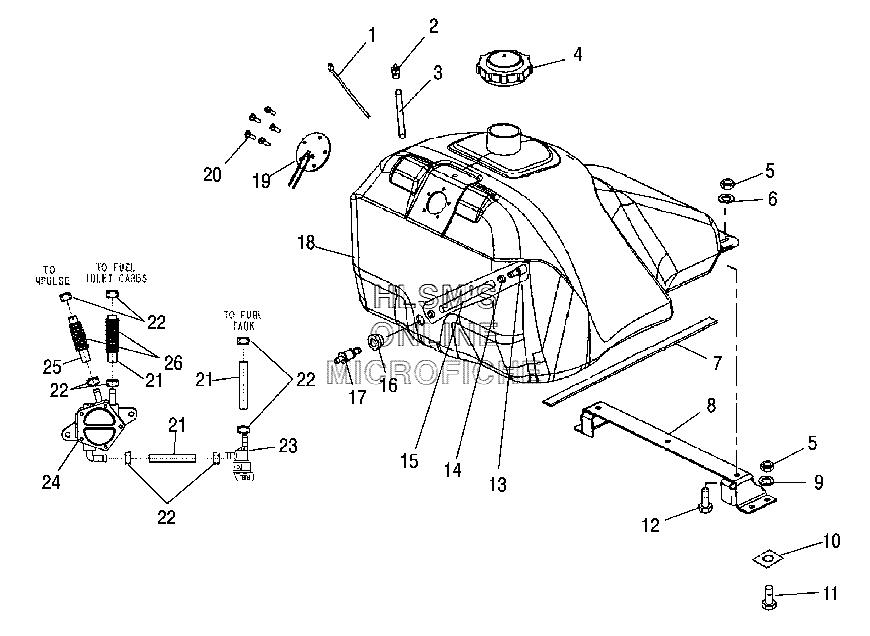

FUEL SYSTEM для Polaris 600 Edge Touring (S06NT6ES) - 2006 года выпуска

№

Артикул

Название
1

7080804 CABLE TIE-RELEASABLE, 5 1/2''

CABLE TIE-RELEASABLE, 5 1/2''

460 ₽
2

7052095 FITTING, 90 DEG 1/8

FITTING, 90 DEG 1/8

750 ₽
3

8450061-600 LINE, FUEL (3MMX7MM)

LINE, FUEL (3MMX7MM)

10 400 ₽
4

2511195-070 CAP ASSY, FUEL (BLACK)

CAP ASSY, FUEL (BLACK)

0 ₽
4

5810512 GASKET

GASKET

2 290 ₽
5

7542122 NUT-NYLOK

NUT-NYLOK

110 ₽
6

7555960 WASHER, FLAT

WASHER, FLAT

630 ₽
7

5810947 FOAM, SEAL

FOAM, SEAL

460 ₽
8

5246436-067 BRACKET-GASTANK (BLACK)

BRACKET-GASTANK (BLACK)

6 240 ₽
9

7555843 WASHER, WROUGHT

WASHER, WROUGHT

460 ₽
10

7670021 NUT, SPEED

NUT, SPEED

460 ₽
11

7515203 BOLT

BOLT

630 ₽
12

7512247 BOLT

BOLT

150 ₽
13

7052215 PICK-UP, FUEL W/MESH

PICK-UP, FUEL W/MESH

6 660 ₽
14

7080768 RING, COMPRESSION

RING, COMPRESSION

1 250 ₽
15

8350020-160 FUEL, LINE ETHER (3/8'')

FUEL, LINE ETHER (3/8'')

5 620 ₽
16

5435941 GROMMET-3/4''

GROMMET-3/4''

1 310 ₽
17

7052269 FITTING, 5/16''/ 3/8 STRAIGHT

FITTING, 5/16''/ 3/8 STRAIGHT

3 120 ₽
18

2520288 FUEL TANK ASSY (INCL. 2,13-20)

FUEL TANK ASSY (INCL. 2,13-20)

83 200 ₽
19

2410352 SENDER-FUEL, 12 GAL (LEFT)

SENDER-FUEL, 12 GAL (LEFT)

26 000 ₽
20

2410232 HARDWARE, SENDER (INCL. GASKET AND SCREWS)

HARDWARE, SENDER (INCL. GASKET AND SCREWS)

1 870 ₽
21

8350017-600 FUEL, LINE ETHER (5/16")

FUEL, LINE ETHER (5/16")

0 ₽
22

7080003 CLAMP, HOSE

CLAMP, HOSE

110 ₽
23

1253424 VALVE ASSY, FUEL PLASTIC

VALVE ASSY, FUEL PLASTIC

7 180 ₽
24

2520275 PUMP-FUEL 5/16 IN/OUT MIK

PUMP-FUEL 5/16 IN/OUT MIK

26 000 ₽
25

8450040-600 LINE FUEL (1/4 ID 600 CM.)

LINE FUEL (1/4 ID 600 CM.)

13 520 ₽
26

8360052-25 TUBING-CONVOLUTED (.50ID,25CM)

TUBING-CONVOLUTED (.50ID,25CM)

3 750 ₽
