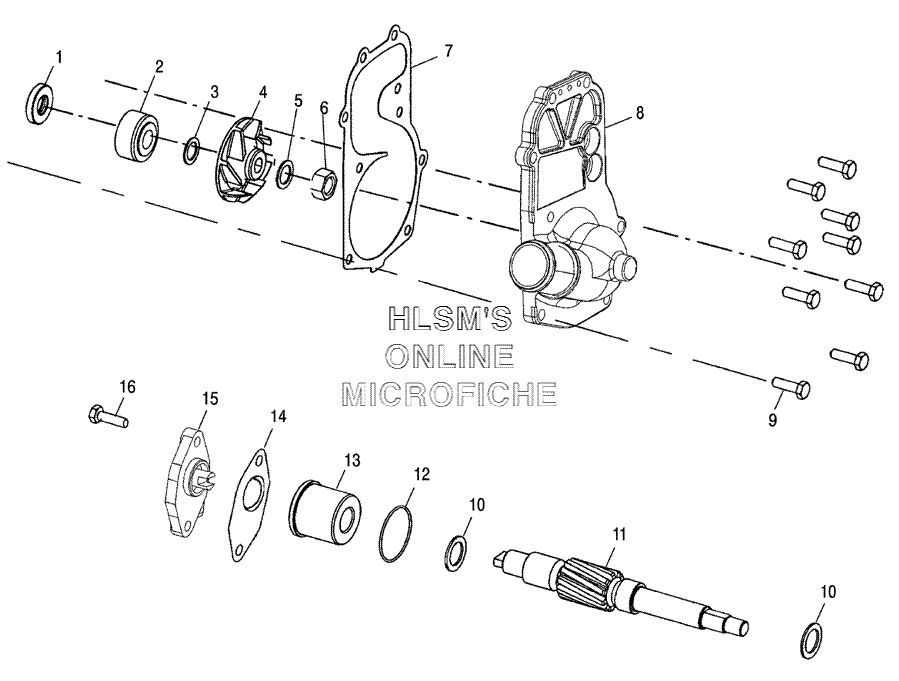

WATER PUMP/OIL PUMP для Polaris 440 IQ (S06MX4CS) - 2006 года выпуска
-
№АртикулНазвание
-
15411197 SEAL, TYPESEAL, TYPE
-
23610067 SEALSEAL
-
37556006 WASHER, FLATWASHER, FLAT
-
45432330 IMPELLERIMPELLER
-
57555874 WASHER, FLATWASHER, FLAT
-
67546804 NUT, HEX, , NYLOKNUT, HEX, , NYLOK
-
75811601 GASKET, WATERPUMP COVERGASKET, WATERPUMP COVER
-
85630920 COVER-WATERPUMP, HI FLOWCOVER-WATERPUMP, HI FLOW
-
97516822 SCREWSCREW
-
107555977 WASHER, THRUSTWASHER, THRUST
-
115133688 GEAR-CROSS SHAFTGEAR-CROSS SHAFT
-
125411196 O-RINGO-RING
-
135010391 BRNG, PUMP SHAFTBRNG, PUMP SHAFT
-
145811789 GASKETGASKET
-
155245940 COVER-CASE, OIL PUMPCOVER-CASE, OIL PUMP
