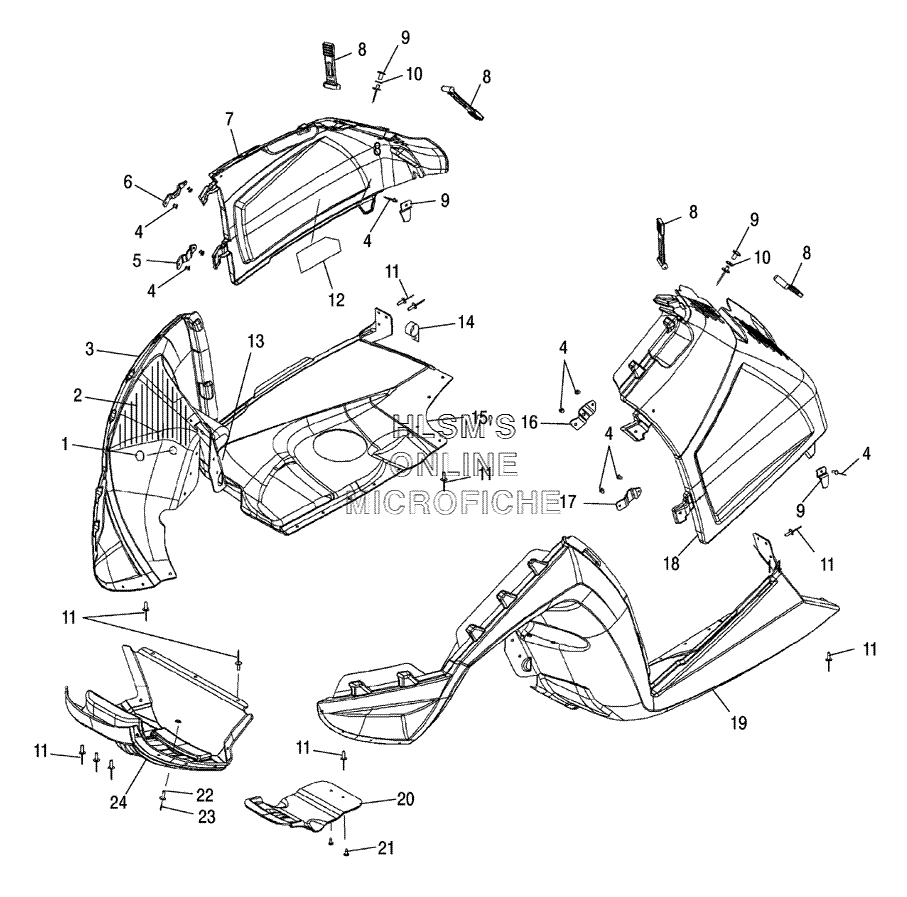

NOSEPAN AND SIDEPANELS для Polaris 440 IQ (S06MX4CS) - 2006 года выпуска
-
№АртикулНазвание
-
15410582 PLUG, CATCH HOLEPLUG, CATCH HOLE
-
25812838 FOIL-FENDER, LOWER (RIGHT)FOIL-FENDER, LOWER (RIGHT)
-
32633319-070 FENDER ASSY., W/FOIL (RIGHT/BLACK) (INCL. 4-6, 8-12)FENDER ASSY., W/FOIL (RIGHT/BLACK) (INCL. 4-6, 8-12)
-
47621472 RIVETRIVET
-
55248923 SUPPORT-SIDE PANEL (LOWER/RIGHT)SUPPORT-SIDE PANEL (LOWER/RIGHT)
-
65249036 SUPPORT-SIDE PANEL (UPPER/RIGHT)SUPPORT-SIDE PANEL (UPPER/RIGHT)
-
72633288-070 SIDE PANEL ASSY. (RIGHT/BLACK)SIDE PANEL ASSY. (RIGHT/BLACK)
-
85433150 STRAPSTRAP
-
91015421 RIVET/RETAINER ASSY.RIVET/RETAINER ASSY.
-
107555904 WASHERWASHER
-
117621467 RIVET, BLINDRIVET, BLIND
-
125812839 FOIL-SIDE PANEL (RIGHT)FOIL-SIDE PANEL (RIGHT)
-
135812837 FOIL-FENDER (UPPER/RIGHT)FOIL-FENDER (UPPER/RIGHT)
-
145249245 BRACKET-SIDE PANEL TABBRACKET-SIDE PANEL TAB
-
157080372 CLAMP, RETAINERCLAMP, RETAINER
-
165249035 SUPPORT-SIDE PANEL (UPPER/LEFT)SUPPORT-SIDE PANEL (UPPER/LEFT)
-
175248922 SUPPORT-SIDE PANEL (LOWER/LEFT)SUPPORT-SIDE PANEL (LOWER/LEFT)
-
182633287-070 SIDE PANEL ASSY. (LEFT/BLACK) (INCL. 4, 8, 9, 16, 17, 18)SIDE PANEL ASSY. (LEFT/BLACK) (INCL. 4, 8, 9, 16, 17, 18)
-
195436595-070 FENDER-LEFT HAND (BLACK)FENDER-LEFT HAND (BLACK)
-
205436026-070 PLATE-SKID (BLACK)PLATE-SKID (BLACK)
-
217518352 SCREWSCREW
-
227555904 WASHERWASHER
-
237621418 RIVET, POPRIVET, POP
-
245436358-070 NOSEPAN-BSC (BLACK)NOSEPAN-BSC (BLACK)
