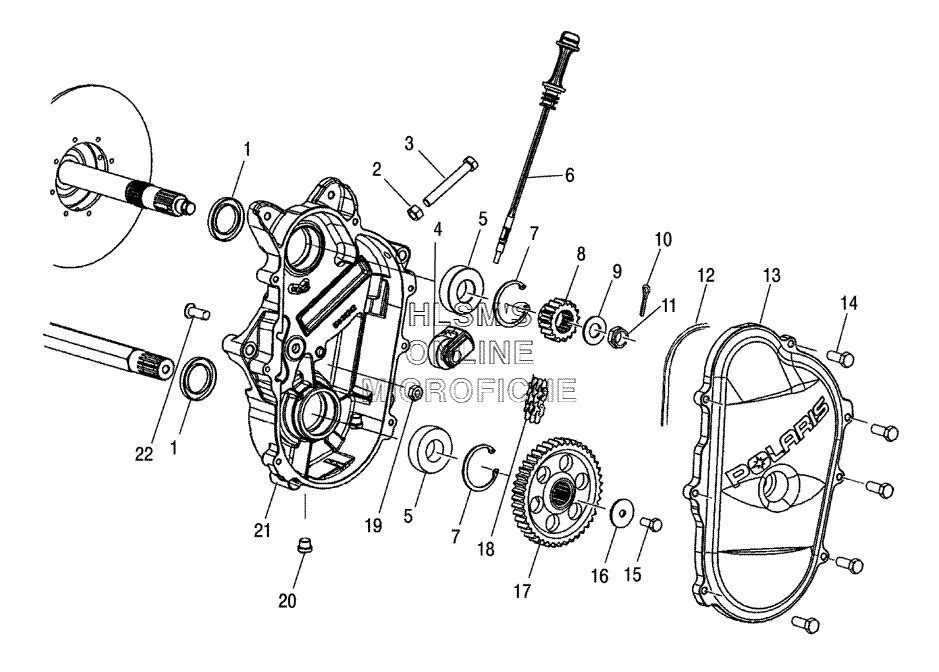

CHAINCASE ASSEMBLY для Polaris 440 IQ (S06MX4CS) - 2006 года выпуска
-
№АртикулНазвание
-
13610030 SEAL, OILSEAL, OIL
-
27542404 NUTNUT
-
37517227 SCREWSCREW
-
41332266 TIGHTENER ASSY., SLIDING (1.265W)TIGHTENER ASSY., SLIDING (1.265W)
-
53514309 BEARING, BALLBEARING, BALL
-
61332143 DIPSTICK ASSYDIPSTICK ASSY
-
65410675 O-RINGO-RING
-
77718406 RING, RETAININGRING, RETAINING
-
83221165 SPROCKET, SPLINE 7/8W (19/15 TEETH)SPROCKET, SPLINE 7/8W (19/15 TEETH)
-
97571620 WASHER, SPRINGWASHER, SPRING
-
107661203 PIN, COTTERPIN, COTTER
-
117547202 NUTNUT
-
125411497 GASKET, O-RINGGASKET, O-RING
-
135631354 COVER, CHAINCASECOVER, CHAINCASE
-
147512242 SCREWSCREW
-
157517979 SCREWSCREW
-
167571618 WASHER, SPRINGWASHER, SPRING
-
173222151 TENSIONERTENSIONER
-
183222132 CHAIN 76P 7/8WCHAIN 76P 7/8W
-
197542451 NUT, NYLOKNUT, NYLOK
-
207052115 PLUGPLUG
-
215134260 CHAINCSECHAINCSE
-
227515477 SCREW, CARRIAGESCREW, CARRIAGE
