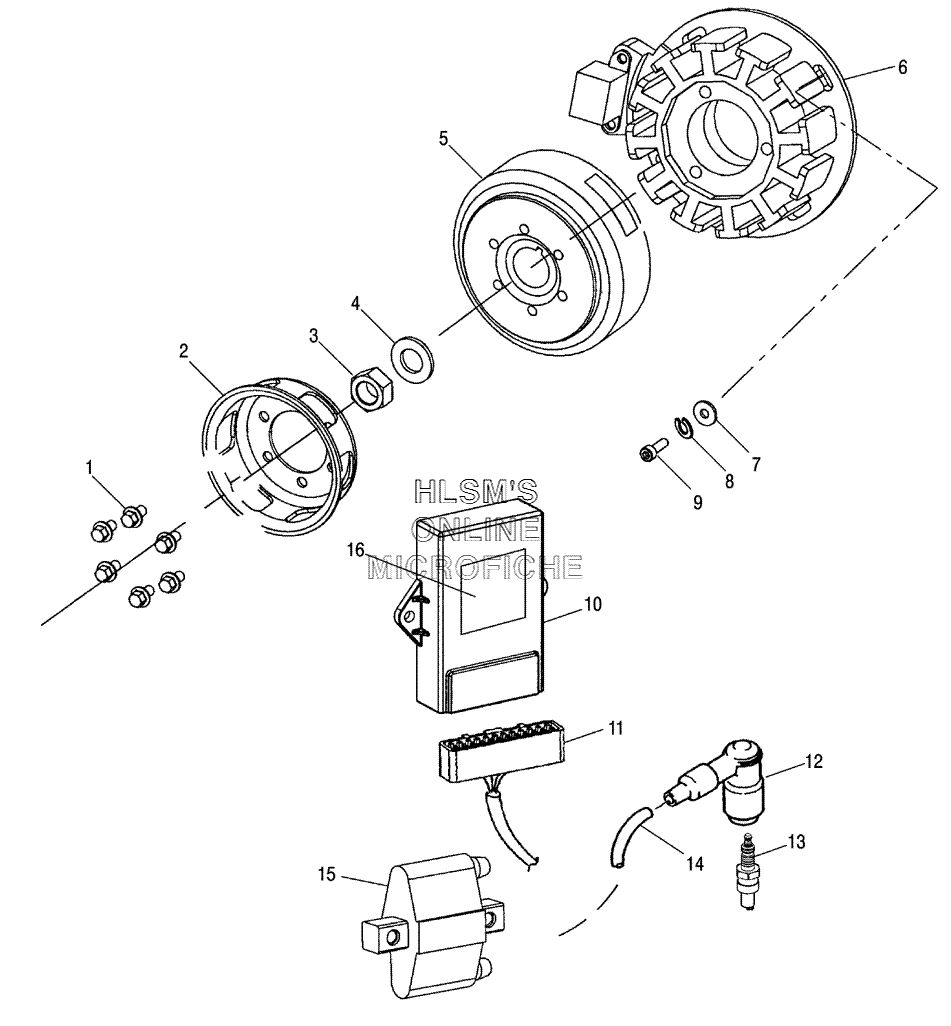

ELECTRICAL - MAGNETO ASSEMBLY W/ COIL для Polaris 440 IQ (S06MX4CS) - 2006 года выпуска
-
№АртикулНазвание
-
17517278 SCREWSCREW
-
23021618 PULLEY-STARTER, RECOILPULLEY-STARTER, RECOIL
-
37546909 NUTNUT
-
47555907 WASHERWASHER
-
54010629 FLYWHEEL-IGN W/O GLUEFLYWHEEL-IGN W/O GLUE
-
64011411 STATOR-IGN, DC-CDISTATOR-IGN, DC-CDI
-
77555970 WASHER, FLATWASHER, FLAT
-
87555969 WASHER, LOCKWASHER, LOCK
-
97517314 SCREWSCREW
-
102203185 CDI KIT (INCL. NYOGEL AND DECAL)CDI KIT (INCL. NYOGEL AND DECAL)
-
114011414 HARNESS-IGN, DC-CDIHARNESS-IGN, DC-CDI
-
124020159 CAP, SPARK PLUGCAP, SPARK PLUG
-
133070190 SP.PLUG, CHAMPION RN57YSP.PLUG, CHAMPION RN57Y
-
144010124-305 WIRE, IGNITIONWIRE, IGNITION
-
154060229 COIL, IGNITIONCOIL, IGNITION
-
167077187 DECAL, PATENT PENDINGDECAL, PATENT PENDING
