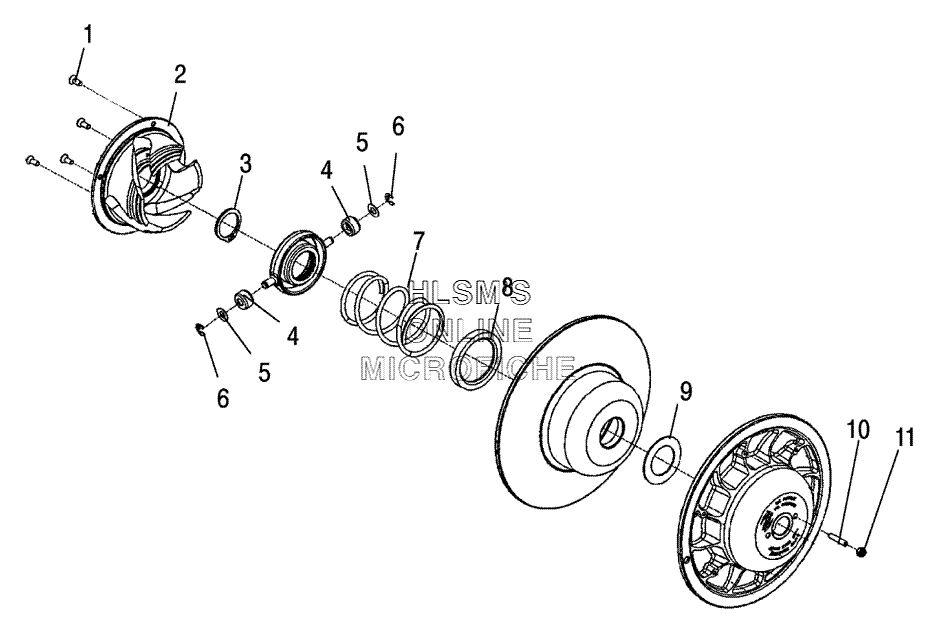

CLUTCH - DRIVEN для Polaris 440 IQ (S06MX4CS) - 2006 года выпуска
-
№АртикулНазвание
-
13233996 SCREWSCREW
-
25135438 RAMP DVNRAMP DVN
-
37710583 RET.RINGRET.RING
-
45434534 ROLLERROLLER
-
57556226 WASHER-THRUSTWASHER-THRUST
-
67710523 RET.E-RINGRET.E-RING
-
77043063 SPRING-DRIVEN, CLUTCH (BLACK/LEFT)SPRING-DRIVEN, CLUTCH (BLACK/LEFT)
-
87556227 WASHER-THRUSTWASHER-THRUST
-
97556370 WASHERWASHER
-
103234228 SCREW SETSCREW SET
-
113233289 NUT, FLEXLOCKNUT, FLEXLOCK
-
-1322625 DRIVEN CLUTCH ASSY. (INCL. 3-6, 8-11)DRIVEN CLUTCH ASSY. (INCL. 3-6, 8-11)
