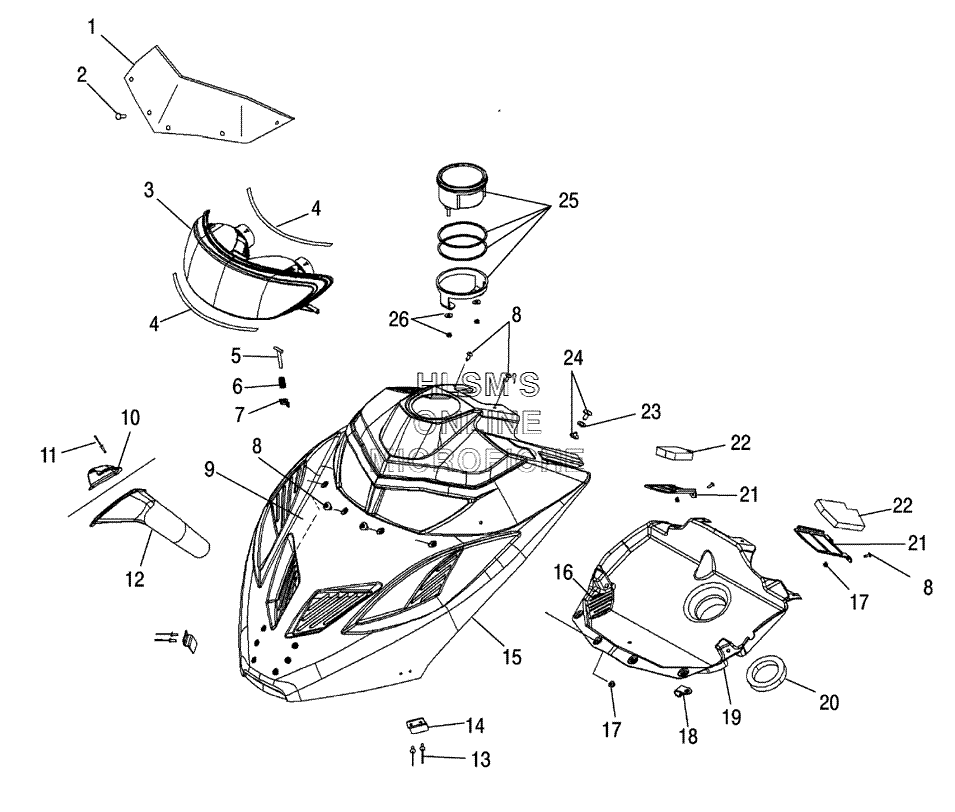

HOOD ASSEMBLY W/ WINDSHIELD для Polaris 440 IQ (S06MX4CS) - 2006 года выпуска
-
№АртикулНазвание
-
15436033 WINDSHIELDWINDSHIELD
-
27670088 CLIP, PLASTIC DART, NYLONCLIP, PLASTIC DART, NYLON
-
32410132 HEADLAMP ASSY., 2-BULBHEADLAMP ASSY., 2-BULB
-
32870448 BULB, QUARTZ.HEADLIGHTBULB, QUARTZ.HEADLIGHT
-
34032063 RETAINER, HEADLIGHT BULBRETAINER, HEADLIGHT BULB
-
32410593 HARNESS, HEADLIGHTHARNESS, HEADLIGHT
-
45812821 FOAM-HEADLIGHT SEAL, 22''FOAM-HEADLIGHT SEAL, 22''
-
45812822 FOAM-HEADLIGHT SEAL, 26''FOAM-HEADLIGHT SEAL, 26''
-
57517872 BOLT-TEE ADJUSTERBOLT-TEE ADJUSTER
-
67041954 SPRING-HEADLIGHT ADJUSTSPRING-HEADLIGHT ADJUST
-
77080887 KNOB, HEADLIGHT, ADJUSTKNOB, HEADLIGHT, ADJUST
-
87518281 SCREWSCREW
-
95812836 FOIL-HOOD (RIGHT)FOIL-HOOD (RIGHT)
-
105436173 SCOOP-BRAKE DUCTSCOOP-BRAKE DUCT
-
117621334 RIVETRIVET
-
122633094 BRAKE DUCT ASSY.BRAKE DUCT ASSY.
-
125812823 FOIL-BRAKE DUCTFOIL-BRAKE DUCT
-
137621472 RIVETRIVET
-
145250040 BRACKET-HOOD RETENTION GUIDEBRACKET-HOOD RETENTION GUIDE
-
152633239-293 HOOD ASSY. (INDY RED) (INCL. 9)HOOD ASSY. (INDY RED) (INCL. 9)
-
165812840 FOIL-PLENUMFOIL-PLENUM
-
177518287 NUTNUT
-
187080372 CLAMP, RETAINERCLAMP, RETAINER
-
192633240 PLENUM ASSY., RACEPLENUM ASSY., RACE
-
205812794 FOAM-INTAKEFOAM-INTAKE
-
215249217 BRKT-INTAKE FOAM, HOOD (LEFT)BRKT-INTAKE FOAM, HOOD (LEFT)
-
215249221 BRKT-INTAKE FOAM, HOOD (RIGHT)BRKT-INTAKE FOAM, HOOD (RIGHT)
-
225812818 FOAM-INTAKE, HOODFOAM-INTAKE, HOOD
-
237555904 WASHERWASHER
-
241015421 RIVET/RETAINER ASSY.RIVET/RETAINER ASSY.
-
252873888 TACHOMETER KIT, 6 PULSETACHOMETER KIT, 6 PULSE
-
253280209 CUSHION, TACH/SPEEDO, RUBBERCUSHION, TACH/SPEEDO, RUBBER
-
253280210 BRACKET, TACH/SPEEDO, 5''BRACKET, TACH/SPEEDO, 5''
-
263280157 WASHER, FLATWASHER, FLAT
-
267546703 NUT, NYLOKNUT, NYLOK
