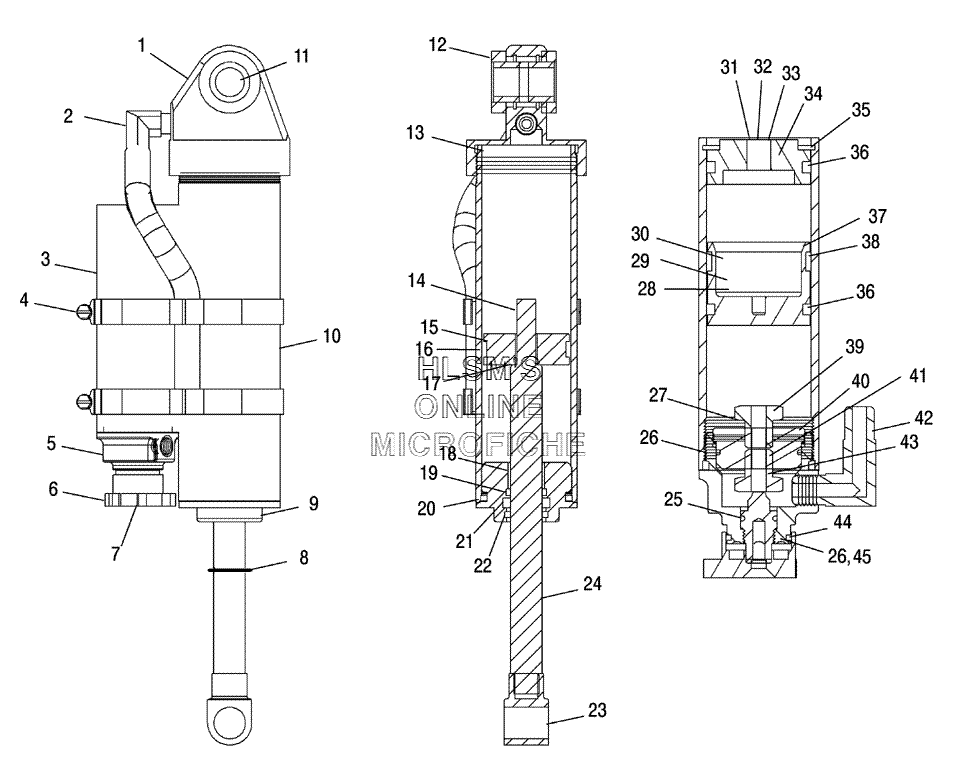

SUSPENSION - WALKER EVANS - REAR TRACK SHOCK для Polaris 440 IQ (S06MX4CS) - 2006 года выпуска
-
№АртикулНазвание
-
11800237 LOOP-BODY (320146)LOOP-BODY (320146)
-
21800212 HOSEHOSE
-
31800213 BODY-RESERVOIRBODY-RESERVOIR
-
41800236 CLAMP-HOSE, RES (400216)CLAMP-HOSE, RES (400216)
-
51800220 HOUSING-ADJ.HOUSING-ADJ.
-
61800218 KNOBKNOB
-
71800203 SCREWSCREW
-
81800095 O-RINGO-RING
-
91800131 SHAFT ASSY., SEAL HOUSINGSHAFT ASSY., SEAL HOUSING
-
101800238 BODY-SHOCK (320153)BODY-SHOCK (320153)
-
111800032 SLEEVE 1.202''LSLEEVE 1.202''L
-
121800036 BUSHING/URETHANEBUSHING/URETHANE
-
131800242 O-RING EXT., LOOP (320310)O-RING EXT., LOOP (320310)
-
141800241 NUT, 7/16 (220314)NUT, 7/16 (220314)
-
151800239 PISTON W/BAND (440156)PISTON W/BAND (440156)
-
161800243 WEAR BAND, TEFLON (220302)WEAR BAND, TEFLON (220302)
-
171800118 WASHER-.090 X 1.000WASHER-.090 X 1.000
-
181800038 SHAFT BUSHINGSHAFT BUSHING
-
191800163 O-RING-EXTO-RING-EXT
-
201800027 O-RING BODYO-RING BODY
-
211800035 SHAFT SEAL U CUPSHAFT SEAL U CUP
-
221800034 WIPER D/TYPEWIPER D/TYPE
-
231800096 EYELETEYELET
-
241800235 SHAFT, 5/8''SHAFT, 5/8''
-
251800094 O-RINGO-RING
-
261800127 BALL-D-TENTBALL-D-TENT
-
271800052 SHIM-VALVESHIM-VALVE
-
281800210 O-RING-BLEED SCREWO-RING-BLEED SCREW
-
291800091 VALVEVALVE
-
301800211 BLEED SCREWBLEED SCREW
-
311800109 SCREW-BUTTON HEADSCREW-BUTTON HEAD
-
321800107 VALVE-NEEDLEVALVE-NEEDLE
-
331800108 O-RINGO-RING
-
341800106 CAP-ENDCAP-END
-
351800019 RESERVOIR SNAP RINGRESERVOIR SNAP RING
-
361800028 O-RING RESERVOIRO-RING RESERVOIR
-
371800282 SHAFT EYELET (500161)SHAFT EYELET (500161)
-
381800029 WEAR BANDWEAR BAND
-
391800219 SCREW W/THRU HOLESCREW W/THRU HOLE
-
401800217 PISTONPISTON
-
411800125 BALL-CHECKBALL-CHECK
-
421800113 ELBOW-1/8'' NPT 90ШELBOW-1/8'' NPT 90Ш
-
431800050 3/8'' AN WASHER3/8'' AN WASHER
-
441800221 O-RING, KNOBO-RING, KNOB
-
451800128 SPRING-D-TENTSPRING-D-TENT
-
-7043180 SHOCK-REAR TRACKSHOCK-REAR TRACK
