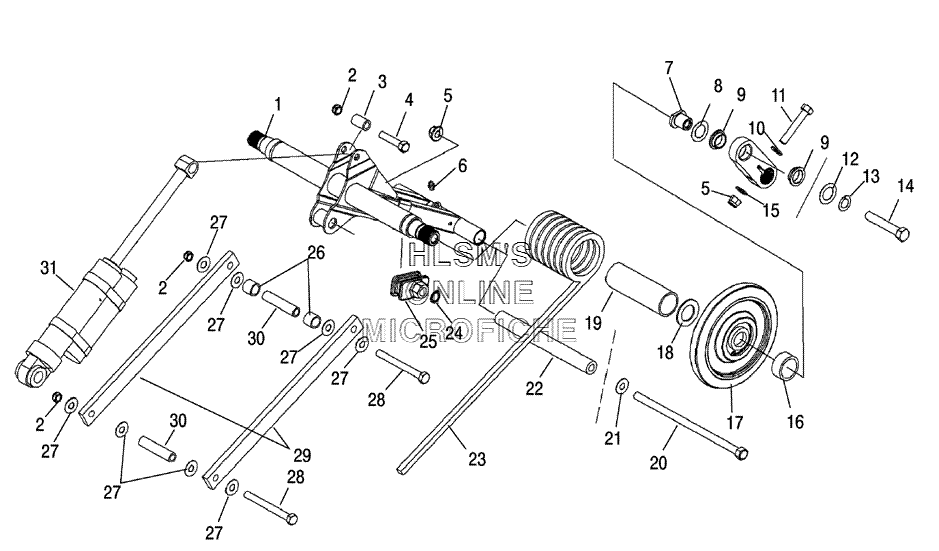

SUSPENSION - REAR TORQUE ARM ASSEMBLY для Polaris 440 IQ (S06MX4CS) - 2006 года выпуска
-
№АртикулНазвание
-
11542283-329 WELD-RTA, RACE (BLACK)WELD-RTA, RACE (BLACK)
-
27542411 NUT, FLEXLOCNUT, FLEXLOC
-
35010422 BUSHINGBUSHING
-
47512410 BOLTBOLT
-
57547263 NUT, NYLOKNUT, NYLOK
-
67080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
75134678 SHAFT-ARMSHAFT-ARM
-
87555945 WASHER, THRUSTWASHER, THRUST
-
93514488 BUSHING-ARMBUSHING-ARM
-
107556188 WASHER-FLATWASHER-FLAT
-
117515415 SCREWSCREW
-
127555984 WASHER, FLATWASHER, FLAT
-
137552614 WASHER, LOCKWASHER, LOCK
-
147512539 BOLTBOLT
-
151542108 ARM ASSY. (INCL. 9)ARM ASSY. (INCL. 9)
-
165134706 SPACER-WHEELSPACER-WHEEL
-
171590343 CARRIER WHEEL ASSY.CARRIER WHEEL ASSY.
-
187555787 WASHERWASHER
-
195436197 SLEEVE-TORSIONSLEEVE-TORSION
-
207517232 SCREWSCREW
-
217556188 WASHER-FLATWASHER-FLAT
-
225334025 SHAFTSHAFT
-
237043220-067 SPRG-TORSION (375 IQ/77Ш) (LEFT/BLACK)SPRG-TORSION (375 IQ/77Ш) (LEFT/BLACK)
-
237043221-067 SPRG-TORSION (.375 IQ/77Ш) (RIGHT/BLACK)SPRG-TORSION (.375 IQ/77Ш) (RIGHT/BLACK)
-
247080394 CLIP, PUSH ONCLIP, PUSH ON
-
255432983 ROLLER, SPRINGROLLER, SPRING
-
265334482 SPACERSPACER
-
277555797 WASHER, FLATWASHER, FLAT
-
287517851 SCREWSCREW
-
295249817 ROD-SHOCK, RACEROD-SHOCK, RACE
-
305334475 SLEEVESLEEVE
