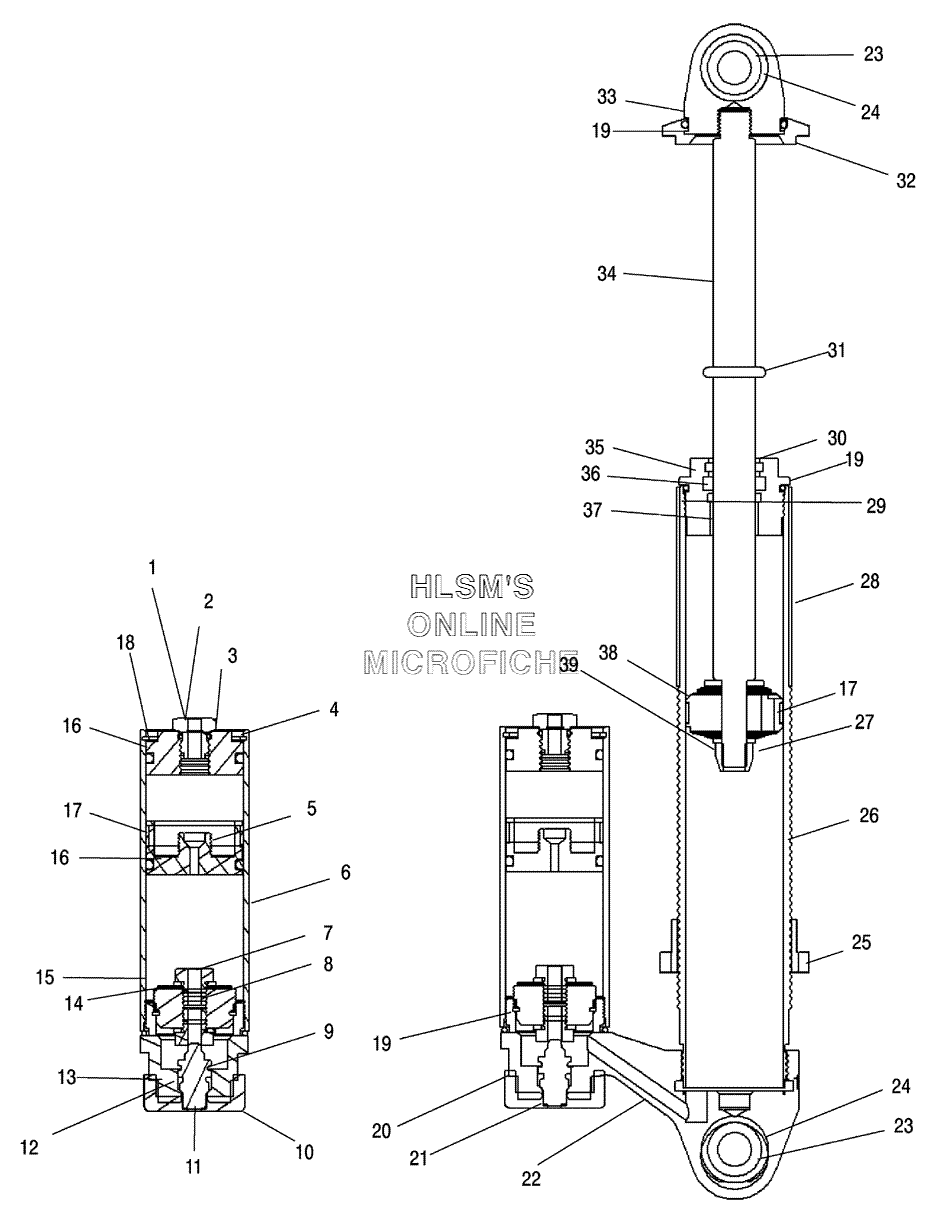

SUSPENSION - WALKER EVANS - SHOCK IFS для Polaris 440 IQ (S06MX4CS) - 2006 года выпуска
-
№АртикулНазвание
-
11800107 VALVE-NEEDLEVALVE-NEEDLE
-
21800109 SCREW-BUTTON HEADSCREW-BUTTON HEAD
-
31800108 O-RINGO-RING
-
41800019 RESERVOIR SNAP RINGRESERVOIR SNAP RING
-
51800281 PISTON-RESERVOIR (500204)PISTON-RESERVOIR (500204)
-
51800210 O-RING-BLEED SCREWO-RING-BLEED SCREW
-
51800211 BLEED SCREWBLEED SCREW
-
61800219 SCREW W/THRU HOLESCREW W/THRU HOLE
-
71800120 BODY-RESERVOIRBODY-RESERVOIR
-
81800217 PISTONPISTON
-
91800094 O-RINGO-RING
-
101800284 KNOBKNOB
-
111800203 SCREWSCREW
-
121800127 BALL-D-TENTBALL-D-TENT
-
131800052 SHIM-VALVE .010X.700SHIM-VALVE .010X.700
-
141800050 3/8'' AN WASHER3/8'' AN WASHER
-
151800072 SHIM-VALVE .015X1.300SHIM-VALVE .015X1.300
-
161800028 O-RING RESERVOIRO-RING RESERVOIR
-
171800029 WEAR BANDWEAR BAND
-
181800106 CAP-ENDCAP-END
-
191800027 O-RING BODYO-RING BODY
-
201800127 BALL-D-TENTBALL-D-TENT
-
211800128 SPRING-D-TENTSPRING-D-TENT
-
221800283 BODY LOOP W/SNAP RINGBODY LOOP W/SNAP RING
-
231800170 BEARINGBEARING
-
241800041 END BEARING SNAP RINGEND BEARING SNAP RING
-
251800046 SPRING RETAINERSPRING RETAINER
-
261800232 BODY-SHOCKBODY-SHOCK
-
271800031 3/8'' CRIMP NUT3/8'' CRIMP NUT
-
281800047 WEAR SLEEVEWEAR SLEEVE
-
291800037 O-RING SHAFT SEAL HEADO-RING SHAFT SEAL HEAD
-
301800034 WIPER D/TYPEWIPER D/TYPE
-
311800095 O-RINGO-RING
-
321800116 SPRING-RETAINING RINGSPRING-RETAINING RING
-
331800234 EYELET-SHAFT, 5/8''EYELET-SHAFT, 5/8''
-
341800233 SHAFT, 5/8''SHAFT, 5/8''
-
351800131 SHAFT SEAL ASSY., HOUSINGSHAFT SEAL ASSY., HOUSING
-
361800035 SHAFT SEAL U CUPSHAFT SEAL U CUP
-
371800038 SHAFT BUSHINGSHAFT BUSHING
-
381800130 PISTON ASSY., W/BAND CONVEXPISTON ASSY., W/BAND CONVEX
-
391800204 WASHERWASHER
-
-7043194 SHOCK-IFS, W/E RACESHOCK-IFS, W/E RACE
