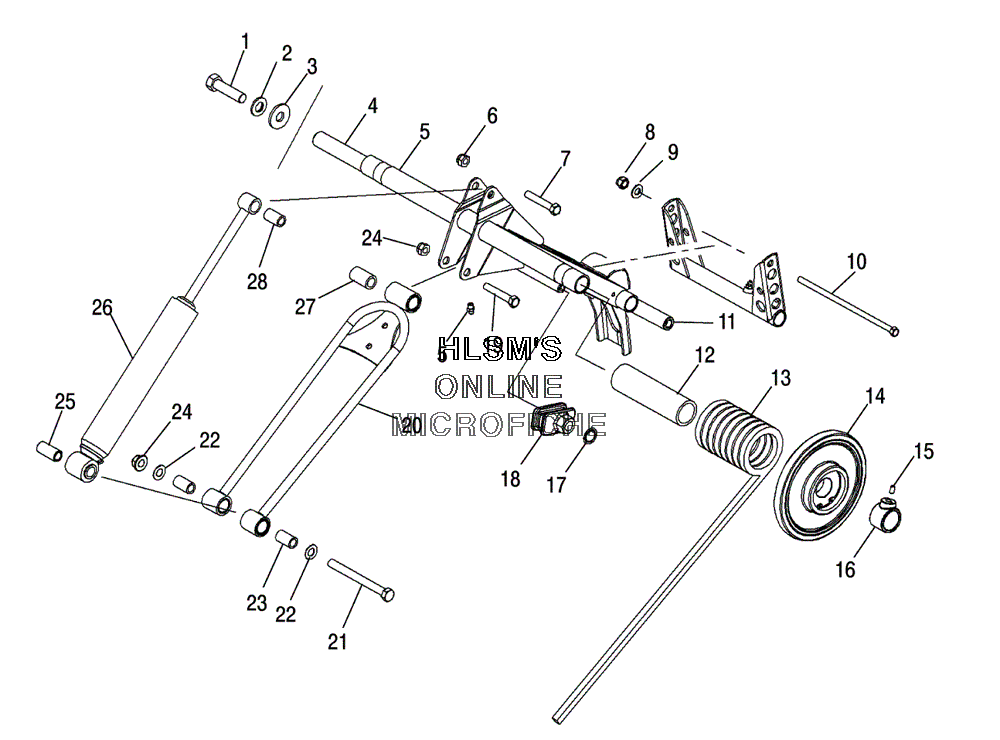

SUSPENSION - REAR TORQUE ARM ASSEMBLY для Polaris 900 SWITCHBACK (S05PS8DS) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    7518005 SCREW HEXAGON CAP
    SCREW HEXAGON CAP
  • 2
    7552603 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 3
    7555893 WASHER, FLAT
    WASHER, FLAT
  • 4
    5133987 SHAFT
    SHAFT
  • 5
    1541963-385 RTA, NARROW (CLOUD SILVER)
    RTA, NARROW (CLOUD SILVER)
  • 5
    7080424 FITTING, LUBRICATION
    FITTING, LUBRICATION
  • 6
    7542411 NUT, FLEXLOC
    NUT, FLEXLOC
  • 7
    7512410 BOLT
    BOLT
  • 8
    7547217 NUT NYLOK
    NUT NYLOK
  • 9
    7558402 WASHER, FLAT
    WASHER, FLAT
  • 10
    7517908 SCREW HEXAGON CAP
    SCREW HEXAGON CAP
  • 11
    5333997 SHAFT ANNODIZE
    SHAFT ANNODIZE
  • 12
    5434337 SLEEVE TORSION SPRING
    SLEEVE TORSION SPRING
  • 13
    7041629-067 SPRING, TORSION (.359SQ/77) (LEFT/BLACK)
    SPRING, TORSION (.359SQ/77) (LEFT/BLACK)
  • 13
    7041630-067 SPRING, TORSION (.359SQ/77) (RIGHT/BLACK)
    SPRING, TORSION (.359SQ/77) (RIGHT/BLACK)
  • 13
    7041627-067 SPRING, TORSION (.347SQ/77) (LEFT/BLACK) (OPT)
    SPRING, TORSION (.347SQ/77) (LEFT/BLACK) (OPT)
  • 13
    7041628-067 SPRING, TORSION (.347SQ/77) (RIGHT/BLACK) (OPT)
    SPRING, TORSION (.347SQ/77) (RIGHT/BLACK) (OPT)
  • 13
    7041942-067 SPRING, TORSION (.375SQ/77) (LEFT/BLACK) (OPT)
    SPRING, TORSION (.375SQ/77) (LEFT/BLACK) (OPT)
  • 13
    7041943-067 SPRING, TORSION (.375SQ/77)(RIGHT/BLACK) (OPT)
    SPRING, TORSION (.375SQ/77)(RIGHT/BLACK) (OPT)
  • 14
    1590328 WHEEL, BOGIE PLAIN ASSY (5.62)
    WHEEL, BOGIE PLAIN ASSY (5.62)
  • 14
    3514303 BEARING
    BEARING
  • 14
    7718407 RING RETAINING
    RING RETAINING
  • 15
    7518262 SCREW SOCKET SET
    SCREW SOCKET SET
  • 16
    5133988 SPACER NYLON
    SPACER NYLON
  • 17
    7080394 CLIP, PUSH ON
    CLIP, PUSH ON
  • 18
    5432983 ROLLER, SPRING ADJUSTABLE SQUARE
    ROLLER, SPRING ADJUSTABLE SQUARE
  • 19
    7515415 SCREW
    SCREW
  • 20
    1542170 SHOCK ROD ASSY (INCL. BUSHINGS)
    SHOCK ROD ASSY (INCL. BUSHINGS)
  • 20
    5435722 BUSHING
    BUSHING
  • 20
    5435723 BUSHING
    BUSHING
  • 21
    7518263 SCREW HEXAGON CAP
    SCREW HEXAGON CAP
  • 22
    7555795 WASHER, WAVE SPRING
    WASHER, WAVE SPRING
  • 23
    5134602 BUSHING
    BUSHING
  • 24
    7547263 NUT 3/8-24 NYLOK
    NUT 3/8-24 NYLOK
  • 25
    5333905 SLEEVE
    SLEEVE
  • 26
    7043046 SHOCK R/T IFP RAPID ADJUSTER
    SHOCK R/T IFP RAPID ADJUSTER
  • 27
    5134601 BUSHING
    BUSHING
  • 28
    5010422 BUSHING
    BUSHING
