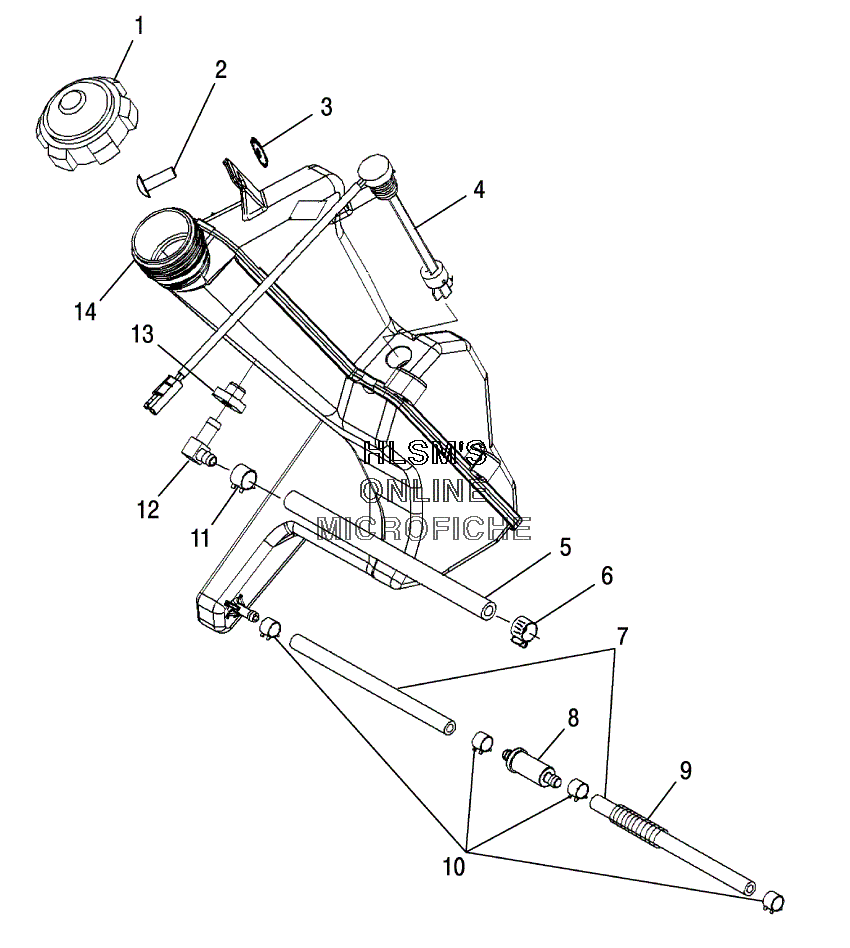

OIL TANK для Polaris 900 SWITCHBACK (S05PS8DS) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    1240094 CAP OIL, VENTED/CUSTOM COLOR
    CAP OIL, VENTED/CUSTOM COLOR
  • 2
    7515199 SCREW
    SCREW
  • 3
    7558302 WASHER, WROUGHT
    WASHER, WROUGHT
  • 4
    4110134 SENSOR, OIL LEVEL
    SENSOR, OIL LEVEL
  • 5
    8450044-153 FUEL LINE (5 FT)
    FUEL LINE (5 FT)
  • 5
    8450105-65 SHEATH REFLECT SLEEVE (16MM)
    SHEATH REFLECT SLEEVE (16MM)
  • 6
    7080476 CLAMP, HOSE
    CLAMP, HOSE
  • 7
    8450003-1525 LINE, FUEL (1/4 ID/1525 CM)
    LINE, FUEL (1/4 ID/1525 CM)
  • 8
    2530009 FILTER, SMALL IN-LINE
    FILTER, SMALL IN-LINE
  • 9
    5521496-21 TUBING CONVOLUTED HI TEMP (70 CM)
    TUBING CONVOLUTED HI TEMP (70 CM)
  • 10
    7080307 CLAMP, HOSE
    CLAMP, HOSE
  • 11
    7080534 CLAMP, HOSE
    CLAMP, HOSE
  • 12
    7052369 FITTING, 5/16 DEX
    FITTING, 5/16 DEX
  • 13
    7052362 GROMMET FLANGED
    GROMMET FLANGED
  • 14
    1202837 OIL TANK, WITH SENDER
    OIL TANK, WITH SENDER
