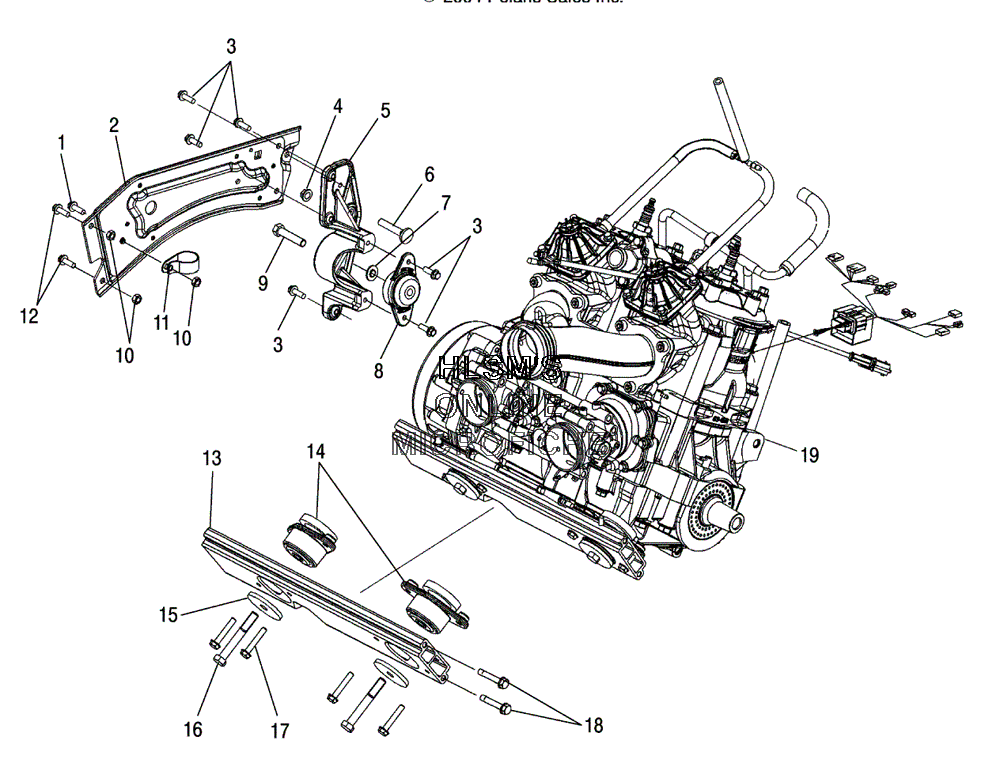

ENGINE MOUNTING - RIGHT AND FRONT для Polaris 900 SWITCHBACK (S05PS8DS) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    7512225 SCREW
    SCREW
  • 2
    1014935 SUPPORT BULKHEAD ASSY (UPPER/RIGHT)
    SUPPORT BULKHEAD ASSY (UPPER/RIGHT)
  • 3
    7512232 BOLT
    BOLT
  • 4
    7547180 NUT FLANGED, 3/8-16 NYLON Z
    NUT FLANGED, 3/8-16 NYLON Z
  • 5
    5134875 SUPPORT ENGINE (RIGHT/REAR)
    SUPPORT ENGINE (RIGHT/REAR)
  • 6
    7518029 BOLT CARRIER 3/8
    BOLT CARRIER 3/8
  • 7
    7555806 WASHER, FLAT
    WASHER, FLAT
  • 8
    3021564 MOUNT ENGINE (REAR)
    MOUNT ENGINE (REAR)
  • 9
    7518422 SCREW HEXAGON CAP
    SCREW HEXAGON CAP
  • 10
    7542153 NUT, NYLOK FLANGED
    NUT, NYLOK FLANGED
  • 11
    7081049 CLAMP SPRING (1 5/8" ID)
    CLAMP SPRING (1 5/8" ID)
  • 12
    7512253 SCREW
    SCREW
  • 13
    5134872 SUPPORT ENGINE BASE (FRONT)
    SUPPORT ENGINE BASE (FRONT)
  • 14
    3021577 MOUNT ENGINE (FRONT)
    MOUNT ENGINE (FRONT)
  • 15
    7556313 WASHER
    WASHER
  • 16
    7517297 SCREW
    SCREW
  • 17
    7515391 BOLT
    BOLT
  • 18
    7518342 BOLT HEXAGON FLANGE
    BOLT HEXAGON FLANGE
  • 19
    2202805 SHORT BLOCK KIT S86-86 ANNIV NOTE:
    SHORT BLOCK KIT S86-86 ANNIV NOTE:
  • 19
    2202806 SHORT BLOCK KIT S86-86 NOTE:
    SHORT BLOCK KIT S86-86 NOTE:
