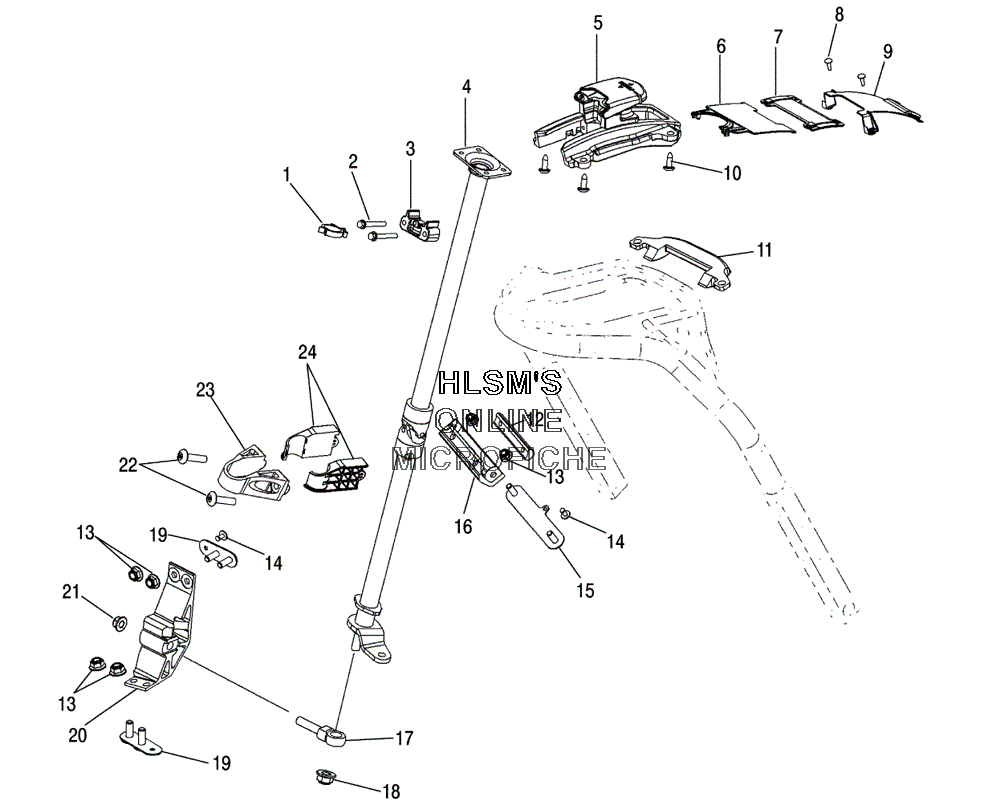

STEERING POST ASSEMBLY для Polaris 900 SWITCHBACK (S05PS8DS) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    7670164 CLIP CABLE CONSTRAINT
    CLIP CABLE CONSTRAINT
  • 2
    7512093 SCREW
    SCREW
  • 3
    5436167 BLOCK STEERING POST HALF (FRONT)
    BLOCK STEERING POST HALF (FRONT)
  • 4
    1821529-067 STEERING POST (BLACK)
    STEERING POST (BLACK)
  • 5
    1822780 BLOCK ASSY, STEERING ADJUSTABLE
    BLOCK ASSY, STEERING ADJUSTABLE
  • 6
    5435537 COVER ADJUSTABLE STEER (UPPER)
    COVER ADJUSTABLE STEER (UPPER)
  • 7
    5435536 COVER ADJUSTABLE STEER CENTER
    COVER ADJUSTABLE STEER CENTER
  • 8
    7661864 RIVET NYLON PUSH
    RIVET NYLON PUSH
  • 9
    5435538 COVER ADJUSTABLE STEER (LOWER)
    COVER ADJUSTABLE STEER (LOWER)
  • 10
    7518352 SCREW NYLON
    SCREW NYLON
  • 11
    5412694 WEDGE ADJUSTABLE COVER
    WEDGE ADJUSTABLE COVER
  • 12
    5134447 STRAP BEARING MOUNT MACH
    STRAP BEARING MOUNT MACH
  • 13
    7542343 NUT, FLANGE
    NUT, FLANGE
  • 14
    7661637 RIVET, INTERLOCK Z
    RIVET, INTERLOCK Z
  • 15
    1014646 PLATE, MID
    PLATE, MID
  • 16
    5134446 MOUNT STEERING MACH (UPPER)
    MOUNT STEERING MACH (UPPER)
  • 17
    7061122 JOINT BALL, STEERING
    JOINT BALL, STEERING
  • 18
    7547263 NUT NYLOK
    NUT NYLOK
  • 19
    1014645 PLATE BRACKET (LOWER)
    PLATE BRACKET (LOWER)
  • 20
    5134443 MOUNT STEERING BALL, MACH
    MOUNT STEERING BALL, MACH
  • 21
    7542522 NUT, FLANGE
    NUT, FLANGE
  • 22
    7516317 SCREW TORX NYLON
    SCREW TORX NYLON
  • 23
    5134445 MOUNT STEERING BUSHING MACHINE
    MOUNT STEERING BUSHING MACHINE
  • 24
    5435511 BUSHING STEERING POST (LEFT)
    BUSHING STEERING POST (LEFT)
  • 24
    5435512 BUSHING STEERING POST (RIGHT)
    BUSHING STEERING POST (RIGHT)
