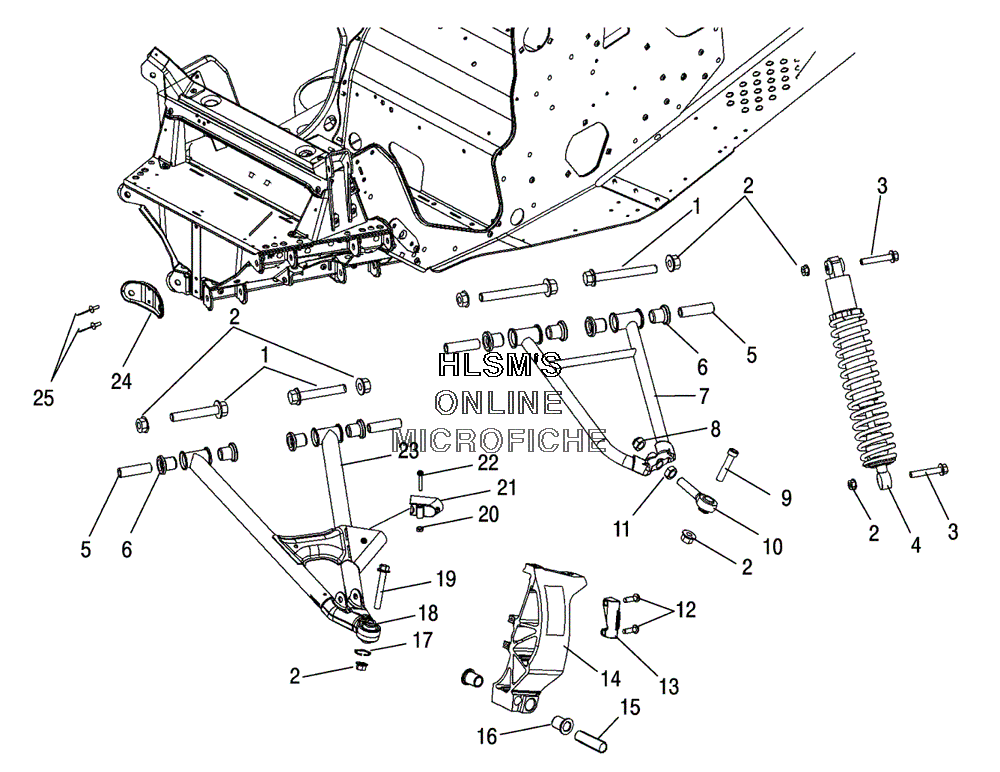

SUSPENSION - FRONT для Polaris 900 SWITCHBACK (S05PS8DS) - 2005 года выпуска

‹-+›
  • №
    Артикул
    Название
  • 1
    7518384 SCREW FLANGE HEXAGON
    SCREW FLANGE HEXAGON
  • 2
    7547180 NUT FLANGED, 3/8 16 NYLON Z
    NUT FLANGED, 3/8 16 NYLON Z
  • 3
    7518278 SCREW FLANGE HEXAGON
    SCREW FLANGE HEXAGON
  • 4
    7042258 SHOCK IFS ALUMINUM WITH IFP (SELECT)
    SHOCK IFS ALUMINUM WITH IFP (SELECT)
  • 4
    7041576-293 SPRING COMPRESSION IFS (INDY RED)
    SPRING COMPRESSION IFS (INDY RED)
  • 4
    5630580 RETAINER SPRING SLOTTED
    RETAINER SPRING SLOTTED
  • 5
    5133860 SHAFT PIVOT
    SHAFT PIVOT
  • 6
    5434932 BUSHING PIVOT
    BUSHING PIVOT
  • 7
    2202932 UCA, SVC KIT (LEFT) (INCL. 2, 5-8, 10, 11)
    UCA, SVC KIT (LEFT) (INCL. 2, 5-8, 10, 11)
  • 7
    2202933 UCA, SVC KIT (RIGHT) (INCL. 2, 5-8, 10, 11)
    UCA, SVC KIT (RIGHT) (INCL. 2, 5-8, 10, 11)
  • 8
    7547104 NUT
    NUT
  • 9
    7510003 SCREW SOCKET HEAD CAP
    SCREW SOCKET HEAD CAP
  • 10
    7061124 ROD END
    ROD END
  • 11
    7542711 NUT JAM
    NUT JAM
  • 12
    7515177 SCREW
    SCREW
  • 13
    5631603 STOP STEERING (LEFT)
    STOP STEERING (LEFT)
  • 13
    5631604 STOP STEERING (RIGHT)
    STOP STEERING (RIGHT)
  • 14
    1822724 SPINDLE ASSY (LEFT/RED) (INCL. 12, 13, 16 AND DECAL)
    SPINDLE ASSY (LEFT/RED) (INCL. 12, 13, 16 AND DECAL)
  • 14
    1822725 SPINDLE ASSY (RIGHT/RED) (INCL. 12, 13, 16 AND DECAL)
    SPINDLE ASSY (RIGHT/RED) (INCL. 12, 13, 16 AND DECAL)
  • 15
    5010158 BUSHING PIVOT
    BUSHING PIVOT
  • 16
    5133983 BUSHING SKI PIVOT
    BUSHING SKI PIVOT
  • 17
    7710539 RING RETAINING, 1.25 ID HOUSING
    RING RETAINING, 1.25 ID HOUSING
  • 18
    7061111 SUBSTITUTED BY 2203076
    SUBSTITUTED BY 2203076
  • 19
    7518276 SCREW HEXAGON
    SCREW HEXAGON
  • 20
    7541925 NUT, NYLOK 10-24 Y
    NUT, NYLOK 10-24 Y
  • 21
    5435738 SLIDE SWAY BAR (.562)
    SLIDE SWAY BAR (.562)
  • 22
    7510504 SCREW
    SCREW
  • 23
    2202934 LCA, SERVICE KIT (LEFT) (INCL. 2, 5, 6, 17, 18, 20-22)
    LCA, SERVICE KIT (LEFT) (INCL. 2, 5, 6, 17, 18, 20-22)
  • 23
    2202935 LCA, SERVICE KIT (RIGHT)
    LCA, SERVICE KIT (RIGHT)
  • 24
    5247372 BRACE A-ARM (FRONT/LOWER)
    BRACE A-ARM (FRONT/LOWER)
  • 25
    7661637 RIVET, INTERLOCK Z
    RIVET, INTERLOCK Z
