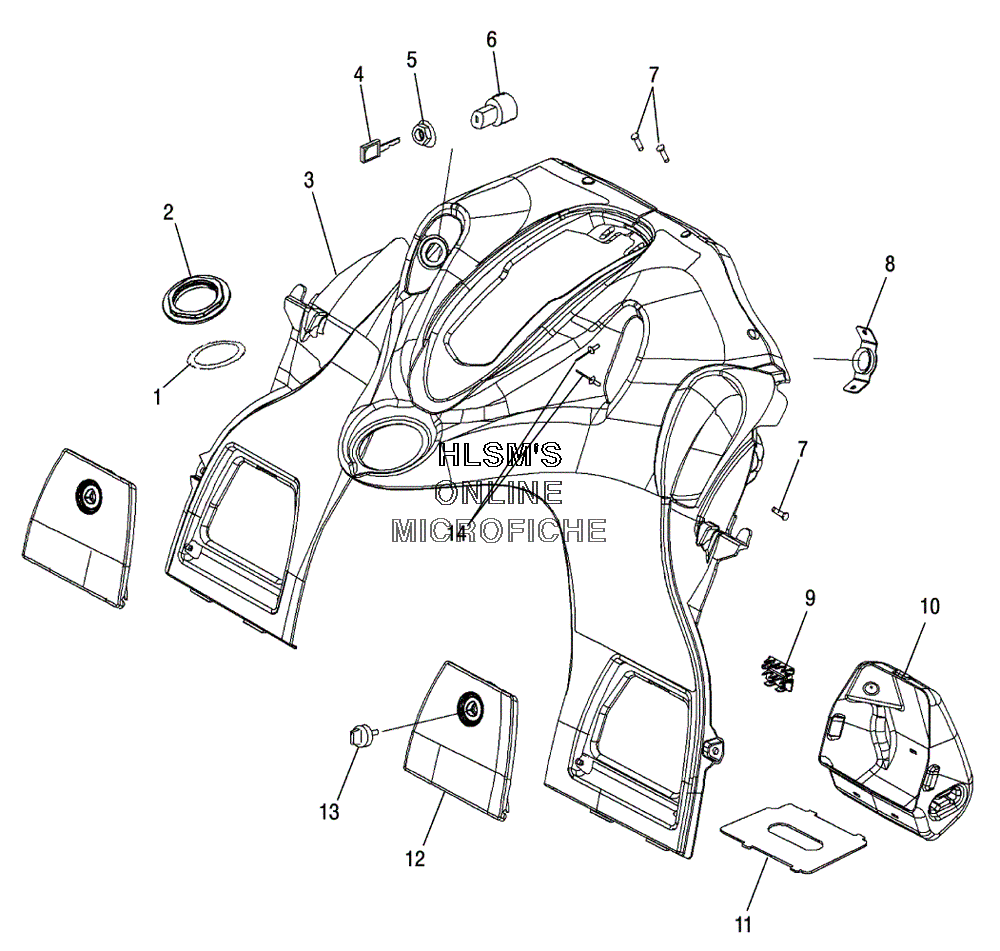

CONSOLE для Polaris 900 SWITCHBACK (S05PS8DS) - 2005 года выпуска
‹-+›
-
№АртикулНазвание
-
15411174 O-RINGO-RING
-
25435156 NUT FILLER NECKNUT FILLER NECK
-
32632978-070 CONSOLE ASSY (BLACK) (INCL. WARNING DECAL)CONSOLE ASSY (BLACK) (INCL. WARNING DECAL)
-
45410611 KEY SEE NOTE BELOWKEY SEE NOTE BELOW
-
57547035 NUT, IGNITIONNUT, IGNITION
-
62200358 IGNITION SWITCH KITIGNITION SWITCH KIT
-
77517916 SCREWSCREW
-
85243049 GUIDE RECOILGUIDE RECOIL
-
95435945 HOLDER SPARK PLUGHOLDER SPARK PLUG
-
105435205 COMPARTMENT STORAGE (LEFT)COMPARTMENT STORAGE (LEFT)
-
105435206 COMPARTMENT STORAGE (RIGHT)COMPARTMENT STORAGE (RIGHT)
-
115812557 COMPARTMENT, DIVIDERCOMPARTMENT, DIVIDER
-
122632857-070 DOOR CONSOLE ASSY (LEFT/BLACK)DOOR CONSOLE ASSY (LEFT/BLACK)
-
122632858-070 DOOR CONSOLE ASSY (RIGHT/BLACK)DOOR CONSOLE ASSY (RIGHT/BLACK)
-
135435207-070 KEY (BLACK)KEY (BLACK)
-
147621323 POP RIVETPOP RIVET
