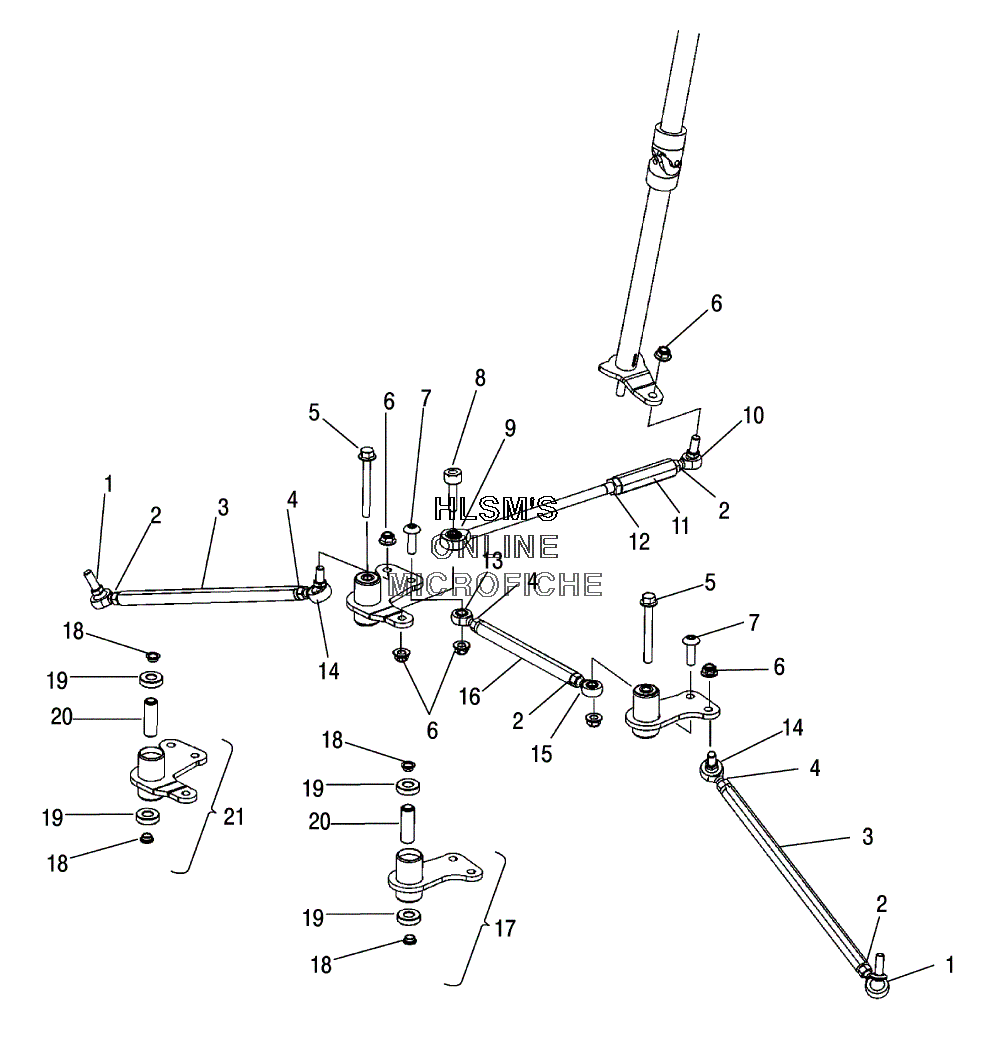

STEERING ASSEMBLY для Polaris 900 SWITCHBACK (S05PS8DS) - 2005 года выпуска
-
№АртикулНазвание
-
17061057 ROD END 3/8 PL (RIGHT)ROD END 3/8 PL (RIGHT)
-
27542401 NUT, HEXAGON (RIGHT)NUT, HEXAGON (RIGHT)
-
35334341 ROD TIEROD TIE
-
47542424 NUT (LEFT)NUT (LEFT)
-
57518277 SCREW FLANGESCREW FLANGE
-
67547263 NUT 3/8 24 NYLOKNUT 3/8 24 NYLOK
-
77518372 SCREW TX/TRUSSSCREW TX/TRUSS
-
87515545 BOLTBOLT
-
97060000 ROD END 1/2 24 (LEFT)ROD END 1/2 24 (LEFT)
-
107061084 ROD END 3/8-24 (RIGHT)ROD END 3/8-24 (RIGHT)
-
115330002 ROD DRAGLINKROD DRAGLINK
-
127547028 NUT, JAM (LEFT)NUT, JAM (LEFT)
-
137060001 ROD END 3/8 (LEFT)ROD END 3/8 (LEFT)
-
147061055 ROD END 3/8 PL (LEFT)ROD END 3/8 PL (LEFT)
-
157060002 ROD END 3/8 (RIGHT)ROD END 3/8 (RIGHT)
-
165334325 ROD STEERING RACKROD STEERING RACK
-
171821419 ARM IDLER ASSYARM IDLER ASSY
-
185132106 BUSHING REDUCER (12MM TO .385)BUSHING REDUCER (12MM TO .385)
-
193514320 BEARING BALLBEARING BALL
-
205133952 SPACER TUBE PITMAN/IDLER ARMSSPACER TUBE PITMAN/IDLER ARMS
-
211821417 PITMAN ARM ASSYPITMAN ARM ASSY
