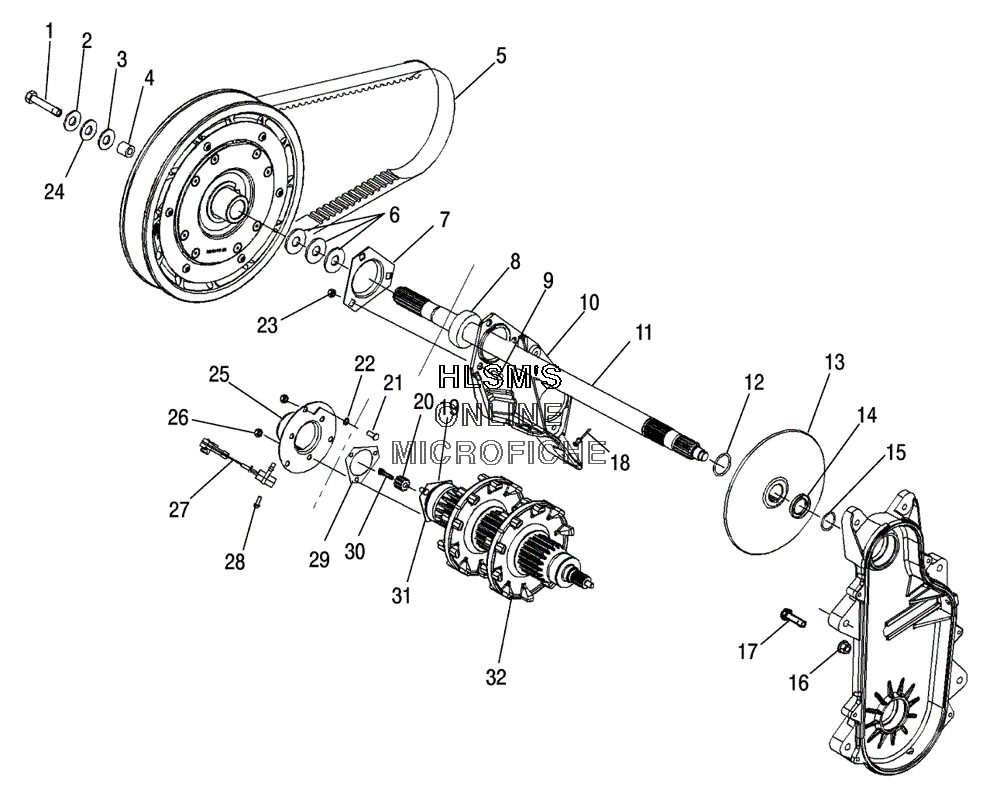

DRIVE TRAIN ASSEMBLY W/ DRIVE BELT для Polaris 900 SWITCHBACK (S05PS8DS) - 2005 года выпуска
-
№АртикулНазвание
-
17515369 BOLTBOLT
-
27555701 WASHER, FLATWASHER, FLAT
-
37555957 WASHERWASHER
-
45134371 SPACER INPUT SHAFT (.875 OD)SPACER INPUT SHAFT (.875 OD)
-
53211080 BELT DRIVEBELT DRIVE
-
67555864 WASHERWASHER
-
67555917 WASHERWASHER
-
67556509 BUSHINGBUSHING
-
75247680 FLANGETTE .100 OFFSETFLANGETTE .100 OFFSET
-
83514352 BEARINGBEARING
-
97512377 BOLT, CARRIAGEBOLT, CARRIAGE
-
105134874 SUPPORT ENGINE (LEFT/REAR)SUPPORT ENGINE (LEFT/REAR)
-
111332279 JACKSHAFT ASSY, 15/21 SPLINE WITH BEARING (INCL. 8)JACKSHAFT ASSY, 15/21 SPLINE WITH BEARING (INCL. 8)
-
127710422 RING, RETAININGRING, RETAINING
-
132202842 FORGED DISC KITFORGED DISC KIT
-
145020588 SLEEVE, SEALSLEEVE, SEAL
-
155410613 O-RINGO-RING
-
167547180 NUT FLANGED, 3/8-16 NYLON ZNUT FLANGED, 3/8-16 NYLON Z
-
177518268 BOLT CARRIAGEBOLT CARRIAGE
-
185247680 FLANGETTE .100 OFFSETFLANGETTE .100 OFFSET
-
193514448 BEARING 25MM SPH OD LUBEBEARING 25MM SPH OD LUBE
-
205240013 WHEEL PICKUP, SPEEDOMETER (9T)WHEEL PICKUP, SPEEDOMETER (9T)
-
217518049 BOLT CARRIER 5/16BOLT CARRIER 5/16
-
227547030 PALNUTPALNUT
-
237542343 NUT, FLANGENUT, FLANGE
-
247555734 WASHER, FLATWASHER, FLAT
-
255246960 HOUSING DRIVE PICKUPHOUSING DRIVE PICKUP
-
267542324 NUT, NYLOKNUT, NYLOK
-
272410376 SENSOR SPEED PICKUPSENSOR SPEED PICKUP
-
287512232 BOLTBOLT
-
295811095 GASKET, JACKSHAFT (BLACK)GASKET, JACKSHAFT (BLACK)
-
307516733 SCREWSCREW
-
311014299 FLANGETTE WITH SCREWS ASSYFLANGETTE WITH SCREWS ASSY
-
321590392 DRIVESHAFT TUBULAR 9T ASSYDRIVESHAFT TUBULAR 9T ASSY
