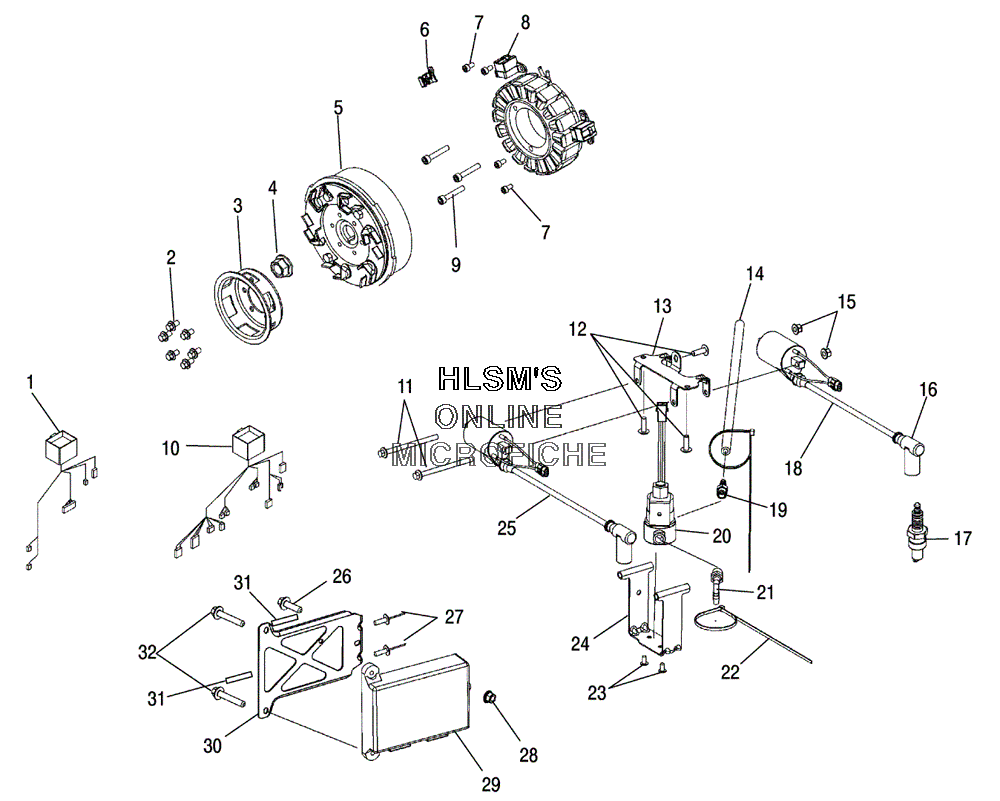

ELECTRICAL - MAGNETO ASSEMBLY W/ COIL для Polaris 900 SWITCHBACK (S05PS8DS) - 2005 года выпуска
-
№АртикулНазвание
-
14011107 HARNESS IGNITIONHARNESS IGNITION
-
27517278 SCREWSCREW
-
33021618 PULLEY STARTER, RECOILPULLEY STARTER, RECOIL
-
47518299 NUT FLANGENUT FLANGE
-
54011119 FLYWHEELFLYWHEEL
-
65435505 SHIELD WIRESHIELD WIRE
-
77517847 SCREW SOCKET CAPSCREW SOCKET CAP
-
84010727 STATORSTATOR
-
97517848 SCREW SOCKET CAPSCREW SOCKET CAP
-
104011106 HARNESS IGNITIONHARNESS IGNITION
-
117518407 SCREW, FLANGESCREW, FLANGE
-
127515199 SCREWSCREW
-
135248548 BRACKET ENGINE COILBRACKET ENGINE COIL
-
148450040-600 LINE FUEL (1/4 ID/600 CM)LINE FUEL (1/4 ID/600 CM)
-
157547274 NUT FLANGE, NYLOKNUT FLANGE, NYLOK
-
164020159 CAP, SPARK PLUGCAP, SPARK PLUG
-
173070190 SPARK PLUG CHAMPIONSPARK PLUG CHAMPION
-
184011104 COIL IGNITION, PTOCOIL IGNITION, PTO
-
197050001 FITTING 1/4" NPT TO 1/4" BARBFITTING 1/4" NPT TO 1/4" BARB
-
204011075 CONTROL VALVE EV SOLENOIDCONTROL VALVE EV SOLENOID
-
217050000 FITTING 1/4" NPT TO 1/4" BARBFITTING 1/4" NPT TO 1/4" BARB
-
227080138 CABLE TIECABLE TIE
-
237518321 BOLT PAN, TORXBOLT PAN, TORX
-
245248537 BRACKET EXHAUST, SOLENOIDBRACKET EXHAUST, SOLENOID
-
254011105 COIL IGNITION, MAGCOIL IGNITION, MAG
-
267515111 SCREWSCREW
-
277661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
287542153 NUT, NYLOK FLANGEDNUT, NYLOK FLANGED
-
294011081 ENGINE CONTROL UNITENGINE CONTROL UNIT
-
305247732 BRACKET ECUBRACKET ECU
-
315810290 PAD, BATTERYPAD, BATTERY
-
327516827 SCREWSCREW
