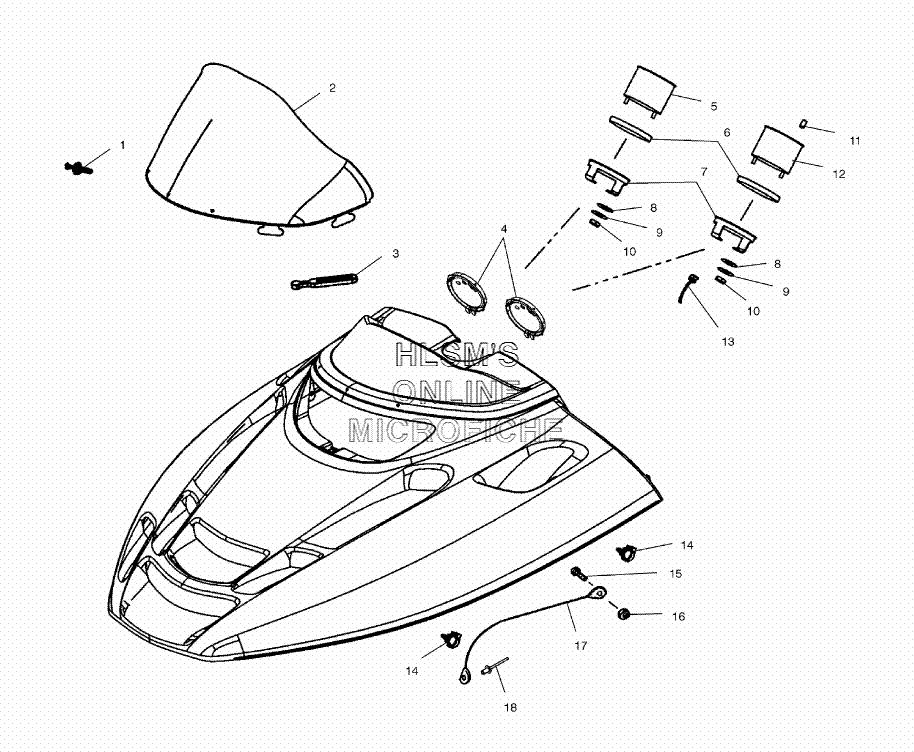

WINDSHIELD W/ GUAGES AND HOOD RETAINER для Polaris 440 PRO X (S02NX4CS) - 2002 года выпуска`
-
№АртикулНазвание
-
17621509 RIVET, PLASTIC LOC.RIVET, PLASTIC LOC.
-
25434617 WINDSHIELD (7'' CHROME RACE)WINDSHIELD (7'' CHROME RACE)
-
35410970 RETAINER, WINDSHIELDRETAINER, WINDSHIELD
-
45433960 PLUG, DASH (5'')PLUG, DASH (5'')
-
53280329 TACH (6 P, WHITE W/FUEL LT)TACH (6 P, WHITE W/FUEL LT)
-
54030015 BULB TAILLIGHT/TACH/SPEEDOBULB TAILLIGHT/TACH/SPEEDO
-
63280209 CUSHION, TACH/SPEEDO RUBBERCUSHION, TACH/SPEEDO RUBBER
-
73280210 BRACKET, TACH/SPEEDO (5'')BRACKET, TACH/SPEEDO (5'')
-
83280157 WASHER, FLATWASHER, FLAT
-
93280156 WASHER, SPLIT LOCKWASHER, SPLIT LOCK
-
103280158 NUTNUT
-
113280186 KNOB, TRIP ODOMETER (LEFT) THD.KNOB, TRIP ODOMETER (LEFT) THD.
-
123280348 SPEEDO (5'', 120MPH, WH, W/OANG)SPEEDO (5'', 120MPH, WH, W/OANG)
-
124030015 BULB TAILLIGHT/TACH/SPEEDOBULB TAILLIGHT/TACH/SPEEDO
-
133280385 CABLE, SPEEDOMETERCABLE, SPEEDOMETER
-
144010589 CLIP, PLASTIC DART NYLONCLIP, PLASTIC DART NYLON
-
157512018 SCREWSCREW
-
167541925 NUTNUT
-
177080521 CABLE, HOOD RETAINERCABLE, HOOD RETAINER
-
187661637 RIVET, INTERLOCKRIVET, INTERLOCK
