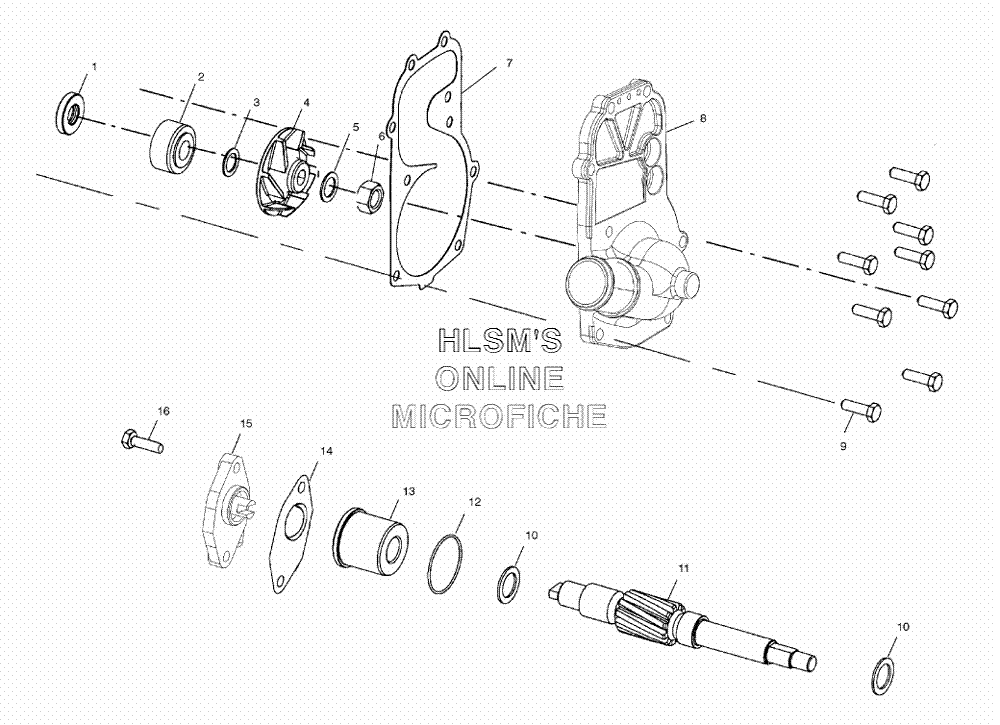

WATER PUMP/OIL PUMP для Polaris 440 PRO X (S02NX4CS) - 2002 года выпуска
-
№АртикулНазвание
-
15411197 SEAL, TYPE (S, ARS)SEAL, TYPE (S, ARS)
-
23610067 SEAL, WATERPUMPSEAL, WATERPUMP
-
37556006 WASHER, FLAT S.S.WASHER, FLAT S.S.
-
45432330 IMPELLER, WATERPUMPIMPELLER, WATERPUMP
-
57555874 WASHER, FLAT, S.S.WASHER, FLAT, S.S.
-
67546804 NUT, HEXNUT, HEX
-
75811601 GASKET, WATERPUMP COVERGASKET, WATERPUMP COVER
-
85630920 COVER, WATERPUMP (SNOW HI FLOW)COVER, WATERPUMP (SNOW HI FLOW)
-
97516822 SCREWSCREW
-
107555977 WASHER, THRUSTWASHER, THRUST
-
115131855 DRIVESHAFT, WATER/OIL PUMPDRIVESHAFT, WATER/OIL PUMP
-
125411196 O-RINGO-RING
-
135010391 BEARING, PUMP SHAFT FLANGEDBEARING, PUMP SHAFT FLANGED
-
145811789 GASKET, OIL PUMPGASKET, OIL PUMP
-
155245940 COVER, CASE OIL PUMPCOVER, CASE OIL PUMP
-
167517277 SCREWSCREW
