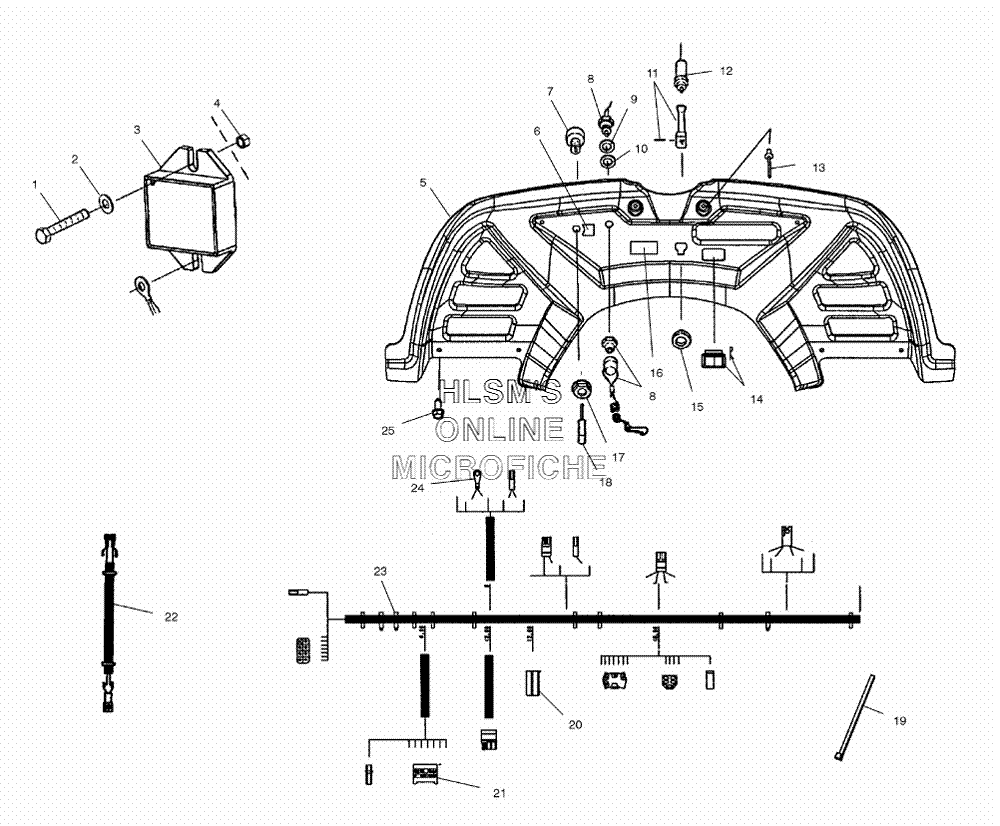

CONSOLE для Polaris 440 PRO X (S02NX4CS) - 2002 года выпуска
-
№АртикулНазвание
-
17512031 BOLTBOLT
-
27555904 BURR, RIVETBURR, RIVET
-
34010301 REGULATOR (AC, 14.3 V)REGULATOR (AC, 14.3 V)
-
47541925 NUTNUT
-
55434415 CONSOLE, EDGE, RACERCONSOLE, EDGE, RACER
-
67079418 DECAL, CONSOLE, OCTANEDECAL, CONSOLE, OCTANE
-
72201614 IGNITION SWITCH KIT (ES, FUEL)IGNITION SWITCH KIT (ES, FUEL)
-
84010187 SWITCH, TETHER HYBRIDSWITCH, TETHER HYBRID
-
97558707 BUSHING, MACH.BUSHING, MACH.
-
107556212 WASHERWASHER
-
112201439 CHOKE LEVER KIT [INCL. PIN]CHOKE LEVER KIT [INCL. PIN]
-
127080753 CABLE, CHOKE (TM38, DUAL) [INCL. 10, 14]CABLE, CHOKE (TM38, DUAL) [INCL. 10, 14]
-
137621432 RIVETRIVET
-
144110263 SWITCH, HEATER, HI/LOSWITCH, HEATER, HI/LO
-
147661124 HAIRPIN, COTTER (3/16, 1/4)HAIRPIN, COTTER (3/16, 1/4)
-
155432944 NUT, CHOKENUT, CHOKE
-
167170382 DECAL, OIL, PREMIX RACEDECAL, OIL, PREMIX RACE
-
177547035 NUT, IGNITIONNUT, IGNITION
-
189990000 CAP W/KEYCAP W/KEY
-
197080138 CABLE TIECABLE TIE
-
204020063 HOUSINGHOUSING
-
214020057 HOUSING W/RECEPTACLEHOUSING W/RECEPTACLE
-
224010701 JUMPER, BRAKE SWITCHJUMPER, BRAKE SWITCH
-
232461012 HARNESS, MAIN TPSHARNESS, MAIN TPS
-
244020092 TERMINAL, RINGTERMINAL, RING
-
257515199 SCREWSCREW
