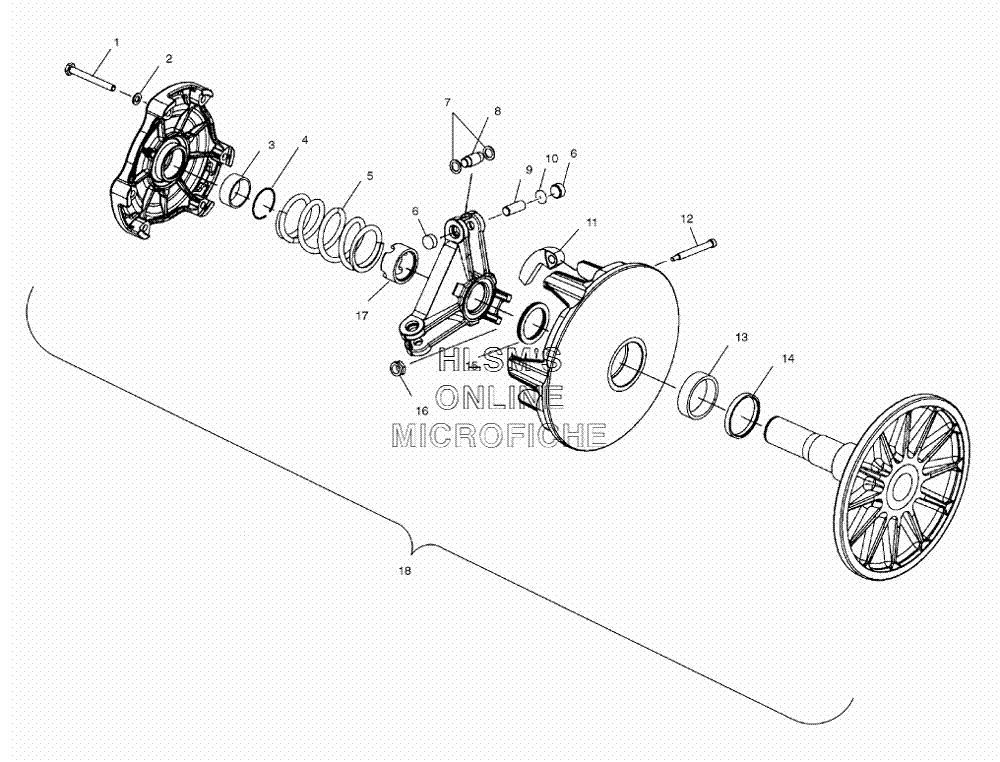

CLUTCH - DRIVE для Polaris 440 PRO X (S02NX4CS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    7512265 BOLT
    BOLT
  • 2
    7552801 LOCK WASHER
    LOCK WASHER
  • 3
    3576516 COVER, BEARING GARMAX
    COVER, BEARING GARMAX
  • 4
    7710417 RING, RETAINING BOLT
    RING, RETAINING BOLT
  • 5
    7041988 SPRING, CLUTCH DRIVE ALMOND/RED
    SPRING, CLUTCH DRIVE ALMOND/RED
  • 6
    5430445 BUTTON, GUIDE
    BUTTON, GUIDE
  • 7
    5430945 WASHER
    WASHER
  • 8
    1321622 ROLLER AND BUSHING ASSY.
    ROLLER AND BUSHING ASSY.
  • 9
    5133079 PIN, ROLLER (1'' SBN)
    PIN, ROLLER (1'' SBN)
  • 10
    2200387 SHIM, DRIVE CLUTCH KIT
    SHIM, DRIVE CLUTCH KIT
  • 11
    1321731 WT/BUSH. ASSY. (S, 51, H, RED 3) (HIGH OCTANE)
    WT/BUSH. ASSY. (S, 51, H, RED 3) (HIGH OCTANE)
  • 11
    1321730 WEIGHT/BUSHING ASSY. (S, 49H 3) (92 OCTANE HEAD KIT)
    WEIGHT/BUSHING ASSY. (S, 49H 3) (92 OCTANE HEAD KIT)
  • 12
    7515105 PIN, WT. HARDENED
    PIN, WT. HARDENED
  • 13
    3576502 SLEEVE, BEARING
    SLEEVE, BEARING
  • 14
    5010188 BUSHING, RETAINER
    BUSHING, RETAINER
  • 15
    5210754 SPACER [.050MM]
    SPACER [.050MM]
  • 15
    5210753 SPACER [.032MM]
    SPACER [.032MM]
  • 15
    5242981 SPACER [.025MM]
    SPACER [.025MM]
  • 15
    5210752 SPACER [.020MM]
    SPACER [.020MM]
  • 16
    7541906 NUT FLEX LOC
    NUT FLEX LOC
  • 17
    5020425 NUT, JAM
    NUT, JAM
  • 18
    1322058 DRIVE CLUTCH, BASIC ASSY. (#210, W/B) [INCL. ALL LESS 5, 11]
    DRIVE CLUTCH, BASIC ASSY. (#210, W/B) [INCL. ALL LESS 5, 11]
