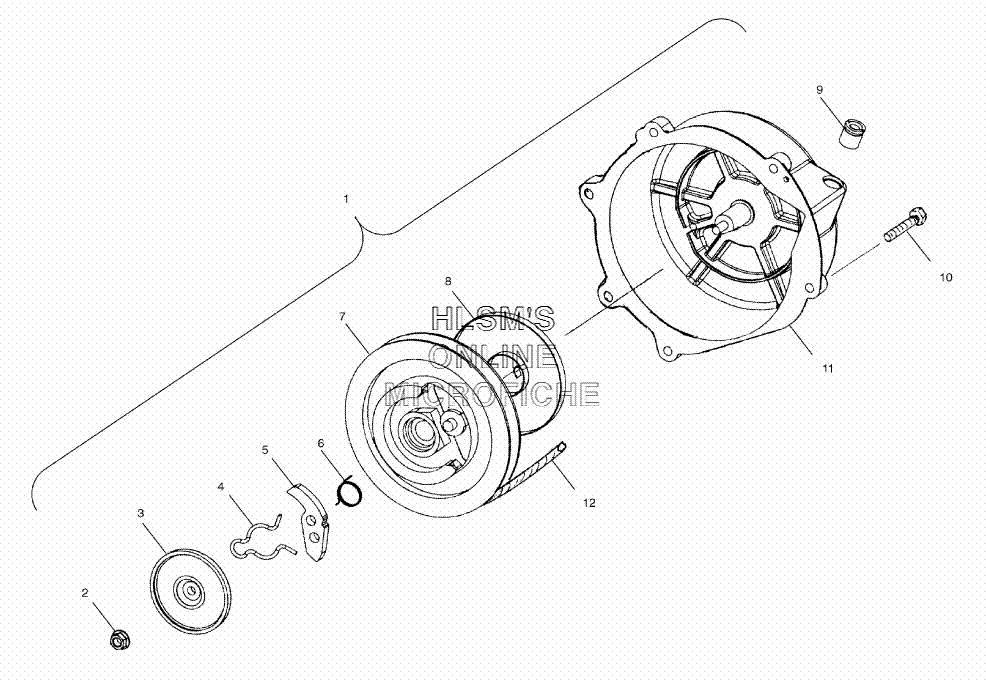

STARTER - RECOIL ASSEMBLY для Polaris 440 PRO X (S02NX4CS) - 2002 года выпуска`
-
№АртикулНазвание
-
11202382 RECOIL ASSY. (44, 44 W/HOLES) [INCL. 2, 8, 11, 12]RECOIL ASSY. (44, 44 W/HOLES) [INCL. 2, 8, 11, 12]
-
23083381 NUT, FLANGENUT, FLANGE
-
33083464 PLATE, FRICTIONPLATE, FRICTION
-
43083379 SPRING, FRICTIONSPRING, FRICTION
-
53040165 RATCHETRATCHET
-
63083463 SPRING, RETURNSPRING, RETURN
-
73040168 REELREEL
-
83083376 SPRING, SPIRALSPRING, SPIRAL
-
93083107 GUIDE, ROPEGUIDE, ROPE
-
107516827 SCREWSCREW
-
111201815 RECOIL ASSY.RECOIL ASSY.
-
123040169 ROPE, STARTERROPE, STARTER
