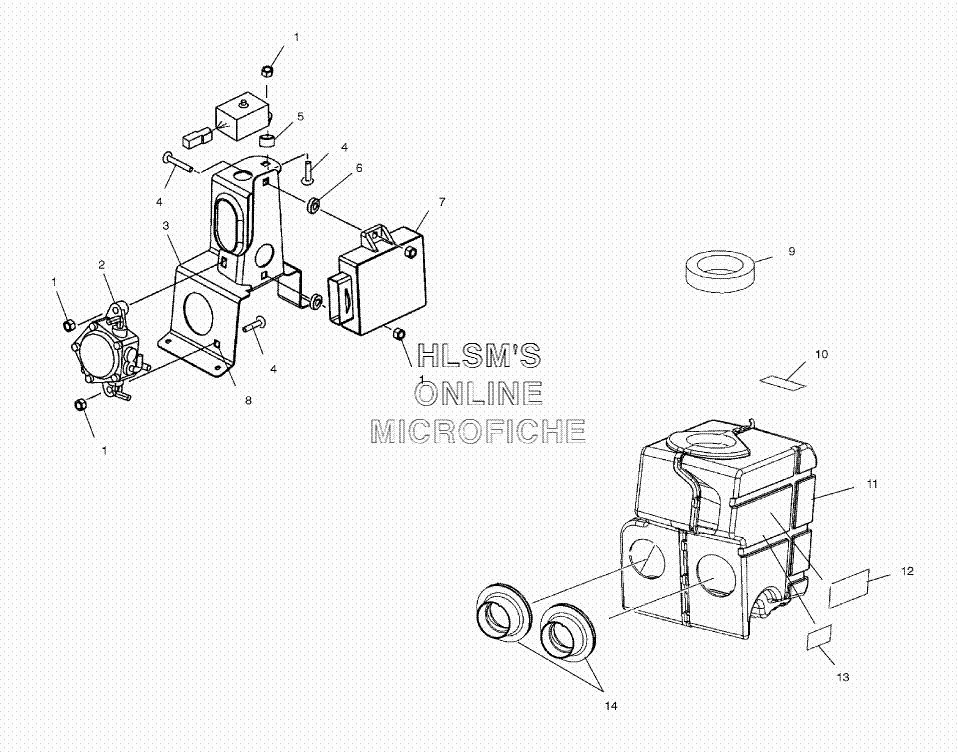

AIR BOX для Polaris 440 PRO X (S02NX4CS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    7542122 NUT, LOCK
    NUT, LOCK
  • 2
    2520134 FUEL PUMP ASSY. [SEE ENGINE MOUNTING]
    FUEL PUMP ASSY. [SEE ENGINE MOUNTING]
  • 3
    5245802 BRACKET, CDI
    BRACKET, CDI
  • 4
    7512263 BOLT, CARRIAGE
    BOLT, CARRIAGE
  • 5
    5431928 BUMPER, CLUTCHGUARD
    BUMPER, CLUTCHGUARD
  • 6
    5431928 BUMPER, CLUTCHGUARD
    BUMPER, CLUTCHGUARD
  • 7
    2202157 CDI KIT [SEE MAGNETO]
    CDI KIT [SEE MAGNETO]
  • 8
    7670021 SPEED NUT
    SPEED NUT
  • 9
    5811983 FOAM AIR BOX, CHIMNEY EDGE
    FOAM AIR BOX, CHIMNEY EDGE
  • 10
    7075351 DECAL, CAUTION AIR BOX
    DECAL, CAUTION AIR BOX
  • 11
    1253477 AIR BOX SILENCER ASSY., 440 RACE [INCL. DECALS]
    AIR BOX SILENCER ASSY., 440 RACE [INCL. DECALS]
  • 12
    7073820 DECAL, ADJ. DRIVEN CLUTCH
    DECAL, ADJ. DRIVEN CLUTCH
  • 13
    7073426 DECAL, GREASING
    DECAL, GREASING
  • 14
    5412072 BOOT, CARB TMX RACE
    BOOT, CARB TMX RACE
