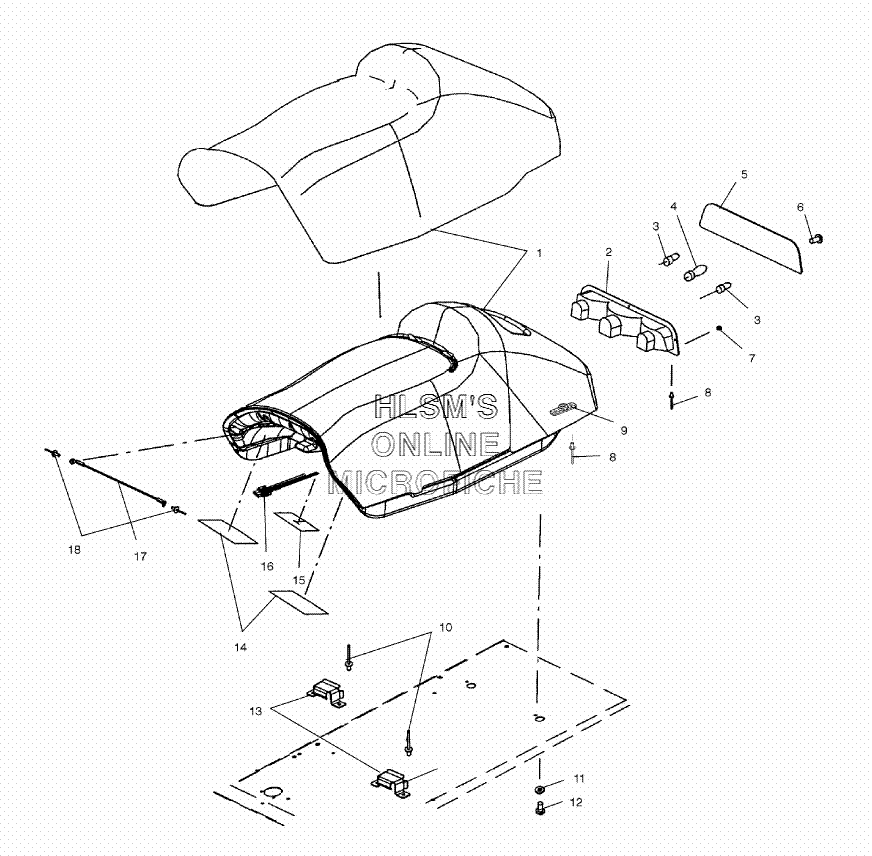

SEAT для Polaris 440 PRO X (S02NX4CS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1A
    2682893 SEAT ASSY., EDGE RACER [INCL. 2, 9, 14, 18]
    SEAT ASSY., EDGE RACER [INCL. 2, 9, 14, 18]
  • 1
    2683016 SEAT COVER ASSY., EDGE, PRO X
    SEAT COVER ASSY., EDGE, PRO X
  • 2
    5433341 HOUSING, TAILLIGHT
    HOUSING, TAILLIGHT
  • 3
    4030024 BULB, TAILLIGHT
    BULB, TAILLIGHT
  • 4
    4030045 BULB, BRAKELIGHT
    BULB, BRAKELIGHT
  • 5
    5430423 LENS, TAILLIGHT
    LENS, TAILLIGHT
  • 6
    7511840 SCREW
    SCREW
  • 7
    7555727 RIVET BURR
    RIVET BURR
  • 8
    7621307 RIVET
    RIVET
  • 9
    5631194 NUT, SEAT
    NUT, SEAT
  • 10
    7661637 RIVET, INTERLOCK
    RIVET, INTERLOCK
  • 11
    7558301 WASHER
    WASHER
  • 12
    7515159 SCREW
    SCREW
  • 13
    5245995 BRACKET, HOLDDOWN SEAT RACER
    BRACKET, HOLDDOWN SEAT RACER
  • 14
    5812289 PATCH (3.00 X 4.00)
    PATCH (3.00 X 4.00)
  • 15
    5812291 GASKET, WIRE HARNESS
    GASKET, WIRE HARNESS
  • 16
    2460399 HARNESS, TAILLIGHT
    HARNESS, TAILLIGHT
  • 17
    7081052 CABLE, SEAT BASE RETENSION (12.5)
    CABLE, SEAT BASE RETENSION (12.5)
  • 18
    7621467 RIVET, BLIND
    RIVET, BLIND
