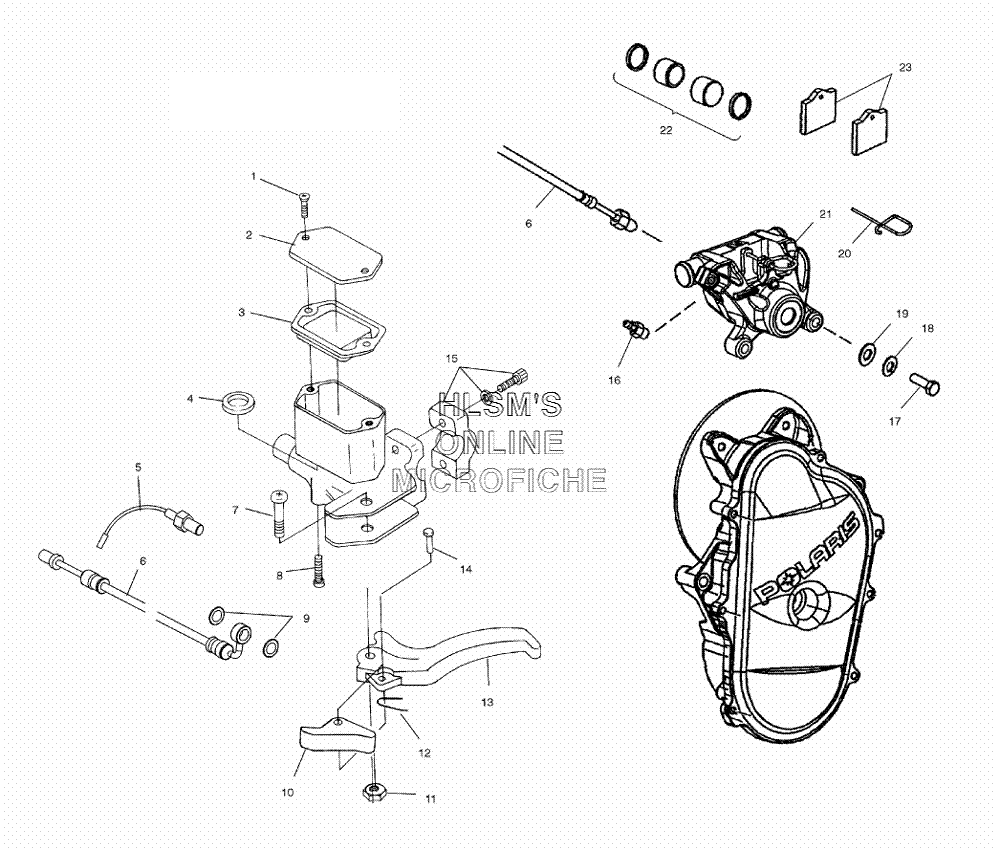

BRAKE ASSEMBLY для Polaris 440 PRO X (S02NX4CS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1A
    2010207 MASTER CYL. ASSY. (5/8 WILWOOD) [INCL. 1, 4, 7, 8, 10, 15]
    MASTER CYL. ASSY. (5/8 WILWOOD) [INCL. 1, 4, 7, 8, 10, 15]
  • 1B
    2200809 MASTER CYL. KIT, RES. [INCL. 1, 2, 3, 4]
    MASTER CYL. KIT, RES. [INCL. 1, 2, 3, 4]
  • 1
    1930797 BOLT, RES.CAP, MASTER CYL. KIT
    BOLT, RES.CAP, MASTER CYL. KIT
  • 2
    1930796 CAP, MASTER CYL. RES.
    CAP, MASTER CYL. RES.
  • 3
    1930795 DIAPHRAGM, MASTER CYL. RES.
    DIAPHRAGM, MASTER CYL. RES.
  • 5
    4010656 SWITCH, PRESSURE BRAKE
    SWITCH, PRESSURE BRAKE
  • 6
    1910602 LINE, BRAKE, BRAIDED
    LINE, BRAKE, BRAIDED
  • 7
    1930805 BOLT, MASTER CYL. HANDLE PIVOT
    BOLT, MASTER CYL. HANDLE PIVOT
  • 8
    1930792 BOLT, MASTER CYL.RESERVOIR KIT
    BOLT, MASTER CYL.RESERVOIR KIT
  • 9
    5410988 SEAL
    SEAL
  • 10
    2201090 LEVER, PARKBRAKE KIT [INCL. 12, 14]
    LEVER, PARKBRAKE KIT [INCL. 12, 14]
  • 11
    1930806 NUT, MASTER CYL. HANDLE PIVOT
    NUT, MASTER CYL. HANDLE PIVOT
  • 13
    2201921 LEVER, BRAKE EDGE KIT [INCL. 11, 14]
    LEVER, BRAKE EDGE KIT [INCL. 11, 14]
  • 14
    1930804 RIVET
    RIVET
  • 15
    2200808 MASTER CYL. CLAMP KIT
    MASTER CYL. CLAMP KIT
  • 16
    2202205 BLEEDER FITTING KIT
    BLEEDER FITTING KIT
  • 17
    7515534 BOLT
    BOLT
  • 18
    7552603 WASHER
    WASHER
  • 19
    7556160 WASHER (.380X.813X.150)
    WASHER (.380X.813X.150)
  • 20
    2202206 PIN RETAINING KIT
    PIN RETAINING KIT
  • 21
    2202390 BRAKE CALIPER KIT ASSY. (L/C, LR81) [INCL. BRAKE PAD]
    BRAKE CALIPER KIT ASSY. (L/C, LR81) [INCL. BRAKE PAD]
  • 22
    2202207 PISTON/SEAL KIT
    PISTON/SEAL KIT
  • 22
    2202204 SEAL KIT
    SEAL KIT
  • 23
    2202202 BRAKE PAD KIT (TYPE 81)
    BRAKE PAD KIT (TYPE 81)
