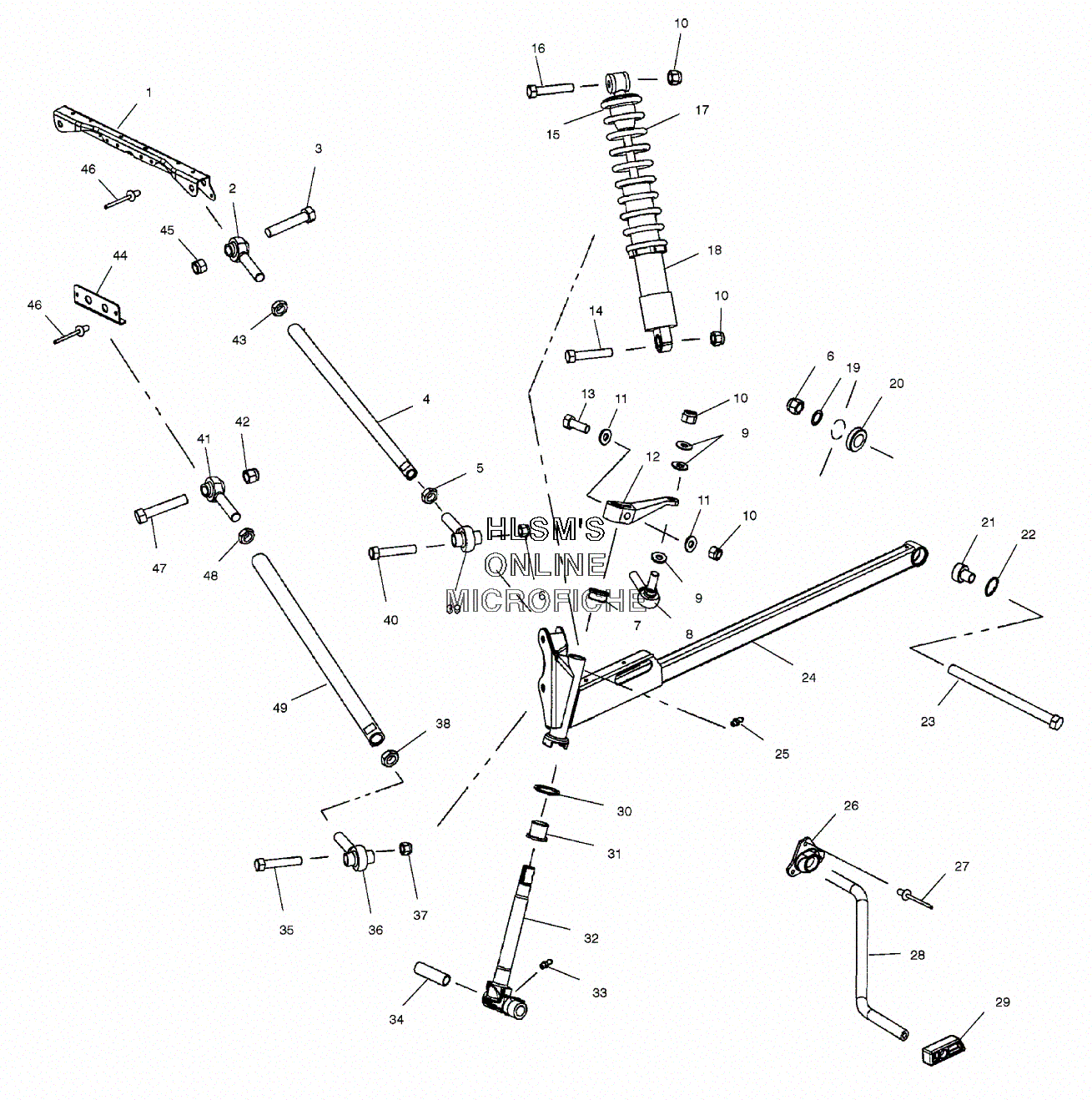

SUSPENSION - FRONT для Polaris XCF SP EDGE (S01NX4FS) - 2001 года выпуска
-
№АртикулНазвание
-
15245237-067 BRACKET, RADIUS ROD, SUPPORT, REINFORCEMENT (BLK)BRACKET, RADIUS ROD, SUPPORT, REINFORCEMENT (BLK)
-
27061077 ROD END, RADIUS (LEFT) (7/16) (1.05W)ROD END, RADIUS (LEFT) (7/16) (1.05W)
-
37512530 SCREWSCREW
-
45333984-293 TUBE, RADIUS ROD (UPPER/RED)TUBE, RADIUS ROD (UPPER/RED)
-
57542520 NUT JAMNUT JAM
-
67547066 NUT, 7/16, 20, NYLOKNUT, 7/16, 20, NYLOK
-
73573909 BUSHING, FLANGEBUSHING, FLANGE
-
87061057 ROD, END (3/8, PL, 75Ш, 1.00) (RIGHT)ROD, END (3/8, PL, 75Ш, 1.00) (RIGHT)
-
97555797 WASHERWASHER
-
107542439 NUT, NYLOKNUT, NYLOK
-
117555832 WASHERWASHER
-
125132912 ARM, STEERING, MACHINED (EDGE R)ARM, STEERING, MACHINED (EDGE R)
-
137515433 BOLTBOLT
-
147517583 SCREWSCREW
-
155020618 RETAINER, SPRING, SLOTTEDRETAINER, SPRING, SLOTTED
-
167515415 BOLTBOLT
-
177042051-293 COMP, SPRING (RED)COMP, SPRING (RED)
-
187041990 SHOCK, IFS, IFP, ALUM, ARVINSHOCK, IFS, IFP, ALUM, ARVIN
-
197555820 WASHERWASHER
-
205132364 CUP, TRAILING ARM MNTCUP, TRAILING ARM MNT
-
217061016 BEARING, SHERICAL, NYLON (7/16)BEARING, SHERICAL, NYLON (7/16)
-
227710437 RING, RETAININGRING, RETAINING
-
237512099 BOLTBOLT
-
241821039-293 TRAILING ARM ASSY. (LEFT/RED) (INCL. 21, 22)TRAILING ARM ASSY. (LEFT/RED) (INCL. 21, 22)
-
241821040-293 TRAILING ARM ASSY. (RIGHT/RED) (INCL. 21, 22)TRAILING ARM ASSY. (RIGHT/RED) (INCL. 21, 22)
-
257080433 ZERK, FITTING, THREADEDZERK, FITTING, THREADED
-
265433234 BUSHING, TORSION BARBUSHING, TORSION BAR
-
277621477 RIVET,RIVET,
-
285245340-067 BAR, TORSION (1/2) (425.5'') (BLK)BAR, TORSION (1/2) (425.5'') (BLK)
-
295434129 SLIDE, TORSION BAR (1/2)SLIDE, TORSION BAR (1/2)
-
307556509 WASHER SPECIALWASHER SPECIAL
-
313574208 BUSHING, SPINDLE HOUSINGBUSHING, SPINDLE HOUSING
-
326230206-067 SHAFT, SPINDLE, HARD, STOPS (BLK)SHAFT, SPINDLE, HARD, STOPS (BLK)
-
337080306 FITTING, LUBE.W/BALL CHECKFITTING, LUBE.W/BALL CHECK
-
345132935 BUSHING, SKI/SPINDLE (3X3/8X.625)BUSHING, SKI/SPINDLE (3X3/8X.625)
-
357517906 BOLTBOLT
-
367061080 ROD END, W/RADIUS (RIGHT) (1/2, 1.05)ROD END, W/RADIUS (RIGHT) (1/2, 1.05)
-
377547065 NUT, 1/2, 20, NYLOKNUT, 1/2, 20, NYLOK
-
387542711 NUT, JAMNUT, JAM
-
397061078 ROD END, RAD (RIGHT) (7/16, 1.05W)ROD END, RAD (RIGHT) (7/16, 1.05W)
-
407517907 BOLTBOLT
-
417061079 ROD END, RADIUS (LEFT) (1/2, 1.05W)ROD END, RADIUS (LEFT) (1/2, 1.05W)
-
427542703 NUT FLEXNUT FLEX
-
437547117 NUTNUT
-
445245250 BRACKET, RADIUS ROD, STRAP (LOWER)BRACKET, RADIUS ROD, STRAP (LOWER)
-
457542503 NUT, LOCK,NUT, LOCK,
-
467661637 RIVET, INTERLOCK, ZRIVET, INTERLOCK, Z
-
477512656 BOLTBOLT
-
487547028 NUT JAM (LEFT)NUT JAM (LEFT)
-
495333985-293 TUBE, RADIUS ROD (LOWER/RED)TUBE, RADIUS ROD (LOWER/RED)
