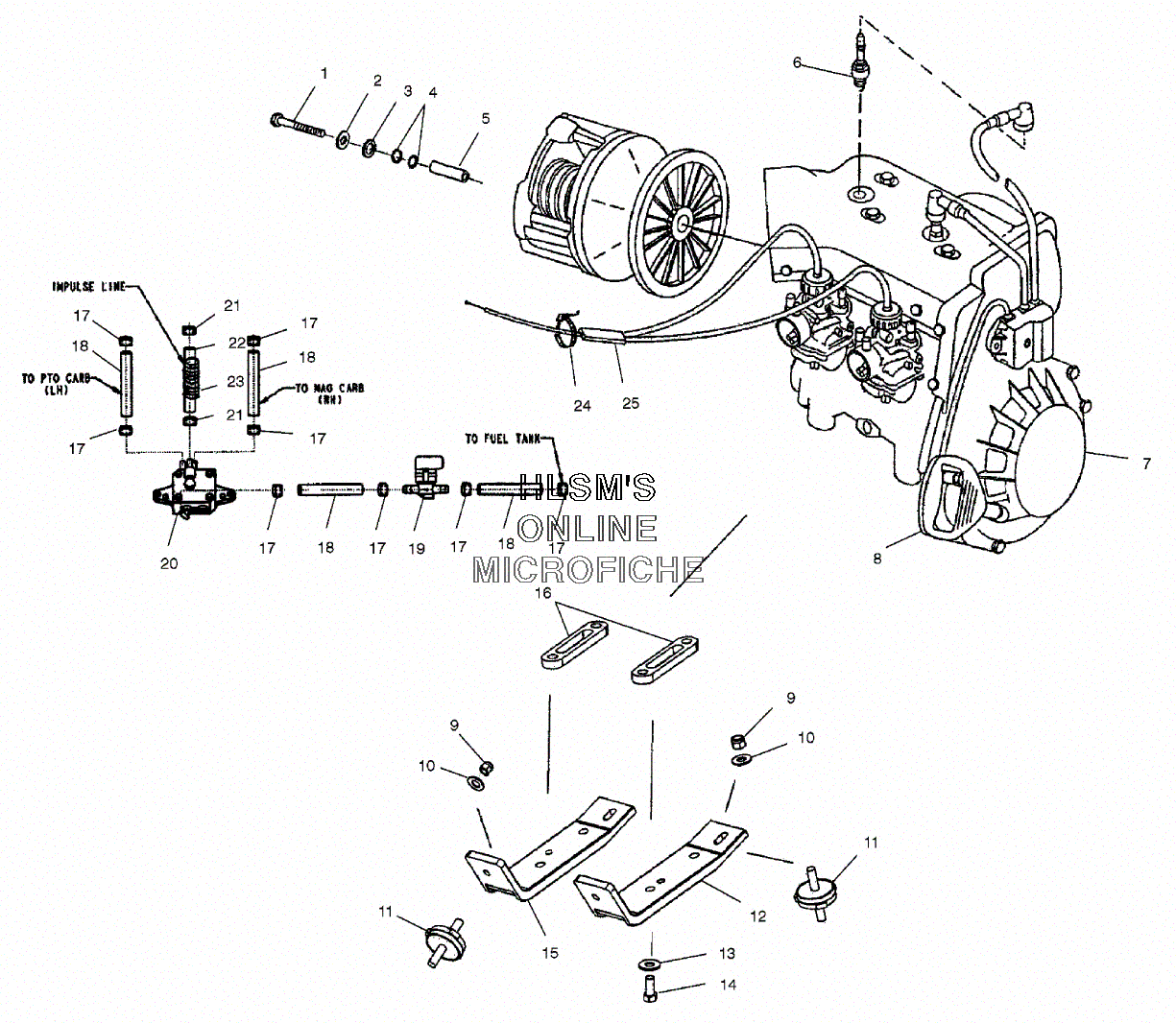

ENGINE MOUNTING W/ SHORT BLOCK для Polaris XCF SP EDGE (S01NX4FS) - 2001 года выпуска`
-
№АртикулНазвание
-
17517776 SCREWSCREW
-
27575202 WASHER LOCKWASHER LOCK
-
35010287 WASHER, CLUTCH RETAIN.WASHER, CLUTCH RETAIN.
-
45410507 O-RINGO-RING
-
55020513 SPACER, CLUTCH BOLTSPACER, CLUTCH BOLT
-
63070163 SPARKPLUG BR9ESSPARKPLUG BR9ES
-
73085944 ENGINE, SHORT BLOCK ASSY. (SEE NOTE)ENGINE, SHORT BLOCK ASSY. (SEE NOTE)
-
85431499 HANDLE, RECOILHANDLE, RECOIL
-
97542451 NUT, NYLOCNUT, NYLOC
-
107555893 WASHER, FLATWASHER, FLAT
-
113021116 MOUNT, ENGINE (3/8-16,65 DUR)MOUNT, ENGINE (3/8-16,65 DUR)
-
125245276 STRAP, ENGINE 440 FAN (RIGHT)STRAP, ENGINE 440 FAN (RIGHT)
-
137553101 WASHER LOCKWASHER LOCK
-
147517911 SCREWSCREW
-
155245275 STRAP, ENGINE (440 FAN) (LEFT)STRAP, ENGINE (440 FAN) (LEFT)
-
165245389 SPACER, ENGINE (1.19)SPACER, ENGINE (1.19)
-
177080307 CLAMPCLAMP
-
188350018-600 TUBING, ETHER ERETHNE (160CM)TUBING, ETHER ERETHNE (160CM)
-
197052248 VALVE, FUEL, PLASTIC, INLINE (1/4'')VALVE, FUEL, PLASTIC, INLINE (1/4'')
-
217080003 CLAMP, HOSECLAMP, HOSE
-
228450040-600 FUEL LINE (1/4 ID) (600 CM.)FUEL LINE (1/4 ID) (600 CM.)
-
238360052-15 HOSEHOSE
-
247080138 STRAP PANDUITSTRAP PANDUIT
-
257080916 CABLE, THROTTLECABLE, THROTTLE
