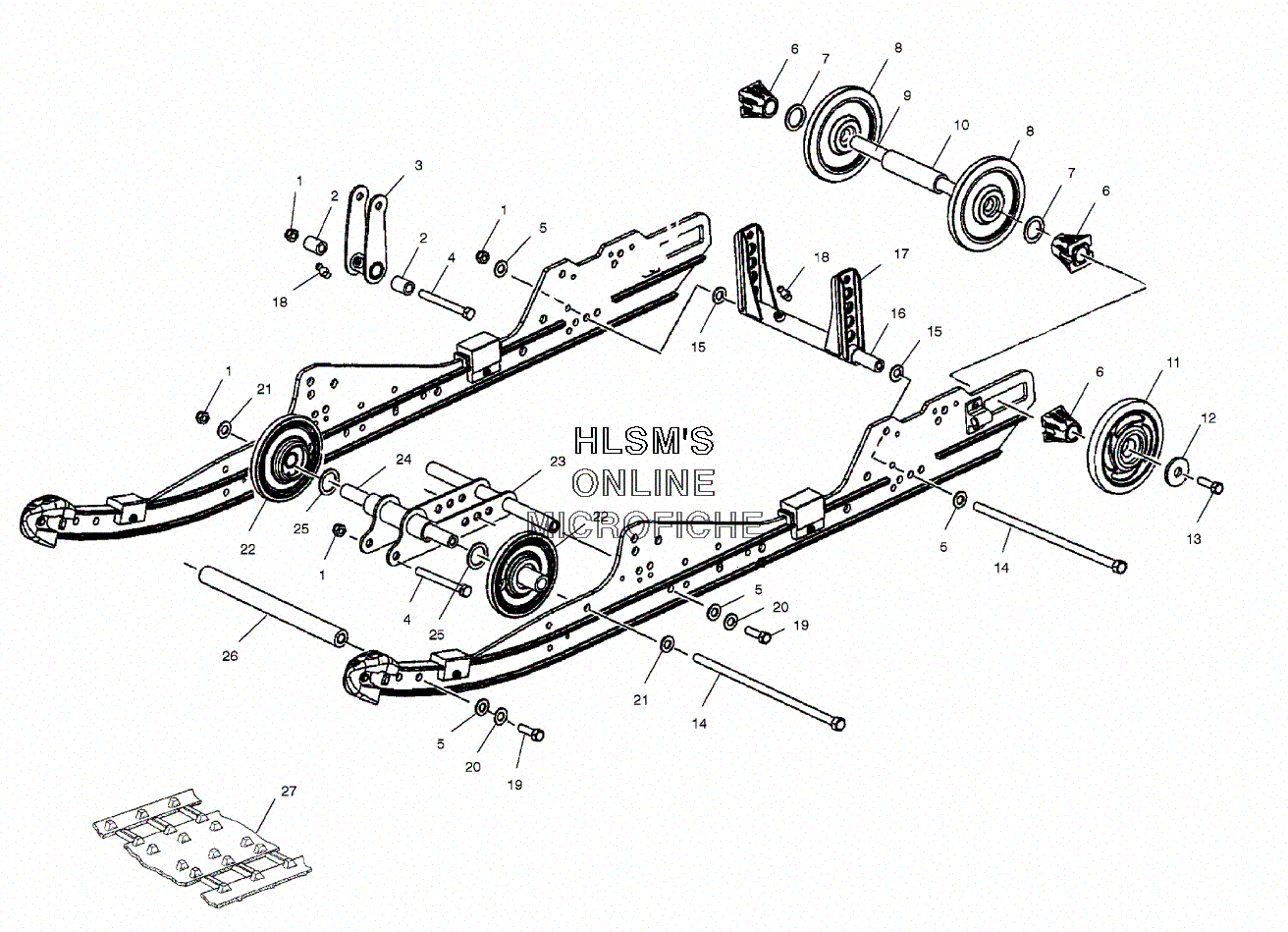

RAIL ASSEMBLY W/ IDLER WHEELS #2 для Polaris XCF SP EDGE (S01NX4FS) - 2001 года выпуска
-
№АртикулНазвание
-
17542439 NUT, NYLOKNUT, NYLOK
-
25131940 BUSHINGBUSHING
-
31541638-067 WELD, SHOCK PIVOT ARM (3.50) (BLK)WELD, SHOCK PIVOT ARM (3.50) (BLK)
-
47515417 BOLTBOLT
-
57555806 WASHERWASHER
-
65432535 SPACER, IDLERSPACER, IDLER
-
77555918 BUSHINGBUSHING
-
81594087 WHEEL ASSY., PLAIN(6.38 O.D.)WHEEL ASSY., PLAIN(6.38 O.D.)
-
95132066 SHAFT, IDLER (.784X13.22, 7075)SHAFT, IDLER (.784X13.22, 7075)
-
105333283 SPACER, IDLER (CENTER)SPACER, IDLER (CENTER)
-
111590303-293 WHEEL, IDLER, HP (RED)WHEEL, IDLER, HP (RED)
-
117710444 RING, RETAININGRING, RETAINING
-
113514012 BEARINGBEARING
-
127556130 WASHERWASHER
-
137517731 BOLTBOLT
-
147517353 SCREWSCREW
-
157555893 WASHERWASHER
-
165334026 SHAFT, ANODIZE (.740X.390X8.490)SHAFT, ANODIZE (.740X.390X8.490)
-
171541625-067 WELD, PIVOT ARM (4.25) (REAR/BLK)WELD, PIVOT ARM (4.25) (REAR/BLK)
-
187080424 FITTING, LUBEFITTING, LUBE
-
197517247 SCREWSCREW
-
207552603 WASHERWASHER
-
217555797 WASHERWASHER
-
221541642 WHEEL ASSY., 5.62 W/HOLEWHEEL ASSY., 5.62 W/HOLE
-
231541463-067 SHOCK MOUNT (BLK)SHOCK MOUNT (BLK)
-
245132490 SHAFT (.390X.750X.8665)SHAFT (.390X.750X.8665)
-
257556301 MACHINERY BUSHINGMACHINERY BUSHING
-
265020723 SHAFT, PIVOT ARMSHAFT, PIVOT ARM
-
275411475 TRACK (121X15, .82) (LIGHTNING)TRACK (121X15, .82) (LIGHTNING)
-
275241473 CLIP, SLIDECLIP, SLIDE
-
275241474 CLIP, GUIDECLIP, GUIDE
