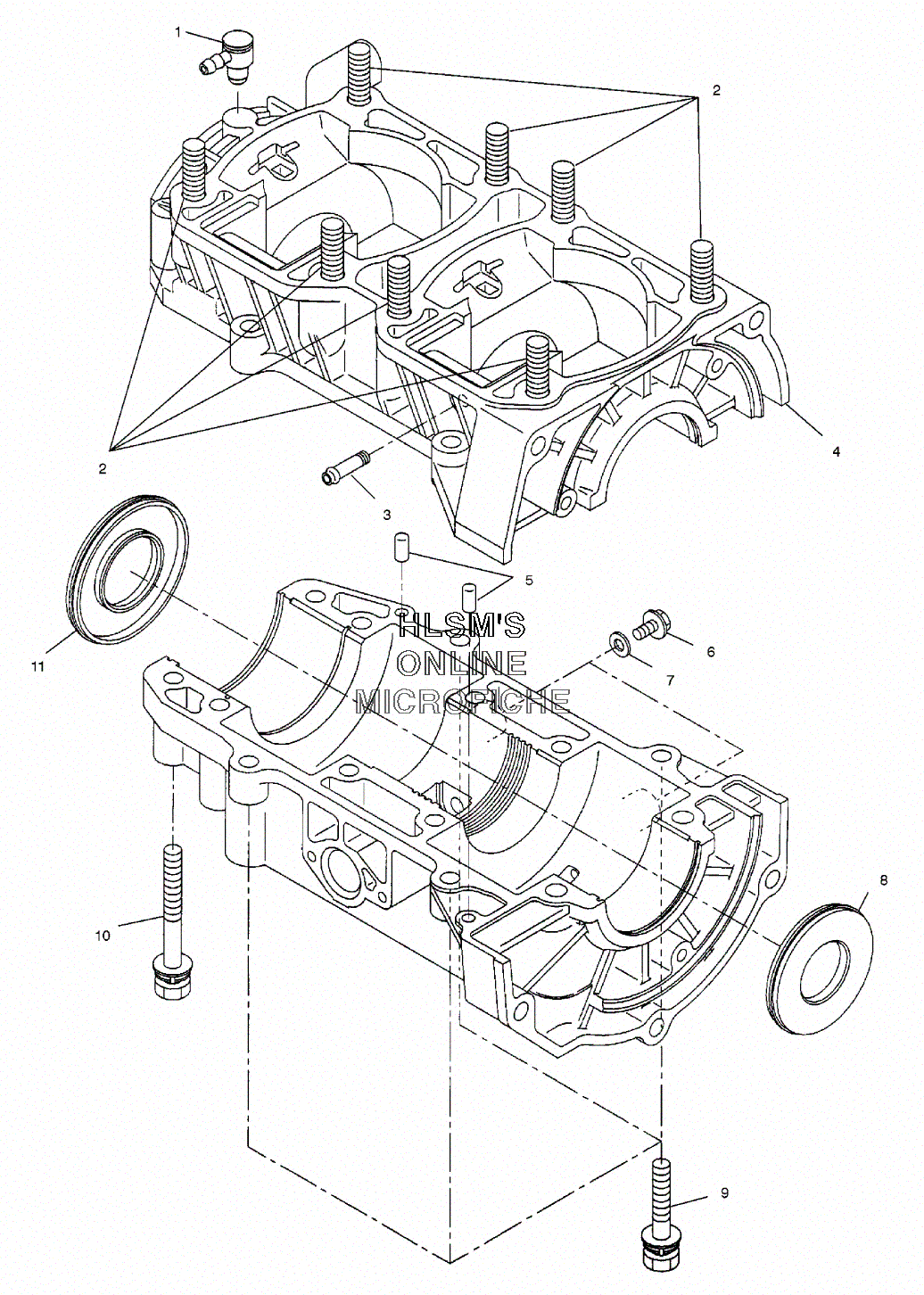

CRANKCASE ASSEMBLY для Polaris XCF SP EDGE (S01NX4FS) - 2001 года выпуска
-
№АртикулНазвание
-
13085462 NIPPLE, ELBOWNIPPLE, ELBOW
-
23085713 STUDSTUD
-
33083798 PIPE, PULSE (PULSE)PIPE, PULSE (PULSE)
-
43087108 CRANKCASE ASSY. (INCL. 2, 5, 9, 10)CRANKCASE ASSY. (INCL. 2, 5, 9, 10)
-
53080103 PIN, DOWELPIN, DOWEL
-
63083568 BOLT, FLANGEBOLT, FLANGE
-
73082758 WASHER, FLATWASHER, FLAT
-
83085664 SEAL, OILSEAL, OIL
-
93084225 BOLT AND WASHER ASSY.BOLT AND WASHER ASSY.
-
103084670 BOLT AND WASHER ASSY.BOLT AND WASHER ASSY.
-
113085663 SEAL, OILSEAL, OIL
