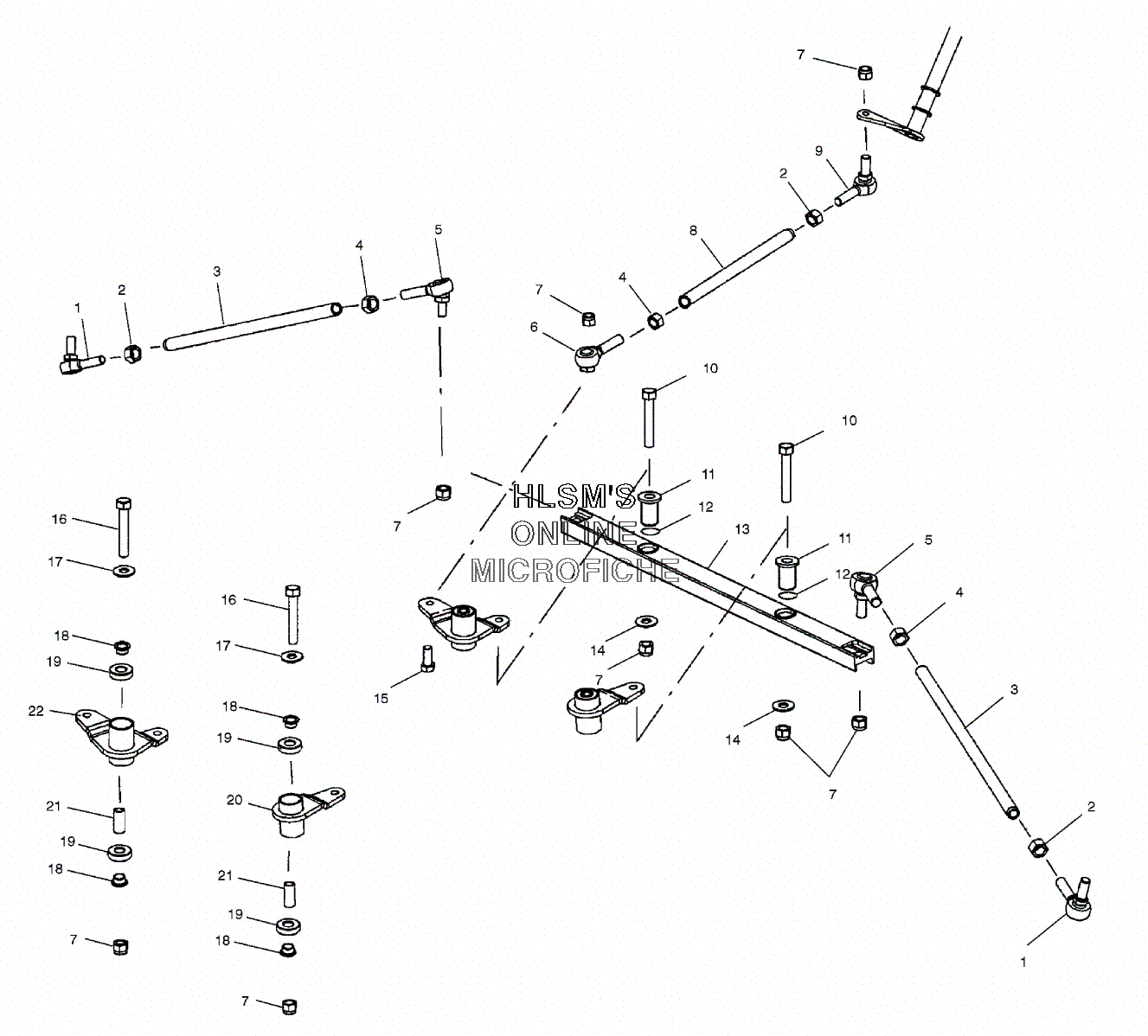

STEERING ASSEMBLY для Polaris XCF SP EDGE (S01NX4FS) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    7061057 ROD, END (3/8, PL, 75Ш, 1.00) (RIGHT)
    ROD, END (3/8, PL, 75Ш, 1.00) (RIGHT)
  • 2
    7542401 NUT HEX
    NUT HEX
  • 3
    5333983-293 ROD, TIE (RED)
    ROD, TIE (RED)
  • 4
    7542424 NUT
    NUT
  • 5
    7061055 ROD, END (3/8, PL) (750 STUD) (LEFT)
    ROD, END (3/8, PL) (750 STUD) (LEFT)
  • 6
    7061083 ROD END (3/8, 24) (LEFT)
    ROD END (3/8, 24) (LEFT)
  • 7
    7542439 NUT, NYLOK
    NUT, NYLOK
  • 8
    5333982-067 ROD, DRAGLINK, STEEL (BLK)
    ROD, DRAGLINK, STEEL (BLK)
  • 9
    7061084 ROD END (3/8, 24) (RIGHT)
    ROD END (3/8, 24) (RIGHT)
  • 10
    7517583 SCREW
    SCREW
  • 11
    5132938 BUSHING, SPACER, STEERING RACK
    BUSHING, SPACER, STEERING RACK
  • 12
    5411220 O-RING
    O-RING
  • 13
    1821157 STEERING RACK ASSY.
    STEERING RACK ASSY.
  • 14
    7555983 WASHER, FLAT
    WASHER, FLAT
  • 15
    7512404 BOLT
    BOLT
  • 16
    7512435 BOLT
    BOLT
  • 17
    7555797 WASHER
    WASHER
  • 18
    5132106 BUSHING, REDUCER (12MM TO .385)
    BUSHING, REDUCER (12MM TO .385)
  • 19
    3514320 BEARING, BALL (600ILLU)
    BEARING, BALL (600ILLU)
  • 20
    1821045 IDLER ARM ASSY., EDGE R (INCL. 18, 19, 21)
    IDLER ARM ASSY., EDGE R (INCL. 18, 19, 21)
  • 21
    5133057 SPACER, TUBE, PITMAN/IDLER ARMS
    SPACER, TUBE, PITMAN/IDLER ARMS
  • 22
    1821043 PITMAN ARM ASSY., EDGE R (INCL. 18, 19, 21)
    PITMAN ARM ASSY., EDGE R (INCL. 18, 19, 21)
