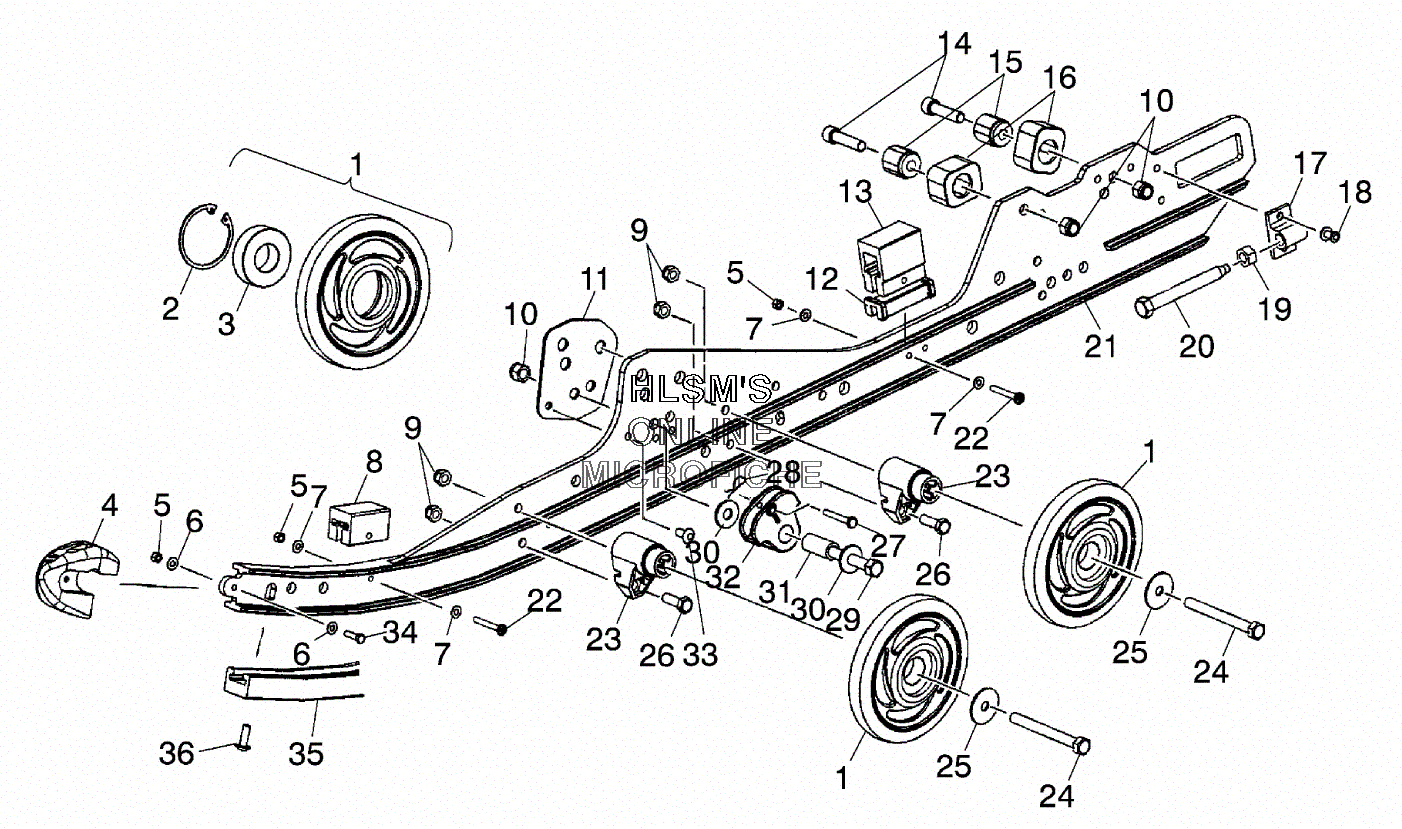

RAIL ASSEMBLY W/ IDLER WHEELS #1 для Polaris XCF SP EDGE (S01NX4FS) - 2001 года выпуска`
-
№АртикулНазвание
-
11590318-293 WHEEL SCROLLED ASSY. (5.62) (INDY RED) (INCL. 2, 3)WHEEL SCROLLED ASSY. (5.62) (INDY RED) (INCL. 2, 3)
-
27718407 RING, RETAINING (1 PER WHEEL)RING, RETAINING (1 PER WHEEL)
-
33514303 BEARING (1 PER WHEEL)BEARING (1 PER WHEEL)
-
45434168 CAP RAIL, TIPCAP RAIL, TIP
-
57541925 NUTNUT
-
67555792 WASHERWASHER
-
77555783 WASHERWASHER
-
85521499 BUMPER, JOUNCE FRONTBUMPER, JOUNCE FRONT
-
97542324 NUTNUT
-
107542439 NUT, NYLOKNUT, NYLOK
-
115245430 BRACKET, RAIL REINFBRACKET, RAIL REINF
-
125432946 LINER, BUMPERLINER, BUMPER
-
135521498 BUMPER, JOUNCE (REAR)BUMPER, JOUNCE (REAR)
-
135432946 LINER, BUMPERLINER, BUMPER
-
147515537 BOLTBOLT
-
155131113 MOUNT, BUMPER PIVOT ARM (FRONT)MOUNT, BUMPER PIVOT ARM (FRONT)
-
165410925 BUMPER, PIVOT ARM (FRONT)BUMPER, PIVOT ARM (FRONT)
-
175132444 BLOCK, IDLER BOLT ADJUST (7/16)BLOCK, IDLER BOLT ADJUST (7/16)
-
187621501 RIVETRIVET
-
197547156 NUT, JAM (7/16, 14)NUT, JAM (7/16, 14)
-
207517773 SCREWSCREW
-
211541622 RAIL ASSY. (121 RACE) (LEFT) (INCL. 4, 8, 13, 16, 17)RAIL ASSY. (121 RACE) (LEFT) (INCL. 4, 8, 13, 16, 17)
-
211541623 RAIL ASSY. (121 RACE) (RIGHT) (INCL. 4, 8, 13, 16, 17)RAIL ASSY. (121 RACE) (RIGHT) (INCL. 4, 8, 13, 16, 17)
-
227510504 SCREWSCREW
-
235631065 BLOCK, WHEEL MOUNT, LWTBLOCK, WHEEL MOUNT, LWT
-
247515346 BOLTBOLT
-
257571618 WASHERWASHER
-
267515317 BOLTBOLT
-
277661123 PIN, CLEVISPIN, CLEVIS
-
287661644 PIN, HITCHPIN, HITCH
-
297515438 BOLTBOLT
-
307555983 WASHER, FLATWASHER, FLAT
-
315333948 SPACERSPACER
-
325433922 GUIDE, SPRING SQUAREGUIDE, SPRING SQUARE
-
337661845 RIVETRIVET
-
347511975 SCREWSCREW
-
355521577-309 HI, FAX, NATURAL (121)HI, FAX, NATURAL (121)
-
367515199 SCREWSCREW
