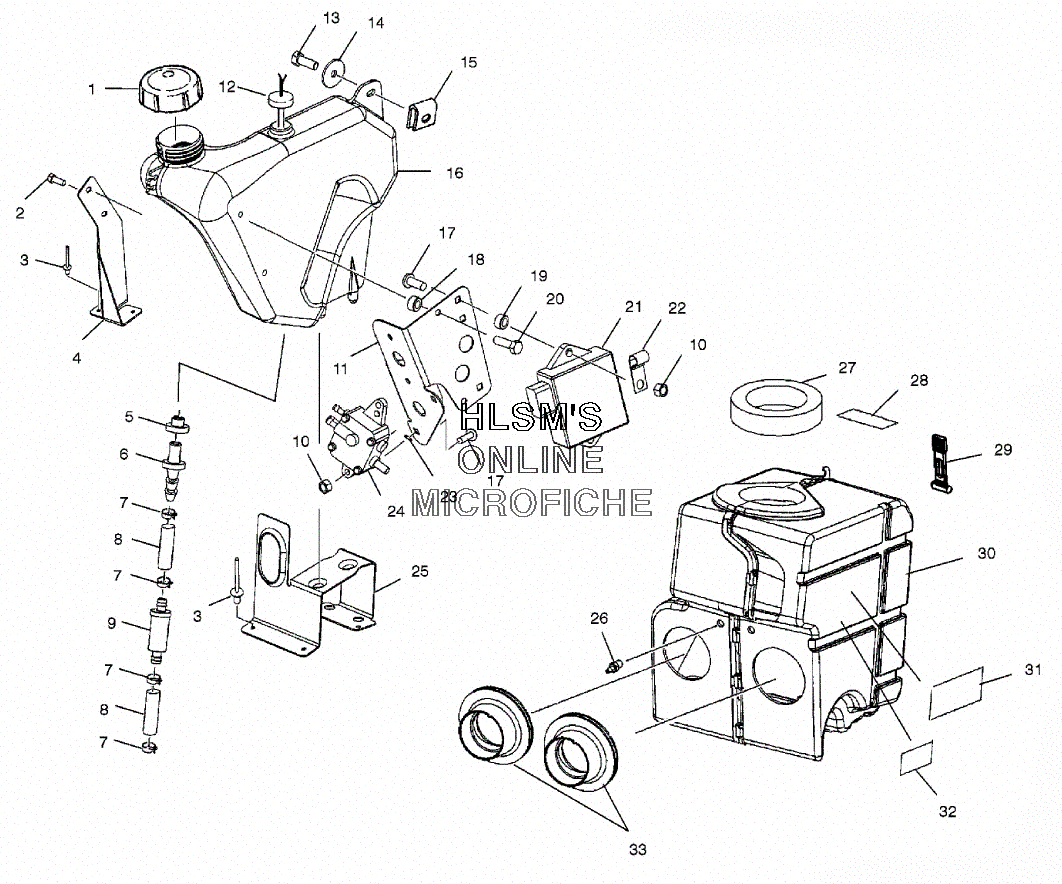

OIL TANK W/ AIR BOX ASSEMBLY для Polaris XCF SP EDGE (S01NX4FS) - 2001 года выпуска
-
№АртикулНазвание
-
11240094 CAP, OIL, VENTED (CUSTOM COLOR)CAP, OIL, VENTED (CUSTOM COLOR)
-
27517615 SCREWSCREW
-
37661637 RIVET, INTERLOCK, ZRIVET, INTERLOCK, Z
-
45245611 BRACKET, OIL BOTTLE, REINFORCEBRACKET, OIL BOTTLE, REINFORCE
-
57052028 GROMMET, TANK FITTINGGROMMET, TANK FITTING
-
67052207 FTTNG, STRAIGHT, PRESS, INFTTNG, STRAIGHT, PRESS, IN
-
77080307 CLAMPCLAMP
-
88450003-1525 FUEL LINE (1/4 ID) (1525 CM.)FUEL LINE (1/4 ID) (1525 CM.)
-
92530009 FILTER, SMALL, IN LINEFILTER, SMALL, IN LINE
-
107542122 NUT, LOCKNUT, LOCK
-
115245395 BRACKET, COIL MOUNTBRACKET, COIL MOUNT
-
124110134 SENSOR, OIL LEVELSENSOR, OIL LEVEL
-
137512276 BOLTBOLT
-
147555931 WASHERWASHER
-
157670096 NUTNUT
-
161253431 OIL TANK ASSY., W/SHIELDOIL TANK ASSY., W/SHIELD
-
177512263 BOLT, CARRIAGEBOLT, CARRIAGE
-
187555932 WASHER, NYLONWASHER, NYLON
-
195431928 BUMPER, CLUTCHGUARDBUMPER, CLUTCHGUARD
-
207517658 SCREWSCREW
-
227080884 CLIP, JCLIP, J
-
237670021 SPEEDOMETER NUTSPEEDOMETER NUT
-
255245393 BRACKET, OIL BOTTLE (LOWER)BRACKET, OIL BOTTLE (LOWER)
-
267052127 FITTING, HOSEFITTING, HOSE
-
275811882 FOAM, AIRBOX, CHIMNEY, EDGEFOAM, AIRBOX, CHIMNEY, EDGE
-
287075351 DECAL, CAUTION, AIRBOXDECAL, CAUTION, AIRBOX
-
295433150 STRAP, RUBBERSTRAP, RUBBER
-
301253407 AIR SILENCER ASSY. (INCL. 33 AND DECALS)AIR SILENCER ASSY. (INCL. 33 AND DECALS)
-
317073820 DECAL, ADJUST DRIVEN CLUTCHDECAL, ADJUST DRIVEN CLUTCH
-
327073426 DECAL, GREASINGDECAL, GREASING
-
335411665 BOOT, CARBURETORBOOT, CARBURETOR
