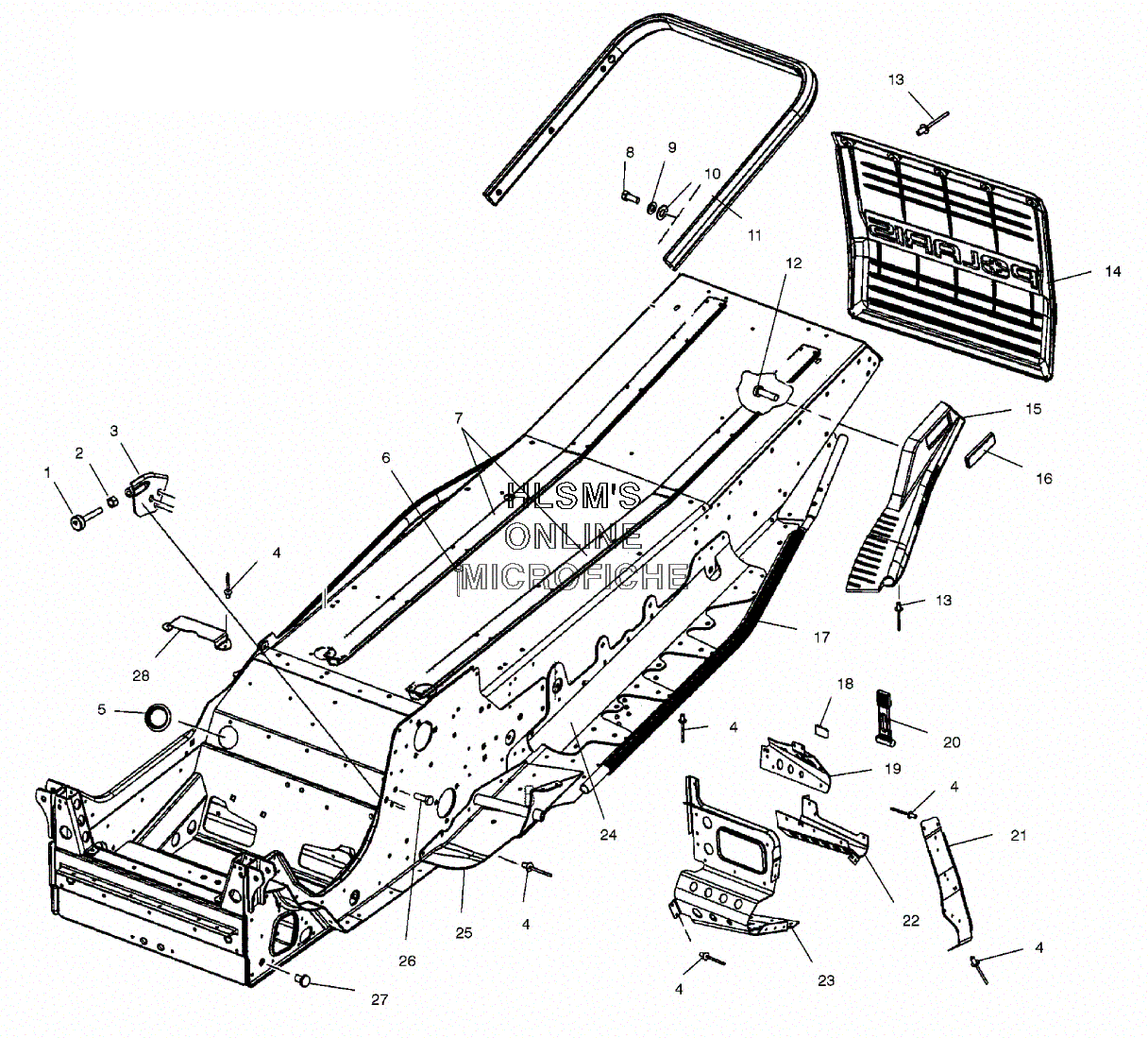

FRAME - CHASSIS для Polaris XCF SP EDGE (S01NX4FS) - 2001 года выпуска

  • №
    Артикул
    Название
  • 19
    1013456-309 CHASSIS ASSY., RACER, NATURAL
    CHASSIS ASSY., RACER, NATURAL
  • 1
    3021104 STOP, TORQUE COURSE (3/8, 16)
    STOP, TORQUE COURSE (3/8, 16)
  • 2
    7542404 NUT
    NUT
  • 3
    1013507 WELD, TORQUE STOP
    WELD, TORQUE STOP
  • 4
    7661637 RIVET, INTERLOCK, Z
    RIVET, INTERLOCK, Z
  • 5
    7080934 CAPLUG (1 5/8'')
    CAPLUG (1 5/8'')
  • 6
    7621432 RIVET (3/16X.402)
    RIVET (3/16X.402)
  • 7
    5132346 EXCHNGR, WR.STRIP, MACH/FORM
    EXCHNGR, WR.STRIP, MACH/FORM
  • 8
    7512240 BOLT
    BOLT
  • 9
    7552801 LOCK WASHER
    LOCK WASHER
  • 10
    7558301 WASHER
    WASHER
  • 11
    2632165-309 BUMPER, REAR
    BUMPER, REAR
  • 12
    7517441 SCREW
    SCREW
  • 13
    7621472 RIVET
    RIVET
  • 14
    5433521-1106 FLAP, SNOW, EDGE (BLK W/CHROME)
    FLAP, SNOW, EDGE (BLK W/CHROME)
  • 15
    5433519-070 SKIRT, SNOW, EDGE (LEFT/BLK)
    SKIRT, SNOW, EDGE (LEFT/BLK)
  • 15
    5433520-070 SNOWSKIRT ASSY., REFLECTOR (RIGHT/BLK)
    SNOWSKIRT ASSY., REFLECTOR (RIGHT/BLK)
  • 16
    2670133 REFLECTOR ASSY. (RED)
    REFLECTOR ASSY. (RED)
  • 17
    5132903 GRIP, TUNNEL, ROLL, EDGE (LEFT)
    GRIP, TUNNEL, ROLL, EDGE (LEFT)
  • 17
    5132904 GRIP, TUNNEL, EDGE (RIGHT)
    GRIP, TUNNEL, EDGE (RIGHT)
  • 18
    5521238 EXTRUSION, CLUTCH GUARD
    EXTRUSION, CLUTCH GUARD
  • 19
    5245619 CONSOLE, MOUNT RACER (LEFT)
    CONSOLE, MOUNT RACER (LEFT)
  • 19
    5245620 CONSOLE, MOUNT RACER (RIGHT)
    CONSOLE, MOUNT RACER (RIGHT)
  • 20
    5433150 STRAP, RUBBER
    STRAP, RUBBER
  • 21
    5242741 SUPPORT, FOOTREST (LEFT)
    SUPPORT, FOOTREST (LEFT)
  • 21
    5242742 SUPPORT, FOOTREST (RIGHT)
    SUPPORT, FOOTREST (RIGHT)
  • 22
    5245457 MOUNT, CONSOLE, TOE CLIP (LEFT)
    MOUNT, CONSOLE, TOE CLIP (LEFT)
  • 22
    5245458 MOUNT, CONSOLE, TOE CLIP (RIGHT)
    MOUNT, CONSOLE, TOE CLIP (RIGHT)
  • 23
    5245288 FOOTREST (LEFT)
    FOOTREST (LEFT)
  • 23
    5242740 FOOTREST (RIGHT)
    FOOTREST (RIGHT)
  • 24
    5245231-309 BRACE, TUNNEL FISHBONE (LEFT)
    BRACE, TUNNEL FISHBONE (LEFT)
  • 24
    5245232-309 BRACE, TUNNEL FISHBONE (RIGHT)
    BRACE, TUNNEL FISHBONE (RIGHT)
  • 25
    1013503 WELD, TRAILING ARM MOUNT (LEFT)
    WELD, TRAILING ARM MOUNT (LEFT)
  • 25
    1013504 WELD, TRAILING ARM MOUNT (RIGHT)
    WELD, TRAILING ARM MOUNT (RIGHT)
  • 26
    7517632 SCREW
    SCREW
  • 27
    7080416 PLUG, HOLE
    PLUG, HOLE
  • 28
    5245398-067 BRACKET, AIRBOX MOUNT (BLK)
    BRACKET, AIRBOX MOUNT (BLK)
