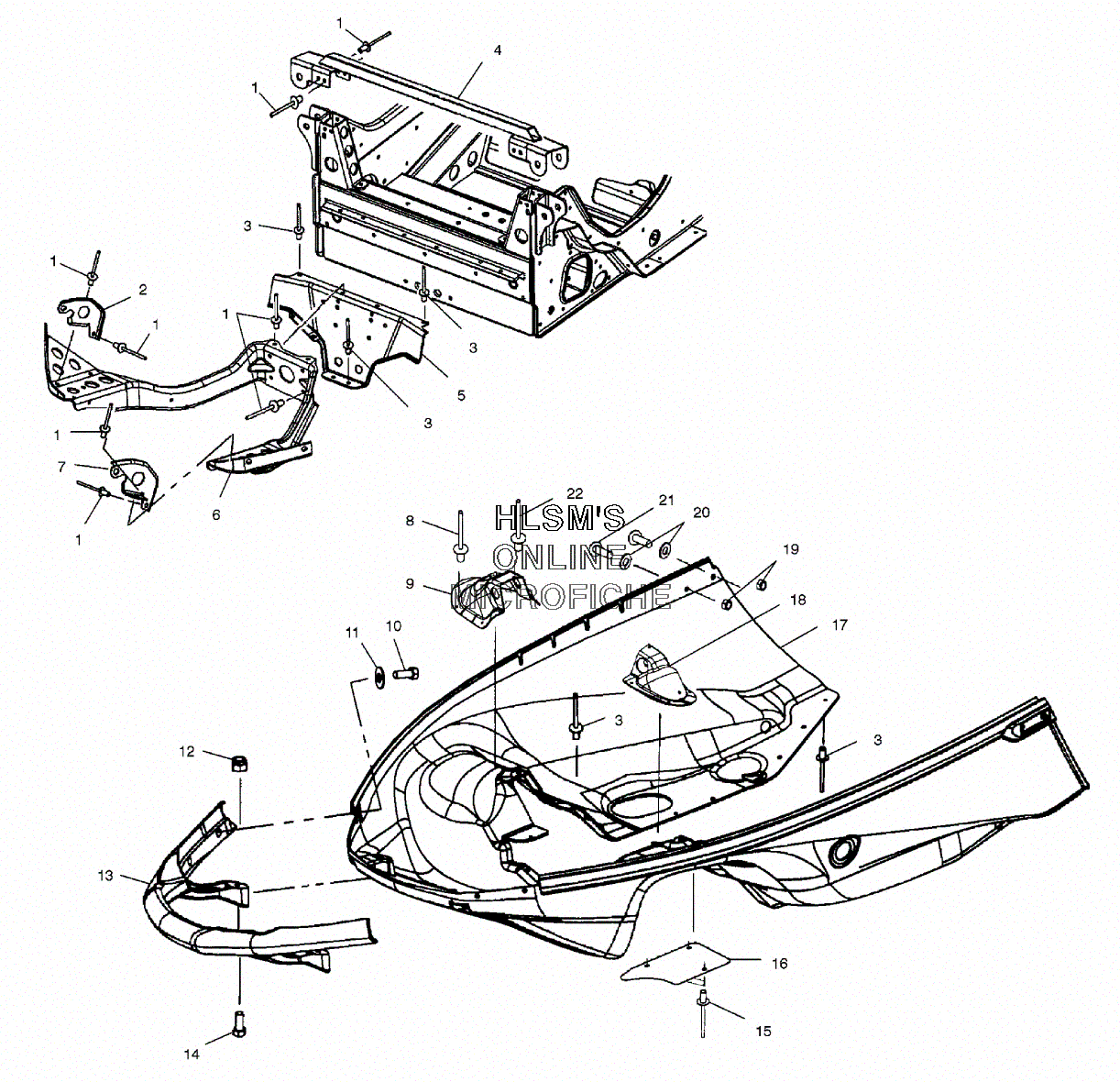

NOSEPAN ASSEMBLY #1 для Polaris XCF SP EDGE (S01NX4FS) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    7661637 RIVET, INTERLOCK, Z
    RIVET, INTERLOCK, Z
  • 2
    5243992-067 HINGE, LOWER PIVOT (RIGHT/BLK)
    HINGE, LOWER PIVOT (RIGHT/BLK)
  • 3
    7621467 RIVET, BLIND
    RIVET, BLIND
  • 4
    1013477-067 WELD, CROSS BRACE (BLK)
    WELD, CROSS BRACE (BLK)
  • 5
    5245238-067 BRACKET, RADIUS ROD, SUPPORT (BLK)
    BRACKET, RADIUS ROD, SUPPORT (BLK)
  • 6
    5244050 BRACE, PAN (LOWER)
    BRACE, PAN (LOWER)
  • 7
    5243991-067 HINGE, PIVOT (LOWER/LEFT/BLK)
    HINGE, PIVOT (LOWER/LEFT/BLK)
  • 8
    7621479 RIVET
    RIVET
  • 9
    5434102 COVER, SHOCK TOWER (RIGHT)
    COVER, SHOCK TOWER (RIGHT)
  • 10
    7517312 SCREW
    SCREW
  • 11
    7552801 LOCK WASHER
    LOCK WASHER
  • 12
    7542153 NUT
    NUT
  • 13
    5433518-070 BUMPER, FRONT EDGE (BLK)
    BUMPER, FRONT EDGE (BLK)
  • 14
    7512163 SCREW
    SCREW
  • 15
    7621472 RIVET
    RIVET
  • 16
    5243849 SHIELD, EXHAUST, HEAT, EXTENDED
    SHIELD, EXHAUST, HEAT, EXTENDED
  • 17
    5434133-293 NOSEPAN, RACER (INDY RED)
    NOSEPAN, RACER (INDY RED)
  • 18
    5434101 COVER, SHOCK TOWER (LEFT)
    COVER, SHOCK TOWER (LEFT)
  • 19
    7542122 NUT, LOCK
    NUT, LOCK
  • 20
    7555827 WASHER
    WASHER
  • 21
    7515166 SCREW
    SCREW
  • 22
    7621418 POP RIVET
    POP RIVET
