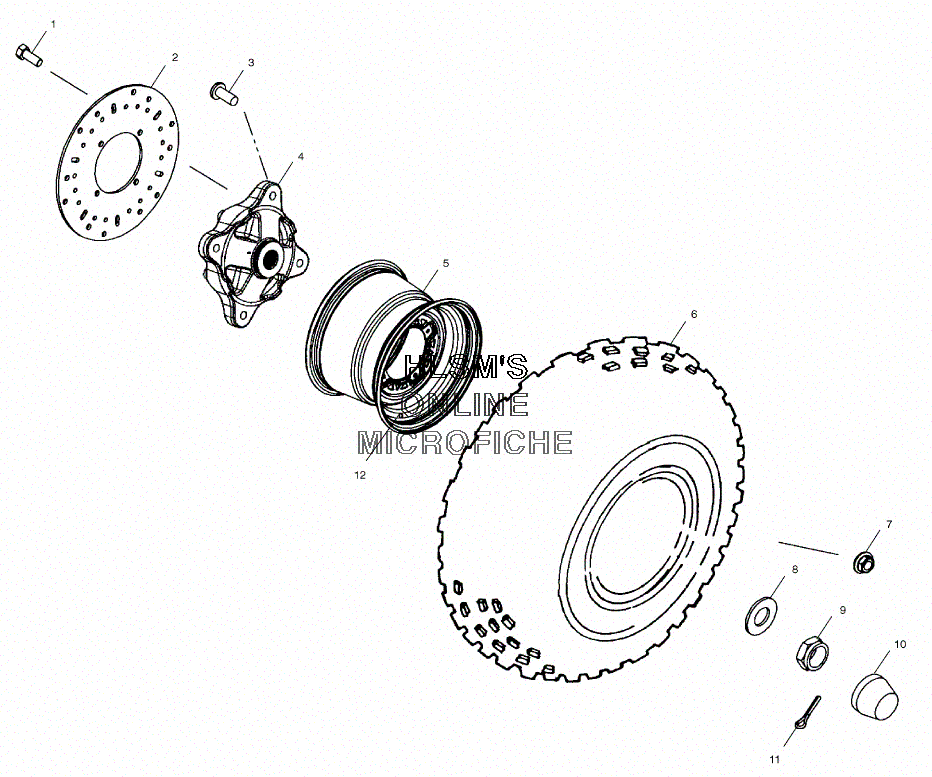

WHEEL - FRONT для Polaris MAGNUM 500 4X4 (A03CD50FB) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    7512325 BOLT
    BOLT
  • 2
    5244314 DISC, BRAKE (FRONT)
    DISC, BRAKE (FRONT)
  • 3
    7515513 STUD
    STUD
  • 4
    5133360 HUB, WHEEL AWD MACH
    HUB, WHEEL AWD MACH
  • 5
    1520563-385 WELD, RIM FRONT (12 X 6 11GA) CLOUDSLV
    WELD, RIM FRONT (12 X 6 11GA) CLOUDSLV
  • 6
    5411952 RAWHIDE GRIP AT [25 X 8-12]
    RAWHIDE GRIP AT [25 X 8-12]
  • 7
    7547237 NUT, FLANGE TWO PIECE (3/8-24)
    NUT, FLANGE TWO PIECE (3/8-24)
  • 8
    7556004 WASHER
    WASHER
  • 9
    7542810 NUT, SLOTTED
    NUT, SLOTTED
  • 10
    5411164 DUST COVER, HUB
    DUST COVER, HUB
  • 11
    7661401 COTTER PIN
    COTTER PIN
  • 12
    1525017 VALVE, RIM
    VALVE, RIM
