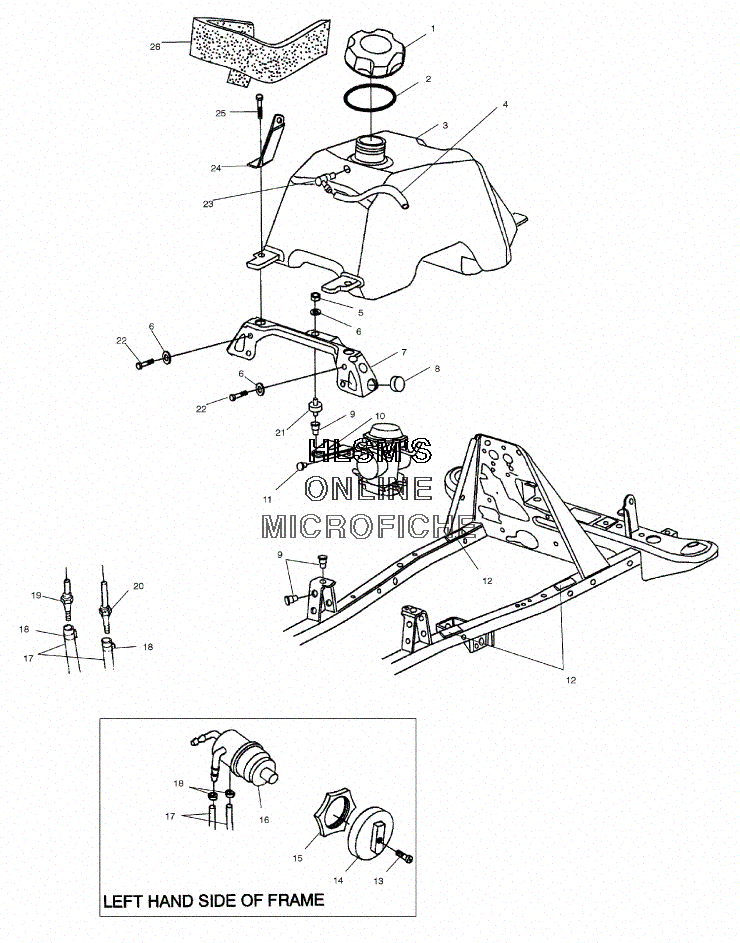

FUEL TANK AND CARBURETOR MOUNTING для Polaris MAGNUM 500 4X4 (A03CD50FB) - 2003 года выпуска

№

Артикул

Название
1

5433687 CAP, GAS TANK [INCLUDES GASKET]

CAP, GAS TANK [INCLUDES GASKET]

3 950 ₽
2

5812123 GASKET, GAS CAP

GASKET, GAS CAP

1 460 ₽
3

2520143 FUEL TANK ASSY. [INCL. 19,20,23]

FUEL TANK ASSY. [INCL. 19,20,23]

0 ₽
4

8360009-600 FUEL LINE (1/8 ID, 600 CM.) (OPT)

FUEL LINE (1/8 ID, 600 CM.) (OPT)

5 620 ₽
5

7542105 NUT HEX

NUT HEX

630 ₽
6

7555859 WASHER, FLAT

WASHER, FLAT

250 ₽
7

5245672-067 BRACKET, CARB. SUPPORT (BLACK)

BRACKET, CARB. SUPPORT (BLACK)

3 330 ₽
8

5410414 BUMPER, RUBBER

BUMPER, RUBBER

340 ₽
9

7547069 NUTSERT, HEX

NUTSERT, HEX

630 ₽
10

5245673-067 MOUNT (425/500 CARB.) (BLACK)

MOUNT (425/500 CARB.) (BLACK)

670 ₽
11

3084205 SCREW AND WASHER

SCREW AND WASHER

340 ₽
12

5810317 PAD, FUEL TANK BRACKET

PAD, FUEL TANK BRACKET

0 ₽
13

7517505 SCREW

SCREW

250 ₽
14

5432559 KNOB, FUEL VALVE

KNOB, FUEL VALVE

1 870 ₽
15

5432733 NUT, FUEL VALVE

NUT, FUEL VALVE

540 ₽
16

7052161 VALVE, 3-WAY

VALVE, 3-WAY

6 660 ₽
17

8450103 FUEL HOSE (1/4'' DP SAE J30R9) (OPT)

FUEL HOSE (1/4'' DP SAE J30R9) (OPT)

8 950 ₽
18

7080003 CLAMP, HOSE

CLAMP, HOSE

110 ₽
19

7052150 FITTING, FUEL OUT MAIN (4'' )

FITTING, FUEL OUT MAIN (4'' )

3 750 ₽
20

7052149 FITTING, FUEL OUT RESERVE

FITTING, FUEL OUT RESERVE

2 710 ₽
21

3110050 MOUNT, CARB.

MOUNT, CARB.

1 000 ₽
22

7512276 BOLT

BOLT

540 ₽
23

5431053 VENT, TANK

VENT, TANK

2 080 ₽
24

5222154 BRACKET, FUEL MOUNT (REAR/ LEFT)

BRACKET, FUEL MOUNT (REAR/ LEFT)

2 910 ₽
24

5222155 BRACKET, FUEL MOUNT (RIGHT/ REAR)

BRACKET, FUEL MOUNT (RIGHT/ REAR)

2 910 ₽
25

7512277 BOLT

BOLT

540 ₽
26

5811942 FOAM, SEAL (25'')

FOAM, SEAL (25'')

0 ₽
