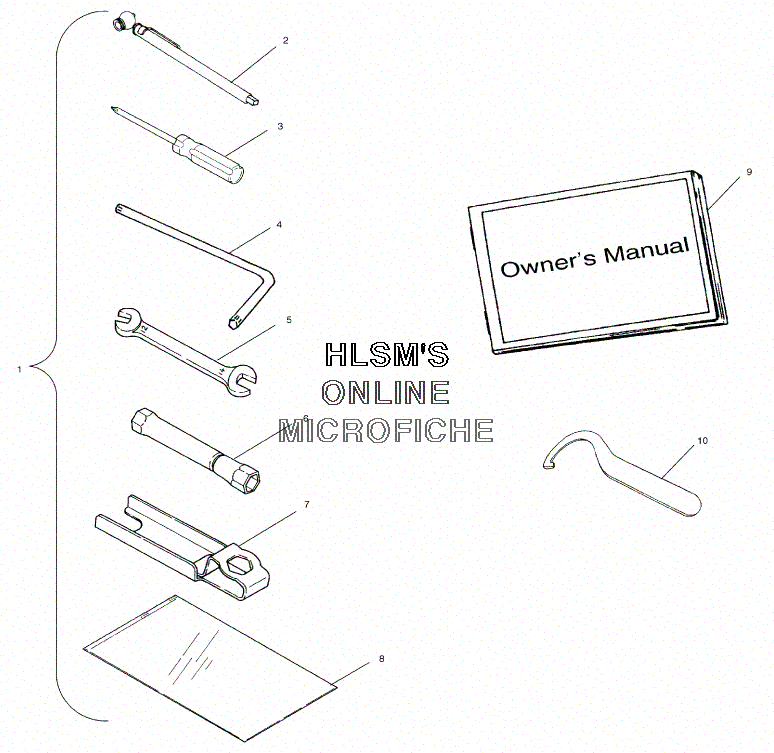

TOOL KIT для Polaris MAGNUM 500 4X4 (A03CD50FB) - 2003 года выпуска
-
№АртикулНазвание
-
13085544 TOOL KITTOOL KIT
-
22870725 GAUGE, AIRGAUGE, AIR
-
33082657 SCREWDRIVERSCREWDRIVER
-
42873647 WRENCH-TORX,T-27WRENCH-TORX,T-27
-
52871348 WRENCH OPEN ENDWRENCH OPEN END
-
63085567 WRENCH, BOXWRENCH, BOX
-
73085569 ACCESS.TOOL, KIT [WRENCH HANDLE]ACCESS.TOOL, KIT [WRENCH HANDLE]
-
82682572 POUCH, TOOLKIT 9''POUCH, TOOLKIT 9''
-
99917492 MAN-OWN, 03 ATVMAN-OWN, 03 ATV
-
102871095-067 WRENCH, SHOCK ADJUSTWRENCH, SHOCK ADJUST
Все узлы модели:
- AIR BOX ASSY.
- BRAKE - FRONT
- BRAKE - MASTER CYLINDER W/ BRAKE LINE
- BRAKE - REAR
- CAMSHAFT W/ VALVE ASSY.
- CARBURETOR
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CLUTCH COVER
- CONTROL ASSY. THROTTLE
- COOLING SYSTEM
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER
- DECALS
- DRIVESHAFT - FRONT
- DRIVESHAFT - FRONT INTERMEDIATE
- ELECTRICAL W/ TAILLIGHT ASSY.
- EXHAUST SYSTEM
- FENDER - FRONT W/ SIDE PANELS
- FENDER - REAR W/ SEAT
- FUEL PUMP
- FUEL TANK AND CARBURETOR MOUNTING
- GEAR SELECTOR
- GEARCASE
- GEARCASE - FRONT
- HANDLEBAR W/ HEADLIGHT
- HOUSING - REAR W/ AXLE
- MAGNETO
- MOUNTING - ENGINE
- MOUNTING - TRANSMISSION
- OIL FILTER
- OIL PUMP
- OIL TANK
- RACK AND BUMPER MOUNTING - FRONT
- RACK AND BUMPER MOUNTING - REAR
- SHOCK ABSORBER
- STARTER - RECOIL
- STARTING MOTOR
- STEERING POST
- SUSPENSION - FRONT A - ARM W/ TIE RODS
- SUSPENSION - FRONT STRUT
- SWING ARM/ REAR/ GEARCASE MOUNTING
- • TOOL KIT
- WATER PUMP
- WHEEL - FRONT
- WHEEL - REAR
