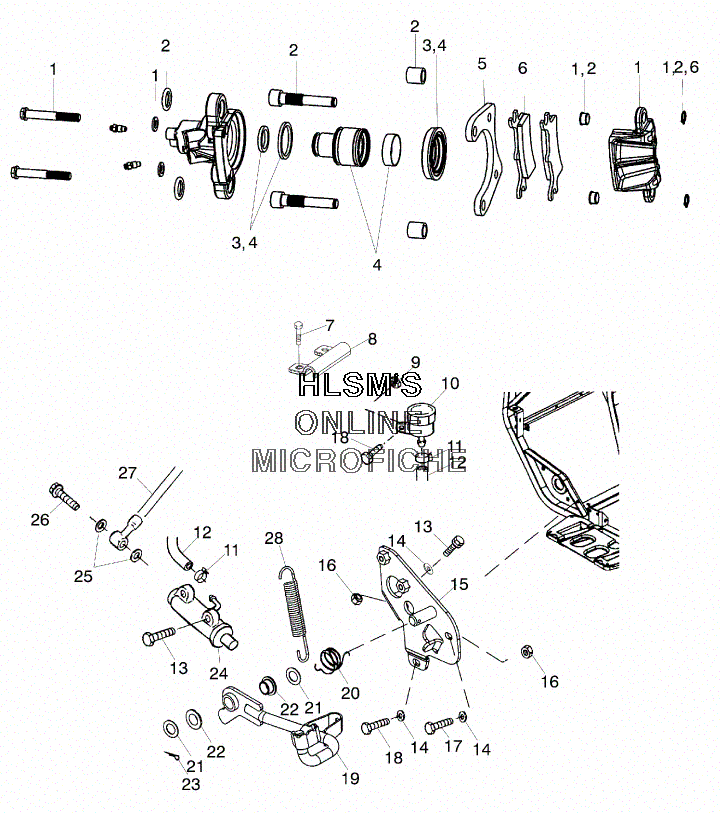

BRAKE - REAR для Polaris MAGNUM 500 4X4 (A03CD50FB) - 2003 года выпуска
-
№АртикулНазвание
-
12201873 ANVIL BODY, KITANVIL BODY, KIT
-
22201870 SLIDE BOLT, KIT (DH4P)SLIDE BOLT, KIT (DH4P)
-
32201872 SEAL, KIT (DH4P)SEAL, KIT (DH4P)
-
42201869 PISTON/ SEAL KIT (DH4P)PISTON/ SEAL KIT (DH4P)
-
52201732 PLATEPLATE
-
62202414 KIT, BRAKE PAD ASSY. (DH4P)KIT, BRAKE PAD ASSY. (DH4P)
-
77512084 SCREWSCREW
-
85434041 CLAMP, BRAKE LINECLAMP, BRAKE LINE
-
97542153 NUT, NYLOK FLANGEDNUT, NYLOK FLANGED
-
101930854 RESERVOIR ASSY., BRAKE (REAR)RESERVOIR ASSY., BRAKE (REAR)
-
117080003 CLAMP, HOSECLAMP, HOSE
-
121910675 HOSE, RESERVOIRHOSE, RESERVOIR
-
137515158 SCREWSCREW
-
147558301 WASHER, FLATWASHER, FLAT
-
151012753-067 MOUNT, PIVOT BRAKE (REAR/BLACK)MOUNT, PIVOT BRAKE (REAR/BLACK)
-
167542122 NUT, NYLOKNUT, NYLOK
-
177512240 BOLTBOLT
-
187517386 SCREWSCREW
-
191014009-067 BRAKE ROD, PVT (BLACK)BRAKE ROD, PVT (BLACK)
-
207041750 SPRING, TORSION BRAKESPRING, TORSION BRAKE
-
217555919 WASHERWASHER
-
225433189 BUSHING, PEDAL PIVOTBUSHING, PEDAL PIVOT
-
237661401 COTTER PINCOTTER PIN
-
241910311 BRAKE MASTER CYL., FOOT BANJOBRAKE MASTER CYL., FOOT BANJO
-
255410988 SEALSEAL
-
261910499 BOLT, BANJO (10MM X 1.00)BOLT, BANJO (10MM X 1.00)
-
271910516 LINE, BRAKE (FRONT MASTER CYLINDER TO SRS CH REAR)LINE, BRAKE (FRONT MASTER CYLINDER TO SRS CH REAR)
-
287042075 SPRINGSPRING
-
281910680 CALIPER, DH4P W/INS PADS ASSY.CALIPER, DH4P W/INS PADS ASSY.
