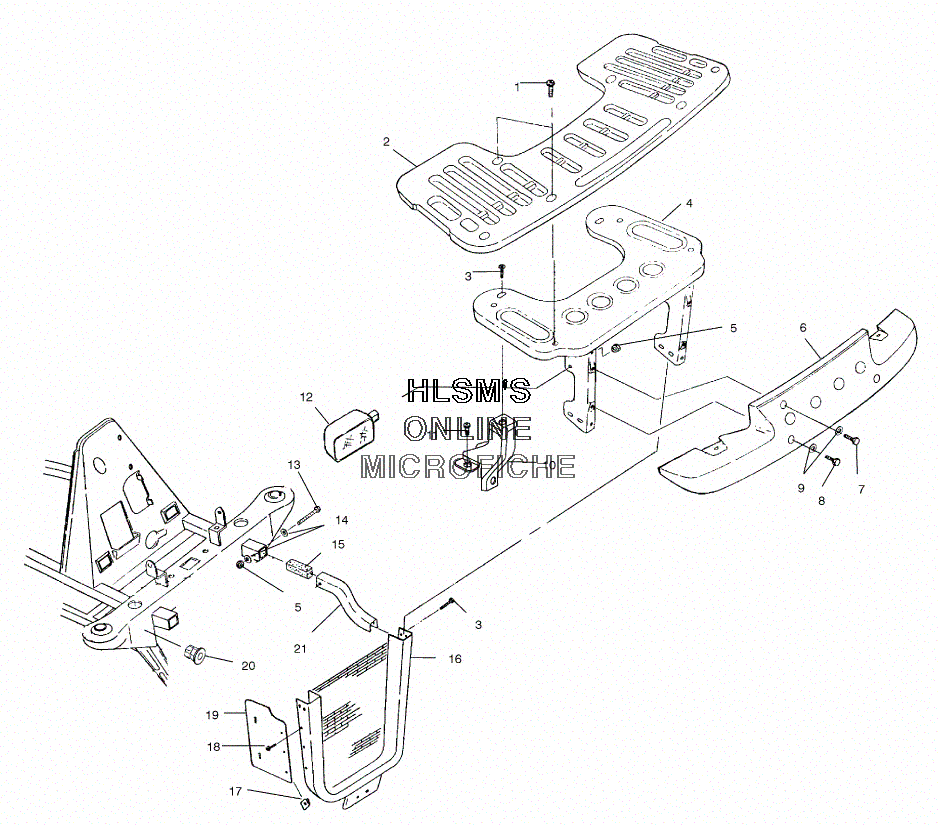

RACK AND BUMPER MOUNTING - FRONT для Polaris MAGNUM 500 4X4 (A03CD50FB) - 2003 года выпуска`
-
№АртикулНазвание
-
17517685 SCREWSCREW
-
22670180-070 RACK, FRONT (BLACK) [INCL. WARNING DECAL]RACK, FRONT (BLACK) [INCL. WARNING DECAL]
-
37515399 SCREWSCREW
-
41014023-067 WELD, FRONT RACK SUPPORT (BLACK)WELD, FRONT RACK SUPPORT (BLACK)
-
57542324 NUT, NYLOKNUT, NYLOK
-
65432155-070 BUMPER (BLACK)BUMPER (BLACK)
-
77515391 BOLTBOLT
-
87515390 BOLTBOLT
-
97555954 WASHERWASHER
-
101013744-067 WELD, SUPPORT RACK (FRONT/ LEFT/ BLACK)WELD, SUPPORT RACK (FRONT/ LEFT/ BLACK)
-
101013746-067 WELD, SUPPORT RACK (FRONT/ RIGHT/ BLACK)WELD, SUPPORT RACK (FRONT/ RIGHT/ BLACK)
-
117512232 BOLTBOLT
-
122431014 HEADLIGHT ASSY. (35 WATT) (LEFT)HEADLIGHT ASSY. (35 WATT) (LEFT)
-
122431015 HEADLIGHT ASSY. (35 WATT) (RIGHT)HEADLIGHT ASSY. (35 WATT) (RIGHT)
-
124030059 BULB, (27 WATT) HOBBS (HEADLIGHTS)BULB, (27 WATT) HOBBS (HEADLIGHTS)
-
137512329 BOLTBOLT
-
147558402 WASHER, FLATWASHER, FLAT
-
155810467 PLUG, FRAMEPLUG, FRAME
-
161013772-067 WELD, BRUSH GUARD (BLACK)WELD, BRUSH GUARD (BLACK)
-
177670094 NUTNUT
-
187512097 SCREWSCREW
-
195433923 SHIELD, RADIATOR, SIDE (LEFT)SHIELD, RADIATOR, SIDE (LEFT)
-
195433924 SHEILD, RADIATOR, SIDE (RIGHT)SHEILD, RADIATOR, SIDE (RIGHT)
-
207547069 NUTSERT, HEXNUTSERT, HEX
-
215244729-067 EXTENSION, FRAME (LEFT/ BLACK)EXTENSION, FRAME (LEFT/ BLACK)
-
215244730-067 EXTENSION, FRAME (RIGHT/ BLACK)EXTENSION, FRAME (RIGHT/ BLACK)
