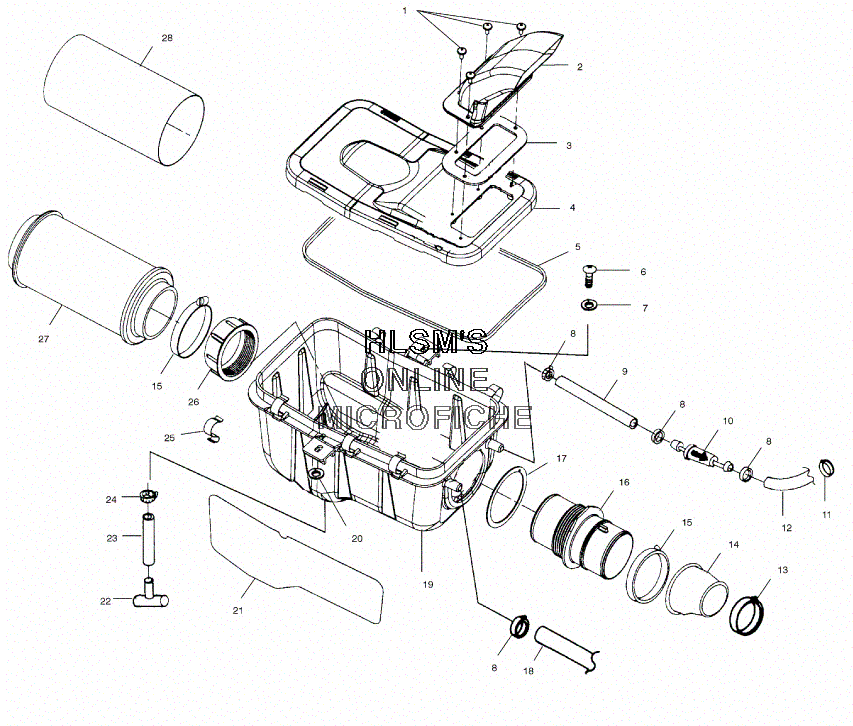

AIR BOX ASSY. для Polaris MAGNUM 500 4X4 (A03CD50FB) - 2003 года выпуска
-
№АртикулНазвание
-
17517541 SCREWSCREW
-
25432859 DUCT, INLET AIR BOX COVERDUCT, INLET AIR BOX COVER
-
35411422 GASKET, INTAKEGASKET, INTAKE
-
45432868 COVER, AIR BOXCOVER, AIR BOX
-
55811482 SEAL, AIR BOX COVERSEAL, AIR BOX COVER
-
67515180 SCREWSCREW
-
77558301 WASHER, FLATWASHER, FLAT
-
87080699 CLAMP, HOSECLAMP, HOSE
-
98450073-600 LINE, BREATHER 3/8 ID. (OPT)LINE, BREATHER 3/8 ID. (OPT)
-
102530029 FILTER, BREATHER IN LINEFILTER, BREATHER IN LINE
-
117080694 CLAMP, HOSE SPRINGCLAMP, HOSE SPRING
-
125411921 HOSE, BREATHERHOSE, BREATHER
-
137080511 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
145411540 BOOT, CARB. 425 PVTBOOT, CARB. 425 PVT
-
157080413 CLAMP, BAND NARROWCLAMP, BAND NARROW
-
165432473 DUCT, CARB. INLETDUCT, CARB. INLET
-
175830128 GASKET, CARB. IN DUCTGASKET, CARB. IN DUCT
-
195433678 BOX, AIR INTAKEBOX, AIR INTAKE
-
207556091 SPACERSPACER
-
215811650 FOIL, AIR BOXFOIL, AIR BOX
-
225432377 PLUG, TRAPPLUG, TRAP
-
238450059-150 FUEL LINE (OPT)FUEL LINE (OPT)
-
247080650 CLAMP, HOSECLAMP, HOSE
-
255242044 CLIP, AIR BOXCLIP, AIR BOX
-
265432601 COLLAR, CARB. INLETCOLLAR, CARB. INLET
-
277080595 FILTER, AIR INTAKEFILTER, AIR INTAKE
-
285811633 FILTER, PRECLEAN.SLEEVEFILTER, PRECLEAN.SLEEVE
