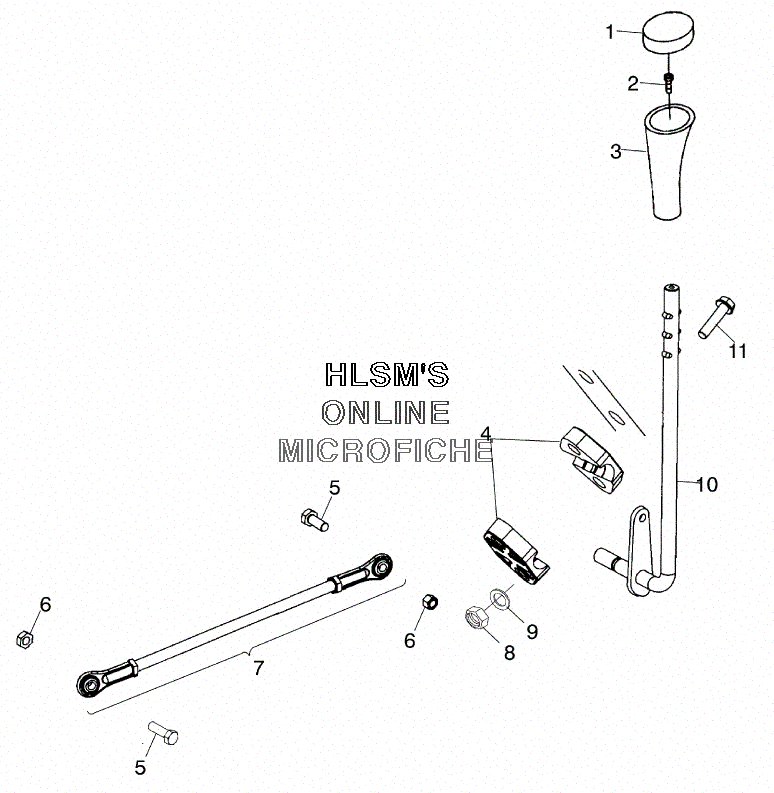

GEAR SELECTOR для Polaris MAGNUM 500 4X4 (A03CD50FB) - 2003 года выпуска
-
№АртикулНазвание
-
15412003 COVER, DRUM SHIFTCOVER, DRUM SHIFT
-
27512024 SCREWSCREW
-
35411007 KNOB ASSY., HI/ REV.KNOB ASSY., HI/ REV.
-
45433103 MOUNT, GEAR SELECTOR HI/ REVMOUNT, GEAR SELECTOR HI/ REV
-
57515175 BOLTBOLT
-
67542122 NUT, NYLOKNUT, NYLOK
-
71821135 ASSY, LINKAGE RODASSY, LINKAGE ROD
-
87542324 NUT, NYLOKNUT, NYLOK
-
97555770 WASHER, FLATWASHER, FLAT
-
101013315-067 GEAR SELECTOR, SPMN700 (BLACK)GEAR SELECTOR, SPMN700 (BLACK)
-
117515306 SCREWSCREW
