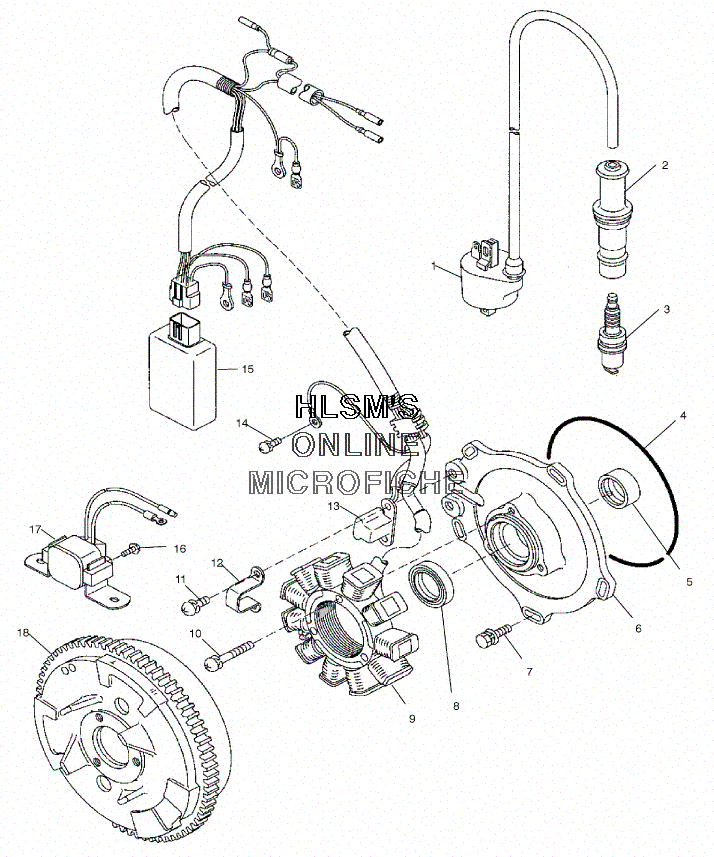

MAGNETO для Polaris MAGNUM 500 4X4 (A03CD50FB) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    3084690 COIL, IGNITION ASSY. [INCL. 1,2]
    COIL, IGNITION ASSY. [INCL. 1,2]
  • 1
    3084979 COIL, IGNITION
    COIL, IGNITION
  • 2
    3084980 CAP, SPARKPLUG
    CAP, SPARKPLUG
  • 3
    3070175 SPARKPLUG, BKR5E
    SPARKPLUG, BKR5E
  • 4
    3084978 O-RING
    O-RING
  • 5
    3084972 BEARING, METAL
    BEARING, METAL
  • 6
    3086980 PLATE ASSY. [INCL. 5,6,8-11,14] [THROUGH SERIAL # 02-02357]
    PLATE ASSY. [INCL. 5,6,8-11,14] [THROUGH SERIAL # 02-02357]
  • 6
    3087167 PLATE ASSY. [INCL. 5,6,8-11,14] [SERIAL # 02-02358 AND HIGHER]
    PLATE ASSY. [INCL. 5,6,8-11,14] [SERIAL # 02-02358 AND HIGHER]
  • 6
    3086981 PLATE
    PLATE
  • 7
    3081657 BOLT AND WASHER ASSY.
    BOLT AND WASHER ASSY.
  • 8
    3084973 SEAL, OIL
    SEAL, OIL
  • 9
    3086984 STATOR [INCL. 13]
    STATOR [INCL. 13]
  • 9
    3087168 STATOR [INCL. 13]
    STATOR [INCL. 13]
  • 10
    3086985 ASSY., SCREW AND WASHER
    ASSY., SCREW AND WASHER
  • 11
    3084976 SCREW AND WASHER ASSY.
    SCREW AND WASHER ASSY.
  • 12
    3085554 BAND, PULSE
    BAND, PULSE
  • 13
    3085360 COIL, PULSER
    COIL, PULSER
  • 14
    3081256 SCREW AND WASHER ASSY.
    SCREW AND WASHER ASSY.
  • 15
    3086982 CDI, SYSTEM
    CDI, SYSTEM
  • 15
    3087169 CDI, SYSTEM
    CDI, SYSTEM
  • 16
    3085359 BOLT, FLANGE
    BOLT, FLANGE
  • 17
    3085521 SWITCH, MAGNETIC
    SWITCH, MAGNETIC
  • 18
    3086983 FLYWHEEL, W/ RING GEAR
    FLYWHEEL, W/ RING GEAR
  • 18
    3087166 FLYWHEEL, W/ RING GEAR
    FLYWHEEL, W/ RING GEAR
