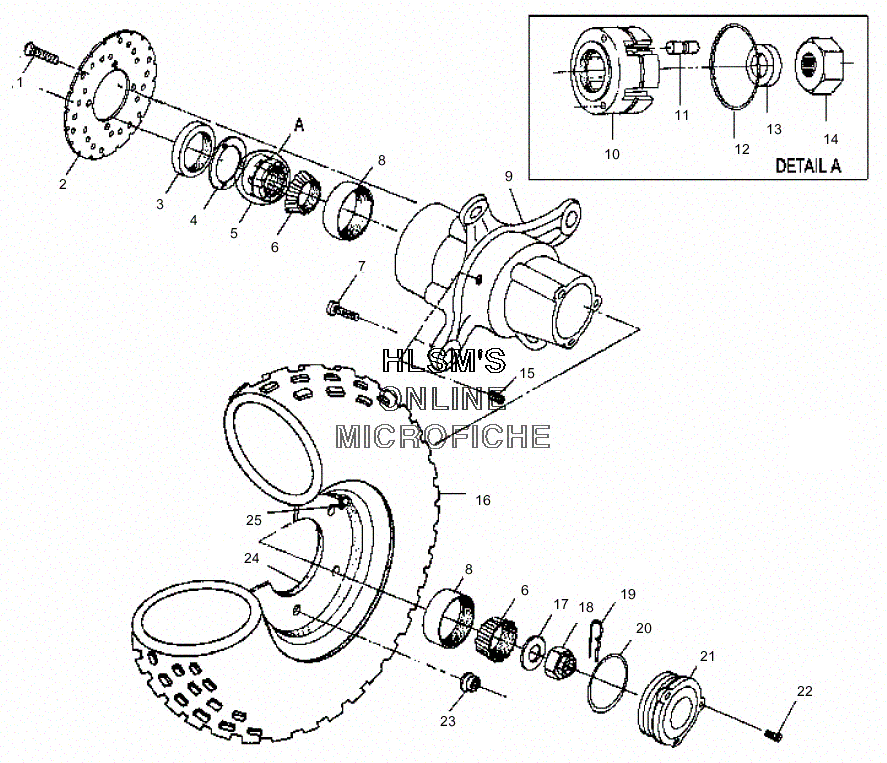

WHEEL - FRONT для Polaris XPLORER 4X4 (A02CG25CA) - 2002 года выпуска
-
№АртикулНазвание
-
17512325 BOLTBOLT
-
25243675 DISC-BRAKE,7.21 OD,.158DISC-BRAKE,7.21 OD,.158
-
33610019 SEAL, FR. HUBSEAL, FR. HUB
-
45211148 PLATE, ARMATUREPLATE, ARMATURE
-
51520281 CLUTCH,FR HUB E/MCLUTCH,FR HUB E/M
-
63554506 BRG,TAPER.ROLL.CONEBRG,TAPER.ROLL.CONE
-
77515523 STUDSTUD
-
83554507 BRG,TAPER,ROLL CUPBRG,TAPER,ROLL CUP
-
91520243 HUB ASM,SHRT(3-LOBE)W/BRG RACE (INCL. 3,7,8)HUB ASM,SHRT(3-LOBE)W/BRG RACE (INCL. 3,7,8)
-
103250028 CAGE, ROLLCAGE, ROLL
-
113250010 ROLLSROLLS
-
123250032 SPRING,GARTERSPRING,GARTER
-
131321814 SPACERSPACER
-
143250030 CAMCAM
-
157052045 PLUG,PIPEPLUG,PIPE
-
165411264 TIRE,23X7-10,TITAN (23X7-10)TIRE,23X7-10,TITAN (23X7-10)
-
177556004 WASHERWASHER
-
187542810 NUT, SLOTTEDNUT, SLOTTED
-
197661401 COTTER PINCOTTER PIN
-
205410470 O RINGO RING
-
215432611 CAP,HUB,3-LOBE,AWDCAP,HUB,3-LOBE,AWD
-
227512027 SCREW *SCREW *
-
237542459 NUT, FLANGEDNUT, FLANGED
-
241520175-117 RIM,FRT,(SILVER)RIM,FRT,(SILVER)
-
251525017 VALVE, RIMVALVE, RIM
