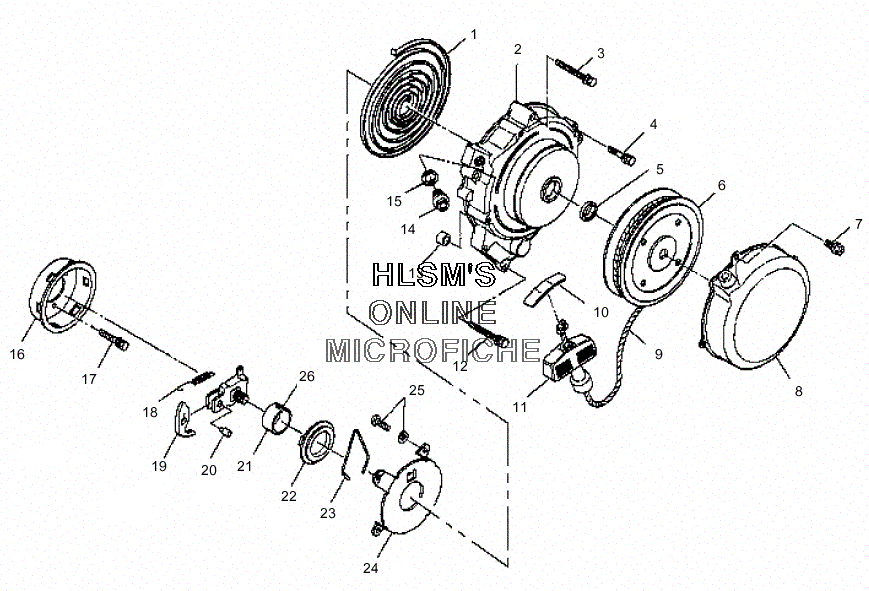

STARTER - RECOIL для Polaris XPLORER 4X4 (A02CG25CA) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    3083815 SPRING, SPIRAL
    SPRING, SPIRAL
  • 2
    3083924 STARTER,RECOIL,COMPL. * (INCL. 1,2,5-11,18-26)
    STARTER,RECOIL,COMPL. * (INCL. 1,2,5-11,18-26)
  • 2
    3083911 CASE,STARTER,B UNIT
    CASE,STARTER,B UNIT
  • 3
    3082030 BOLT
    BOLT
  • 4
    3082228 BOLTANDWASHER ASM.
    BOLTANDWASHER ASM.
  • 5
    3083817 GROMMET
    GROMMET
  • 6
    3083814 REEL, COMPL.
    REEL, COMPL.
  • 7
    3083826 BOLT, FLANGE
    BOLT, FLANGE
  • 8
    3083914 CASE,STARTER,COMPL.
    CASE,STARTER,COMPL.
  • 9
    3083828 ROPE (INCL. 9-11)
    ROPE (INCL. 9-11)
  • 9
    2870621 ROPE,100 FT,NYL.STARTER
    ROPE,100 FT,NYL.STARTER
  • 10
    3083660 CAP, KNOB
    CAP, KNOB
  • 11
    3083659 KNOB, STARTER
    KNOB, STARTER
  • 12
    3083729 BOLTANDWASHER
    BOLTANDWASHER
  • 13
    3083669 BUSHING, STARTER
    BUSHING, STARTER
  • 14
    3086749 PLUG
    PLUG
  • 15
    3082956 GASKET
    GASKET
  • 16
    3083915 PULLEY, STARTING
    PULLEY, STARTING
  • 17
    3081665 BOLT,
    BOLT,
  • 18
    3083827 SPRING, RETURN
    SPRING, RETURN
  • 19
    3083819 RATCHET
    RATCHET
  • 20
    3083820 PIN, RATCHET
    PIN, RATCHET
  • 21
    3083818 HOOK, SPRING
    HOOK, SPRING
  • 22
    3083821 GUIDE,RATCHET
    GUIDE,RATCHET
  • 23
    3083912 SPRING,FRICTION
    SPRING,FRICTION
  • 24
    3083925 CASE, SPRING
    CASE, SPRING
  • 25
    3084176 SCREW AND WASHER
    SCREW AND WASHER
  • 26
    3083913 GUIDE, COMPL. *
    GUIDE, COMPL. *
