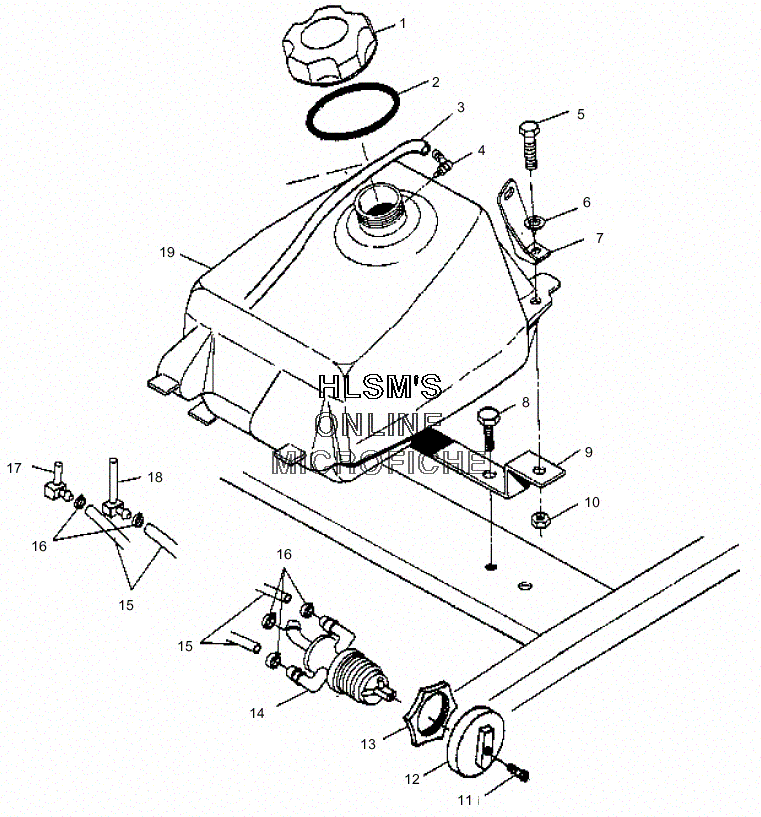

FUEL TANK для Polaris XPLORER 4X4 (A02CG25CA) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    5433687 CAP,GAS TANK (INCL. 2)
    CAP,GAS TANK (INCL. 2)
  • 2
    5812123 GASKET,GAS CAP
    GASKET,GAS CAP
  • 3
    8360009-600 FUEL LINE,1/8 ID,600 CM.
    FUEL LINE,1/8 ID,600 CM.
  • 4
    5431053 VENT, TANK
    VENT, TANK
  • 5
    7512310 SCREW
    SCREW
  • 6
    7555893 WASHER
    WASHER
  • 7
    5222154-067 BRKT,LH.R.FUELCOVER,BLK.
    BRKT,LH.R.FUELCOVER,BLK.
  • 7
    5222155-067 BRKT,RH.R.FUELCOVER,BLK.
    BRKT,RH.R.FUELCOVER,BLK.
  • 8
    7512208 SCREW
    SCREW
  • 9
    5220916-067 BRKT,R.TANK MT,BLK.
    BRKT,R.TANK MT,BLK.
  • 10
    7542324 NUT
    NUT
  • 11
    7517505 SCREW
    SCREW
  • 12
    5432559 KNOB,FUEL VALVE
    KNOB,FUEL VALVE
  • 13
    5432733 NUT,FUELVALVE,ATV
    NUT,FUELVALVE,ATV
  • 14
    7052154 VALVE,3-WAY,HORIZ PORTS
    VALVE,3-WAY,HORIZ PORTS
  • 15
    8450040-600 FUEL LINE,1/4 ID(600 CM.)
    FUEL LINE,1/4 ID(600 CM.)
  • 16
    7080003 CLAMP,HOSE
    CLAMP,HOSE
  • 17
    7052148 FITTING,FUEL OUT,90DEG,RES,Z
    FITTING,FUEL OUT,90DEG,RES,Z
  • 18
    7052147 ELBOW, MAIN
    ELBOW, MAIN
  • 19
    1240123 ASM-FUEL TANK (INCL. 4,18)
    ASM-FUEL TANK (INCL. 4,18)
