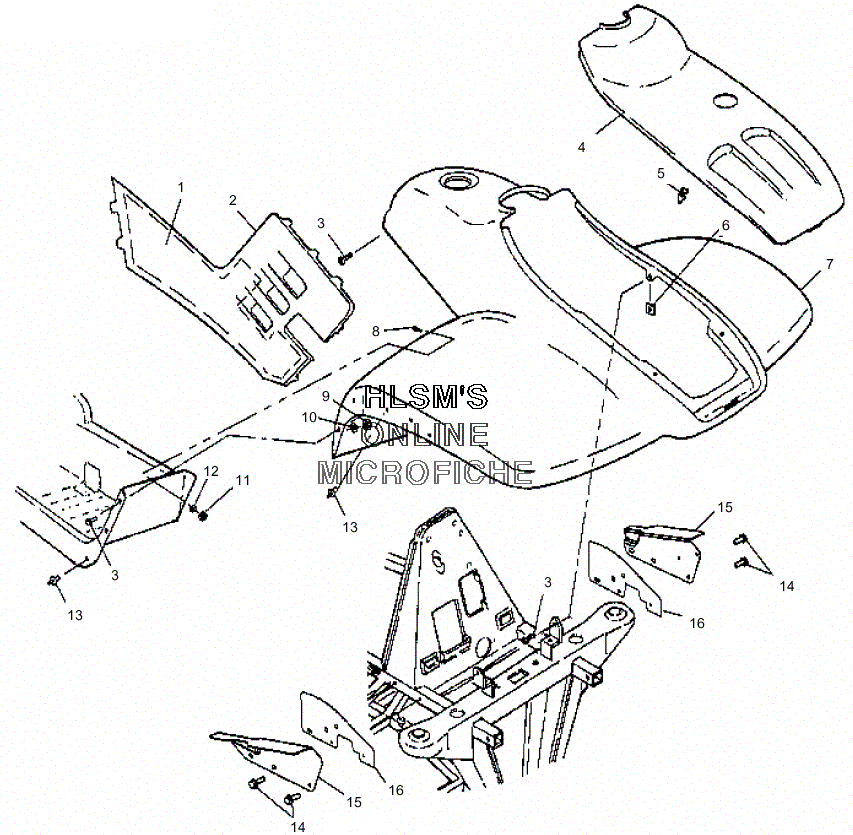

FENDER - FRONT W/ SIDE PANELS для Polaris XPLORER 4X4 (A02CG25CA) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    2632284-195 ASM-PANEL/FOAM,LH,EB GREEN
    ASM-PANEL/FOAM,LH,EB GREEN
  • 1
    5812138 FOAM-LH,PANEL
    FOAM-LH,PANEL
  • 1
    5811797 FOAM,PANEL,SIDE,LH
    FOAM,PANEL,SIDE,LH
  • 2
    2620085-195 PANEL/FOIL ASM,RH,EB GREEN
    PANEL/FOIL ASM,RH,EB GREEN
  • 2
    5810996 FOIL,FOAM,SIDEPANEL
    FOIL,FOAM,SIDEPANEL
  • 3
    7512232 BOLT
    BOLT
  • 4
    5431806-195 COVER,FR,E.B.GRN.
    COVER,FR,E.B.GRN.
  • 5
    7670085 CLIP,SPRING
    CLIP,SPRING
  • 6
    7670057 NUT, SPEED
    NUT, SPEED
  • 7
    2632303-195 CAB,FRONT,SVC,E.B. GREEN (INCL. WARNING DECALS)
    CAB,FRONT,SVC,E.B. GREEN (INCL. WARNING DECALS)
  • 8
    7512085 SCREW
    SCREW
  • 9
    7542122 NUT-LOCK
    NUT-LOCK
  • 10
    7555859 WASHER, FLAT
    WASHER, FLAT
  • 11
    7541925 NUT
    NUT
  • 12
    7555792 WASHER
    WASHER
  • 13
    7081040 RIVET-PLASTIC,R-LOCK,.197 DIA
    RIVET-PLASTIC,R-LOCK,.197 DIA
  • 14
    7670088 CLIP,PLASTIC DART,NYLON
    CLIP,PLASTIC DART,NYLON
  • 15
    5245394-067 SHIELD-SPLASH,LH,BLK
    SHIELD-SPLASH,LH,BLK
  • 15
    5245533-067 SHIELD-SPLASH,RH,BLK
    SHIELD-SPLASH,RH,BLK
  • 16
    5811917 SHIELD-DEFLECTOR
    SHIELD-DEFLECTOR
